42
Rotation determined opposite shaft end
Double shaft determined at lead end
Shaft length measured from hub
face to shaft end

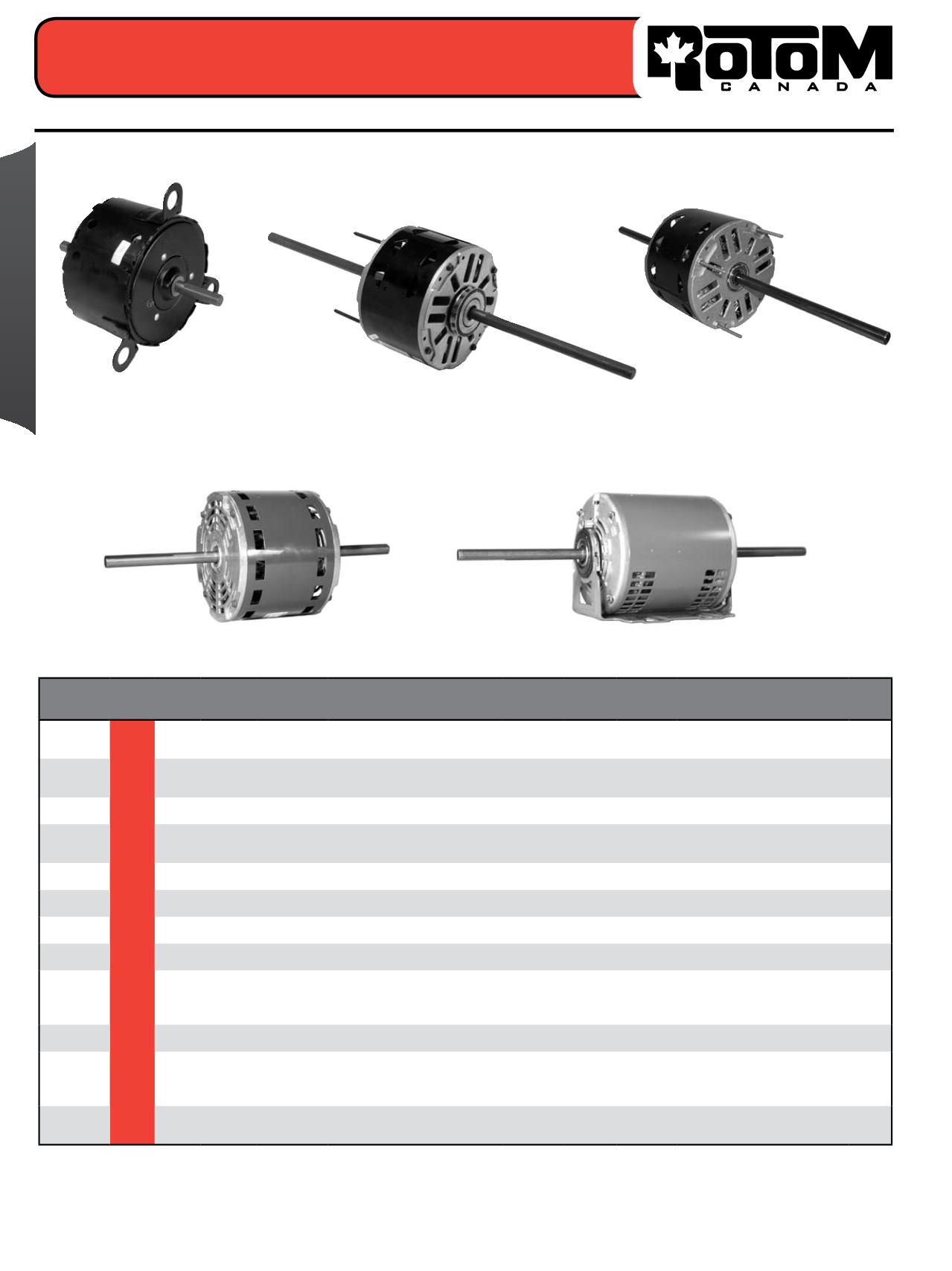

Motors
5.5" Motors
5.5" Motors
Double Shaft - 208/230 Volts
Sleeve & Ball Bearing - PSC & Shaded Pole - Open & Totally Enclosed.
Fig.2
R52118
R52100
R52113
R53676
R62171
Fig.4
R52430
Fig.5
R52170
Fig.3
R858
R881
R52150
Fig.1
R52639
R770
R52430
Part # HP Amps
Spd/
RPM
Rot
Body
Shaft
Cap Encl. Bearing
Comment
Fig.
R52100
1/8
1.00 3/1075 C.C.W. 4.00 7.8"x1/2"x8.5" 5/370
OPEN SLEEVE
U.E.100, FASCO D750,
MARATHON X057, X065
2
R52639
1/6
0.80 5/1075 C.C.W. 4.00 2.5"x1/2"x3.7" 4/370
T.E.
SLEEVE
CARRIER HC37CA230,
HC37CA700, HC37CB208
1
R858
1/6
0.90 3/1100 C.C.W. 3.70 3.0"x1/2"x4.3" 5/370
OPEN SLEEVE FASCO D858, U.E. 115
3
R52118
1/6
0.95 3/1075 C.C.W. 3.80 8.0"x1/2"x8.2" 5/370
OPEN SLEEVE
WJ94X504,50,54,47,162,
159,152, U.E.118, 438
2
R770
1/5
1.70 3/1040 C.W.
3.50 2.0"x1/2"x6.2" 3/370
T.E.
SLEEVE KEEPRITE 128575
1
R52113
1/4
1.50 3/1075 C.C.W. 4.11 7.5"x1/2"x8.0" 5/370
OPEN SLEEVE U.E. 113, 439, FASCO D766
2
R52430
1/4
1.50 3/1060 C.W.
4.50 4.1"x1/2"x4.7" 7.5/370
OPEN SLEEVE
McQUAY 24303
4
R53676
1/4
1.50 3/1075 C.C.W. 4.11 7.5"x1/2"x8.0" 5/370
OPEN SLEEVE NO MOUNTING KIT
2
R62171
1/4
1.80 3/1625 C.C.W. 4.30 7.5"x1/2"x8.0" 5/370
OPEN SLEEVE
FASCO D774, D775, D896,
U.E.171,
MARATHON X040, X059
2
R52150
1/4
2.00 3/1025 C.W.
4.30 4.5"x1/2"x4.2" 7.5/370
OPEN SLEEVE SINGER 02024246
3
R52170
1/4
2.10 1/1725 REV 7.00 5.5"x1/2"x5.5" SP
O.D.
SLEEVE
CHROMALOX 07589,
GE 7J399GX,
MARATHON 48S17D1240
5
R881
1/4
2.20 3/1075 C.C.W. 3.87 2.5"x1/2"x4.1" 5/370
OPEN SLEEVE
FEDDERS S196582,
FASCO D881, U.E.180, 181
3
Motors continued next page
