Submersible Non-Clog Pumps
27
C
Professional Plumbing
Testing is performed with
water specific gravity of 1.0
@ 68˚F (20˚C), other fluids
may vary performance

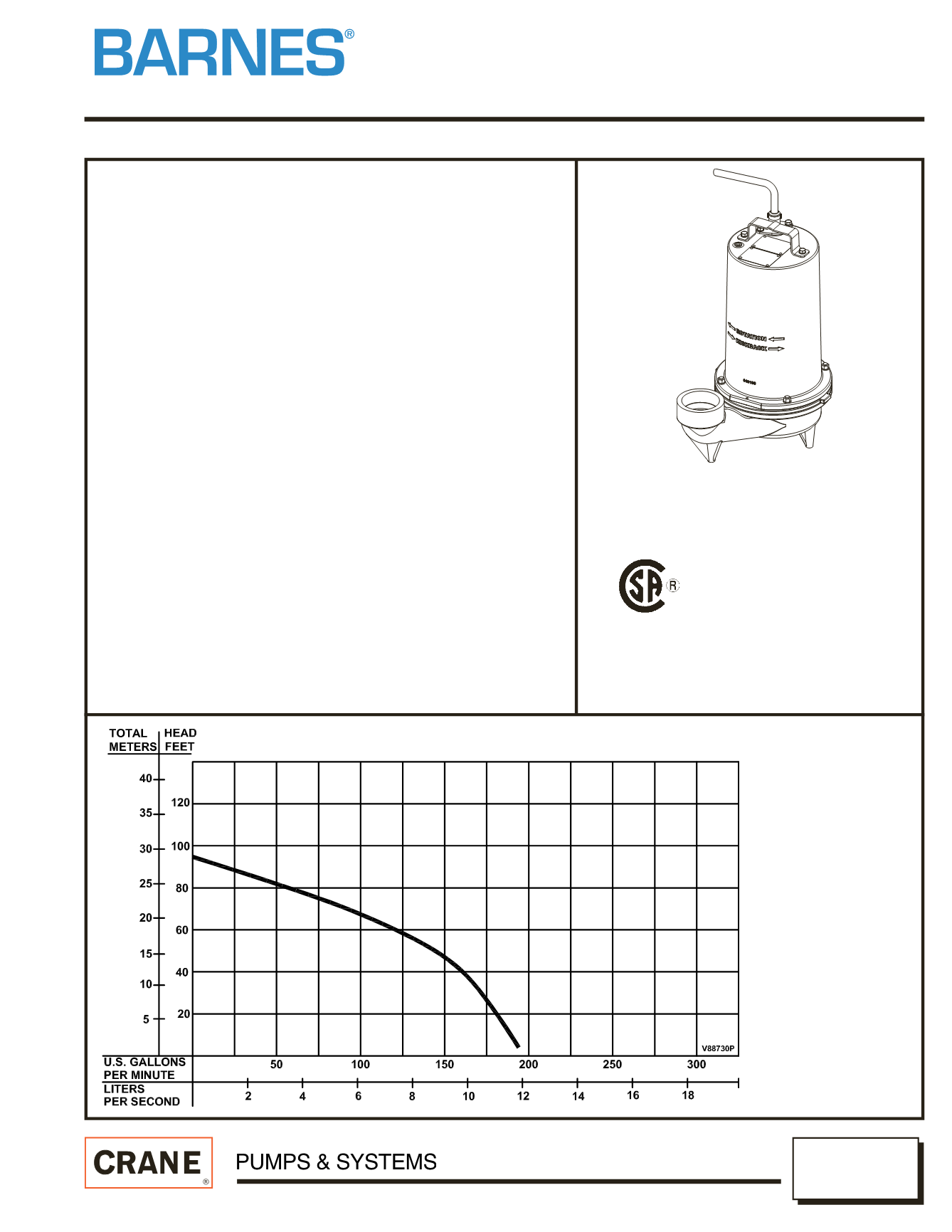

Series 3SE-L
1½" Spherical Solids Handling
Single Seal
Series: 3SE-L
3HP, 3450RPM, 60Hz
DISCHARGE ...................................
3” NPT, Female, Vertical
LIQUID TEMPERATURE ................
104°F (40°C) Continuous
VOLUTE.............................................
Cast Iron ASTM A-48, Class 30
MOTOR HOUSING ............................
Cast Iron ASTM A-48, Class 30
SEAL PLATE ....................................
Cast Iron, Class 30
IMPELLER:
Design
......................
2 Vane, Semi-open with pump out vanes on
back side. Dynamically balanced, ISO G6.3
Material
.....................
Cast Iron, Class 30
SHAFT
..............................................
416 Stainless Steel
SQUARE RINGS................................
Buna-N
HARDWARE ......................................
300 Series Stainless Steel
PAINT .................................................
Air Dry Enamel
SEAL:
Design
.......................
Single Mechanical, Oil filled reservoir
Material
......................
Carbon/Ceramic/Buna-N
Hardware - 300 Series Stainless
CORD ENTRY....................................
30 ft. (9.1m) Cord. Quick Connect custom
molded for sealing and strain relief.
With Optional Temperature Sensor, Epoxy
sealed housing with secondary pressure
grommet for sealing and strain relief.
UPPER BEARING..............................
Single Row, Ball, Oil lubricated
LOWER BEARING.............................
Single Row, Ball, Oil lubricated
MOTOR:
Design
.......................
NEMA B -Three phase Torque Curve,
Oil Filled, Squirrel Cage Induction
Insulation
....................
Class B
THREE PHASE..................................
230/460 is Dual Voltage. 575. Requires overload
Protection to be included in control panel
OPTIONAL EQUIPMENT ................
Seal Material, Impeller Trims, Additional cord,
Normally Closed Temperature Sensors with
cord for 3 phase pumps (Requires relay in
control panel).
ACCESSORIES .................................
Break Away Fitting (BAF)
Check Valve
Control Panel
DESCRIPTION:
SUBMERSIBLE NON-CLOG SEWAGE PUMP DESIGNED
FOR TYPICAL RAW SEWAGE APPLICATIONS
7/12
CSA 108 - File No. L16567
