SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Panels & Controls
1
E
Professional Plumbing

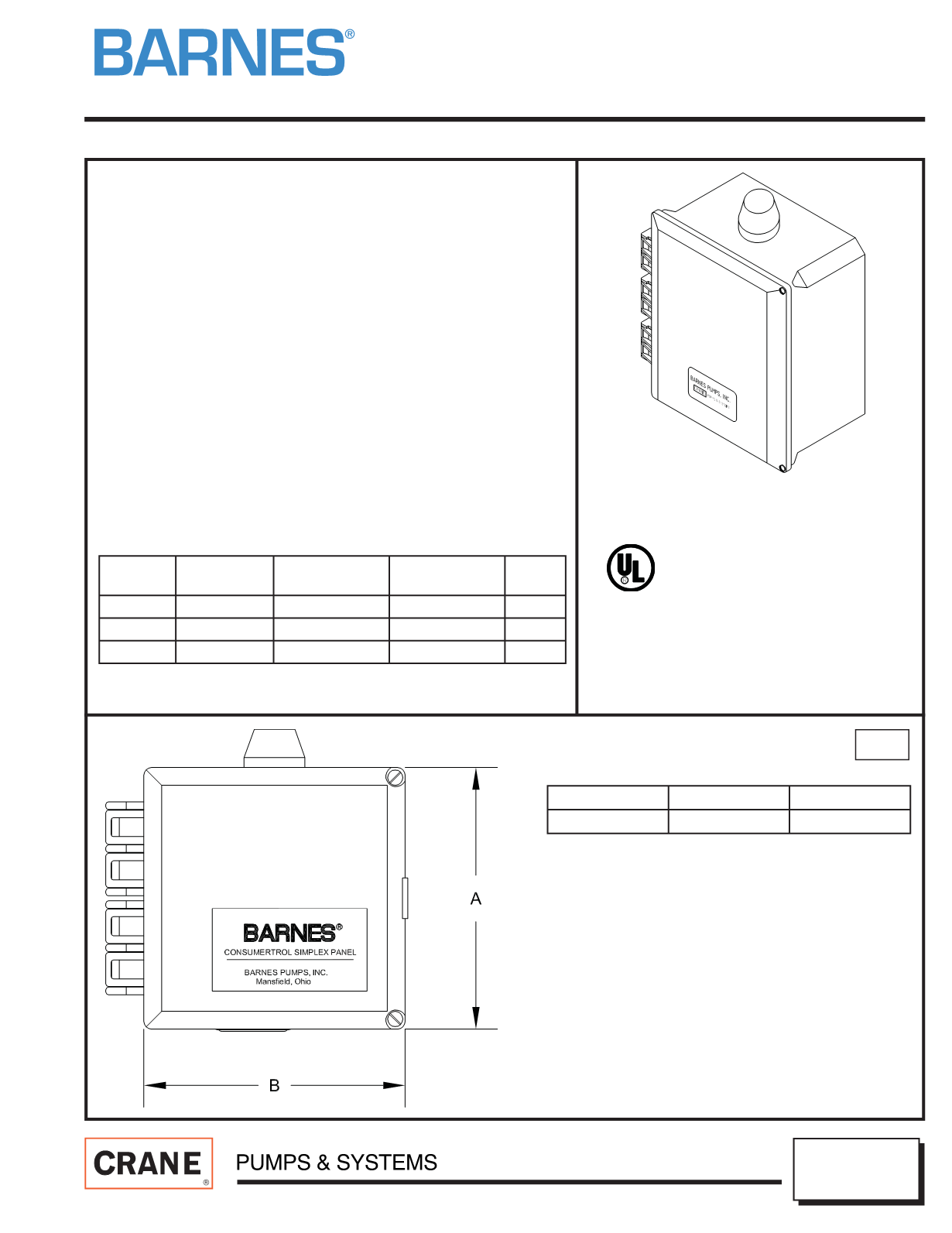

CONTROL PANELS
Single Phase, Simplex
120/208/240 VAC
The Simplex controls are supplied in a NEMA 4X weathertight
thermoplastic enclosure with removable mounting flanges for in-
door/outdoor mounting.
Each will contain a two pole, amperage rated magnetic motor
contactor for pump control and a circuit breaker for pump
disconnects and branch circuit protection. A hand-off-automatic
switch is provided for manual operation of the pump. Pump run,
control power, and alarm power indicators are provided with
separate control and alarm fuses.
Terminal blocks are provided for customer connection of power,
pump leads, and level switches or other pilot controls.
The Alarm package includes a top mounted, red beacon for 360°
visual checks and a horn for audio warning of alarm conditions. A
test-normal-silence switch is provided for testing of the alarm and
silencing of the horn. A horn silence relay automatically resets the
alarm horn after alarm condition has been resolved.
PART
NO.
PUMP FULL
LOAD AMPS
CIRCUIT
BREAKER
CONTACTOR PH
106480
0 - 7
2 Pole, 15 Amp 2 Pole, 20 Amp
1
106481
7 - 15 2 Pole, 20 Amp 2 Pole, 20 Amp
1
106482
15 - 20 2 Pole, 30 Amp 2 Pole, 30 Amp
1
Series: Simplex
P/N: 106480 thru 106482
4/04
inches
(mm)
LISTED
C US
A - Height
B - Width
C - Depth
8 (203)
8 (203)
4 (102)
