Panels & Controls
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
8
E
Professional Plumbing
ALARM
NEMA 1 - Indoor
120 Volt
8/09

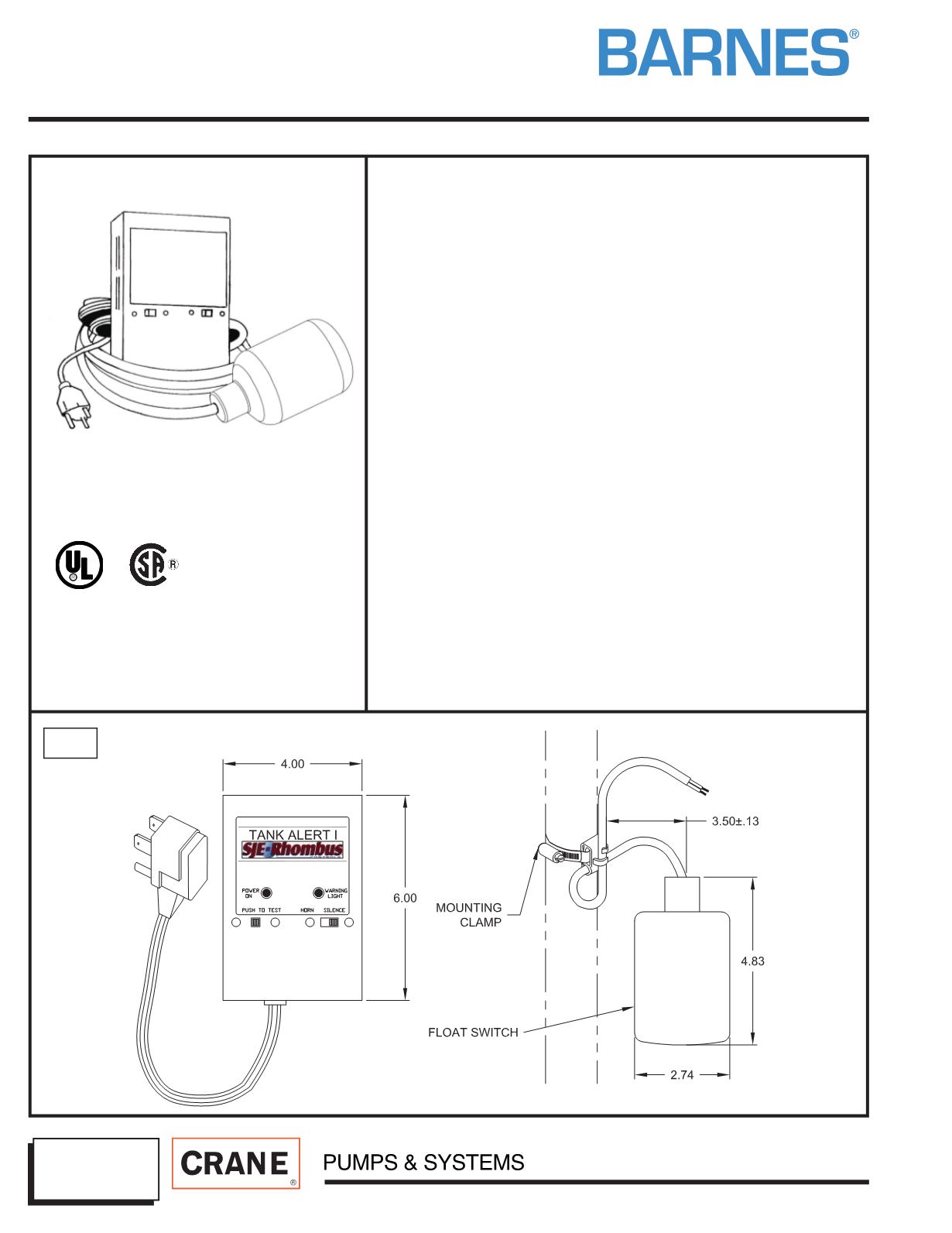

inches
(mm)
P/N: 126306
VOLTAGE.....................
Primary 120V, 50/60Hz with 6 ft. line cord.
WATTS .........................
4.8 Watts Alarm Condition.
ENCLOSURE...............
NEMA 1 metal enclosure with knock outs.
ALARM SWITCH CONNECTION TERMINAL:
Low voltage class 2 wiring.
ALARM HORN.............
86db (A) at 10ft.(3M)
ALARM FLOAT............
High impact resistant PVC Housing,
Mechanical tilt switch hermetically sealed
with 15ft. (5m) 18/2 SJOW water resistant
neoprene (CPE) cord with pipe clamp.
TEMPERATURE RATING:
140°F (60°C)
This Alarm System includes a NEMA 1 panel with red warning light,
a green “power on” light, a push-to-test alarm button and a horn
silence switch.
The liquid level alarm system is designed specifically for lift pump
chambers and sump pump basins. The float switch is lowered into
the tank and secured at the desired alarm level. When the liquid
rises (high level alarm) or lowers (low level alarm), the float tips and
activates a loud horn on the alarm panel. In addition, a red, solid-
state warning light is activated. The horn can be turned off, but the
warning light will remain on until the condition is remedied. An added
green “power on” light assures that there is power to the alarm panel.
