SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Panels & Controls
3
E
Professional Plumbing
4/04

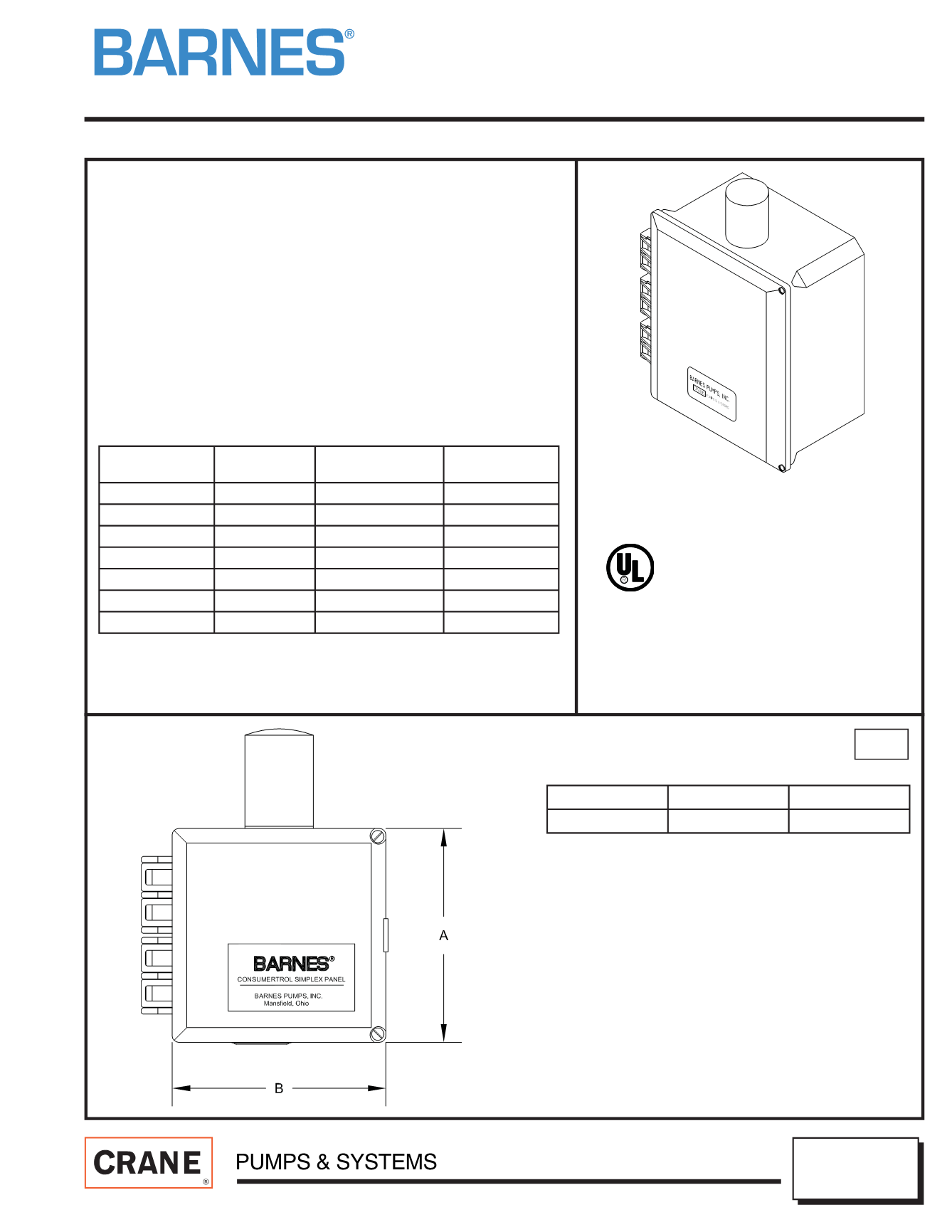

CONTROL PANELS
Three Phase, Simplex
208/240/480 VAC
Series: Simplex
P/N: 106486 thru 106497
inches
(mm)
LISTED
C US
A - Height
B - Width
C - Depth
12 (305)
10 (254)
6 (152)
The Simplex controls are supplied in a NEMA 4X weathertight
thermoplastic enclosure with removable flanges for indoor/outdoor
mounting. Each will contain a three pole, amperage rated magnetic motor
contactor for pump control and a motor protection switch that provides for
adjustable overload, built-in circuit breaker, and pump disconnect. A
multi-tap transformer for 208/240/480 VAC provides 120V control/alarm
voltage. A hand-off-automatic switch is provided for manual operation of
the pump. Pump run, control power, and alarm power indicators are
provided with separate control and alarm fuses. Terminal blocks are
provided for customer connection of power, pump leads, and level
switches or other pilot controls.The Alarm package includes a top mounted
red beacon for 360° visual checks and a horn for audio warning of alarm
conditions. A test-normal-silence switch is provided for testing of the alarm
and silencing of the horn. A horn silence relay automatically resets the
alarm horn after alarm condition has been resolved.
PART NO.
PUMP FULL
LOAD AMPS
CIRCUIT
BREAKER
CONTACTOR
106486
1 - 1.6
Intregal w/Protector
17 AMP
106488
1.6 - 2.5
Intregal w/Protector
17 AMP
106490
2.5 - 4.0
Intregal w/Protector
17 AMP
106492
4.0 - 6.3
Intregal w/Protector
17 AMP
106494
6 - 10
Intregal w/Protector
17 AMP
106495
9 - 14
Intregal w/Protector
17 AMP
106497
13 - 18
Intregal w/Protector
25 AMP
