230 Volt
P/N: 090270
Specifications:
CORD:
Material
.........
14-2 SJOW, 41 Strand x #30, 90°C Dry,
60°C Wet
Size
...............
.37 (8mm) Dia. x (See Chart for Lenght)
HOUSING:
Material
.........
Polypropylene
Color
..............
Normally Open - Black
CLAMP..................................
Pipe Mounted, Stainless Steel with
Polypropylene Saddle, 1" (25) to 3" (76)
TEMPERATURE RATING.....
200°F (93°C)
SWITCH ................................
Mechanical, Snap Action
SWITCH RATING..................
15 Amps @ 115 Volts AC, 1 Phase
15 Amps @ 230 Volts AC, 1 Phase
Description:

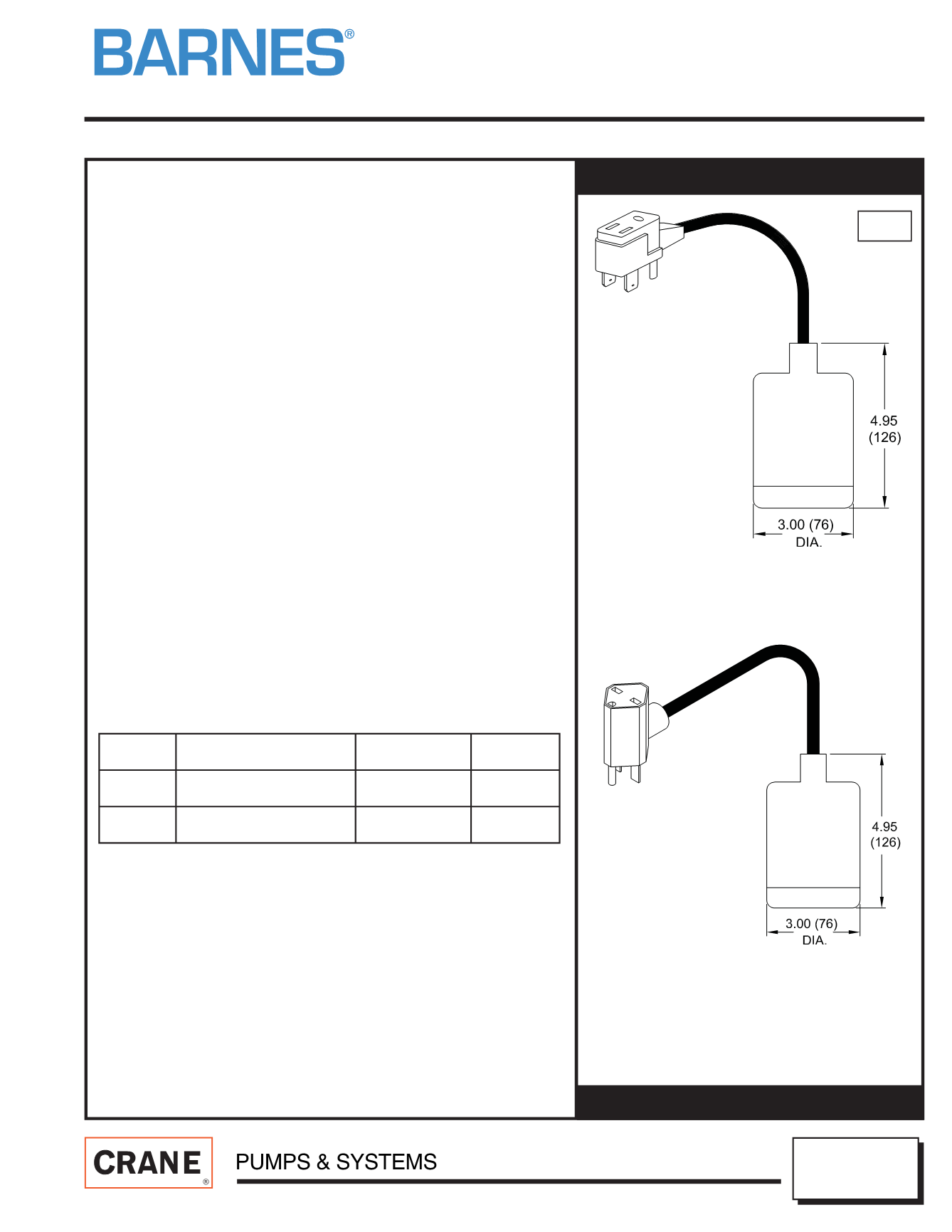

Part Number 090269 and 090270 Level Controls are available in Pipe
Mounted Configuration with a 115 volt molded on Male and Female Piggy-
Back Plug w/Ground on the 090269 and a 230 volt molded on plug on
090270. Cable lengths are of 15 (5M), 25 (8M), 30 (9M) and 50 feet (15M).
The unit has a piggy-back plug attached to the cord, allowing the user to
plug the pump plug directly into it, and then plug the entire unit into a 115
volt or 230 volt grounded outlet. The Wide Angle Level Control is furnished
with an adjustable strap for mounting to the pump discharge pipe. Standard
units are preset at the factory, but can easily be adjusted to various pump
down cycles by shortening or lengthening the cord length at the pivot point.
The Mechanical level control is a direct acting switch, it uses a metal
cylinder sliding back and forth in a tube to actuate a snap-action switch.
PART
NUMBER
CORD
LENGHT
TYPE
INSTALLATION
CONTACTS
090269 15 ft. (5m), 25 (8m), 30 (9m)
& 50 ft. (15m)
Pipe Mounted
115 Volt
Open
090270 15 ft. (5m), 25 (8m), 30 (9m)
& 50 ft. (15m)
Pipe Mounted
230 Volt
Open
STATE CORD LENGTH AT TIME OF ORDERING
.
115 Volt
P/N: 090269
Mechanical, High Temperature, Wide Angle,
Pipe Mounted, 115 & 230 Volt w/Piggy-Back Plug
Level Controls
inches
(mm)
