Panels & Controls
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
12
E
Professional Plumbing
7/04

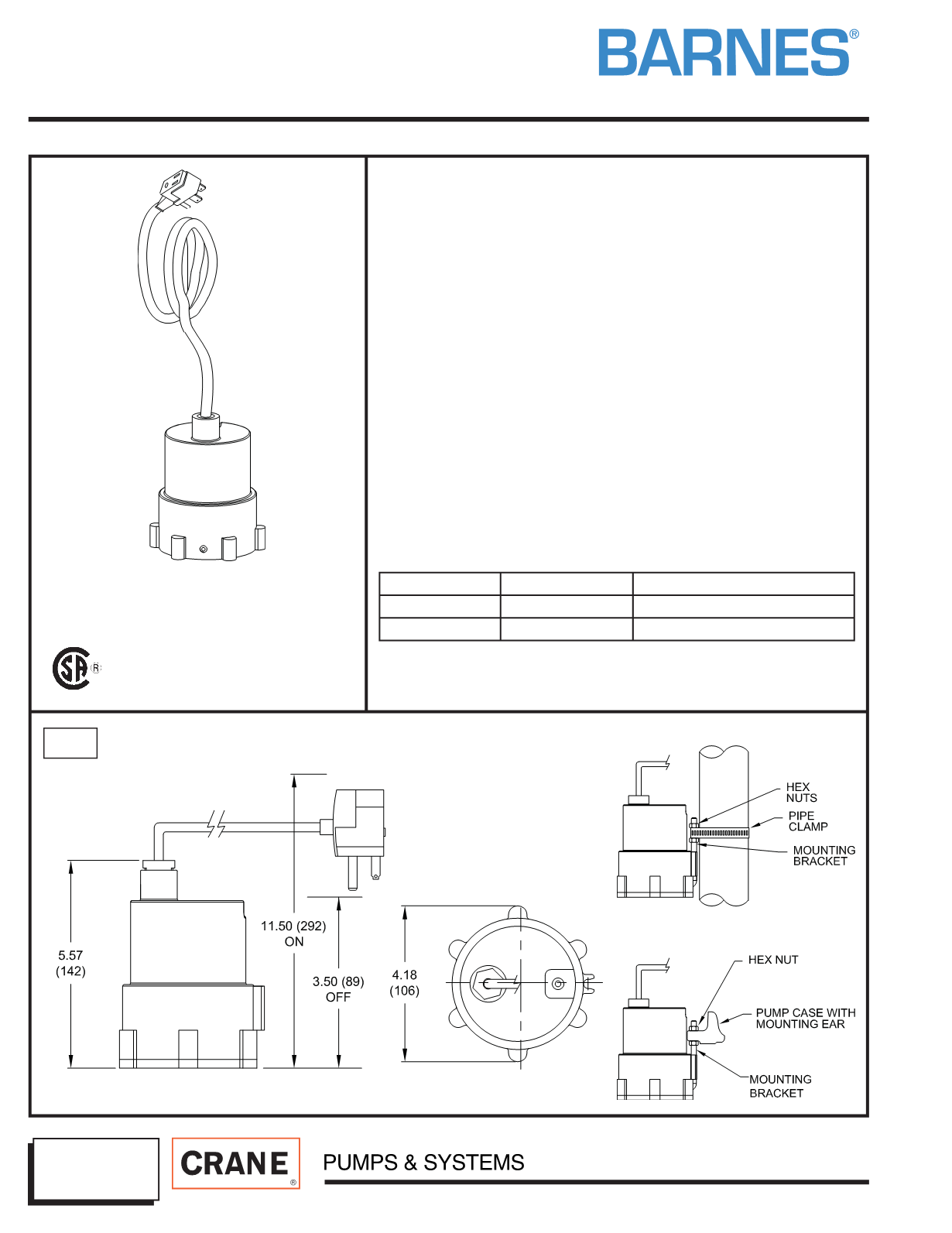

LEVEL CONTROL
Diaphragm
P/N: 116670
115360A
CORD:
Material
.........
16-2 SJTW, Nylon with .12 Dia. Vent
Size
...............
.38 Dia.(9.7mm)
PLUG....................................
Male & Female (Piggy-Back), with
Vent and Ground.
HOUSING.............................
Black, Molded Polypropylene
SWITCH RETAINER ............
Polypropylene
CLAMP.................................
1. Clip, Stainless Steel (Pump Mtg.)
2. Bracket, Stainless Steel (Pump Mtg.)
3. Adjustable Clamp, 1-3/4 (45mm)
to 5” (127mm)(Pipe Mtg.)
HARDWARE ........................
Stainless Steel
SWITCH DIAPHRAGM ........
Oil Resistant Buna-N
SWITCH ...............................
Snap Action, Normally Open
SWITCH RATING.................
10.5 Amp @ 120 Volt AC
Diaphragm Switches are Pressure operated that turn on at 11.50” (292.1mm)
head (from bottom of housing) and off at 3.50” (88.9mm) head. For mounting
on pumps with and without mounting ears and pipe mounted.
FOR USE ON:
Discharge pipe or pump mounted on units
with FLA less than 10.5 @ 120 Volts AC
PART NUMBER CORD LENGTH
WHERE USED
116670
15 FT. (4.6m)
BP314, SEV412, EHV412*
115360A
10 Ft. (3m)
SP Pump Series
inches
(mm)
C US
PIPE MOUNTED
PUMP MOUNTED
