Suction Accumulators
The Complete Line For Exact Selection!
Air conditioning, heat pump and many other applications require
intermittent operation of the refrigeration compressor. Especially in
remote applications, the suction line may trap or hold large quantities
of liquid which are suddenly dumped into the compressor upon start-
up. This is frequently the cause of broken valves, pistons, snapped or
bent connecting rods, blown gaskets and bearing washout.
Installation of a Suction Accumulator in the suction line just before the
compressor eliminates damage from a sudden surge of refrigerant
and/or oil during the start-up process.
Features
• Inlet deflector permits tangential entry of fluid.
• Inlet marked with metal plate to prevent error in hook-up.
• 4" to 6" diameters are complete with fusible plug and installed to comply
with UL & cUL.
• Copper nipples are standard on vertical UL and cUL models
• Controlled hydrogen copper brazing process provides ultimate in
cleanliness and uniform strength.
Horizontal
48-3826
48-3831
48-3836
48-3810
48-3838
48-3839
Vertical
48-3639
48-3641
48-3640
Vertical
48-3680 48-3816 48-3670
48-3684 48-3817 48-3732
48-3685 48-3701 48-3734
48-3689 48-3702 48-3827
48-3690 48-3703 48-3732
48-3691 48-3738 48-3736
48-3698 48-3700 48-3837
48-3731 48-3706 48-3737
48-3733 48-3704 48-3743
48-3707 48-3832 48-3708
Mounting Brackets
Mounting brackets designed to
hold horizontal accumulators
securely in position.
Part #
Description
48-RR7187
8 5/8" diameter
48-RR7188
10 3/4" diameter
To Compressor
From Coil
Patented
Inlet
Deflector
Will Not
Trap Oil
Protects
The
Compressor
Secure, stable base mounting. Stud
copper brazed in addition to spot weld.
"Leek Pruf"
Fusible plug
Installed, tested and remote
from line connections.
Metering
Orifice
Horizontal
48-3841
48-3840
48-3873
48-3874
48-3841

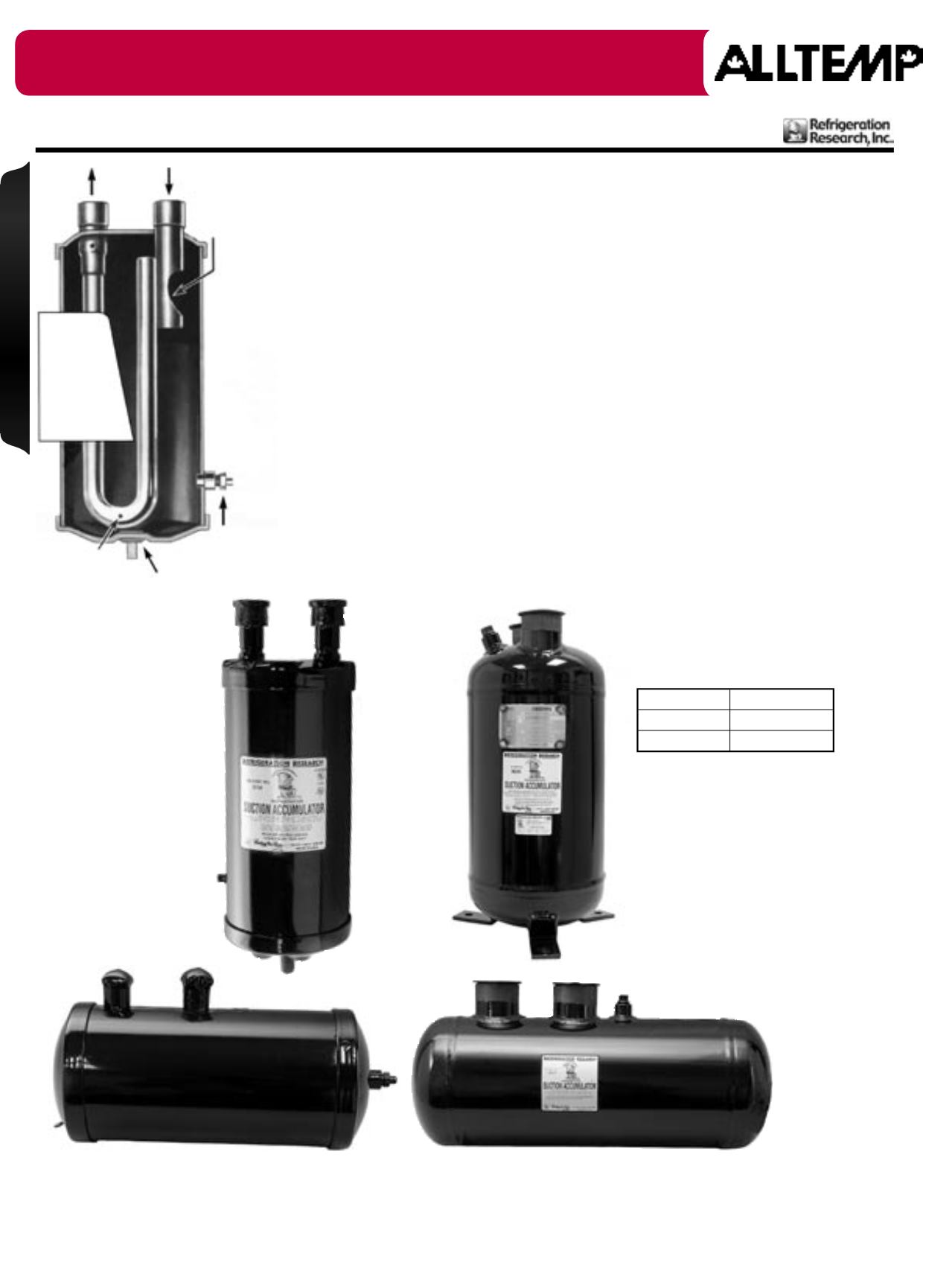

Illustrated
48-3639
Illustrated
48-3738
Illustrated
48-3826
Illustrated
Suction Accumulators
