45
Refrigeration

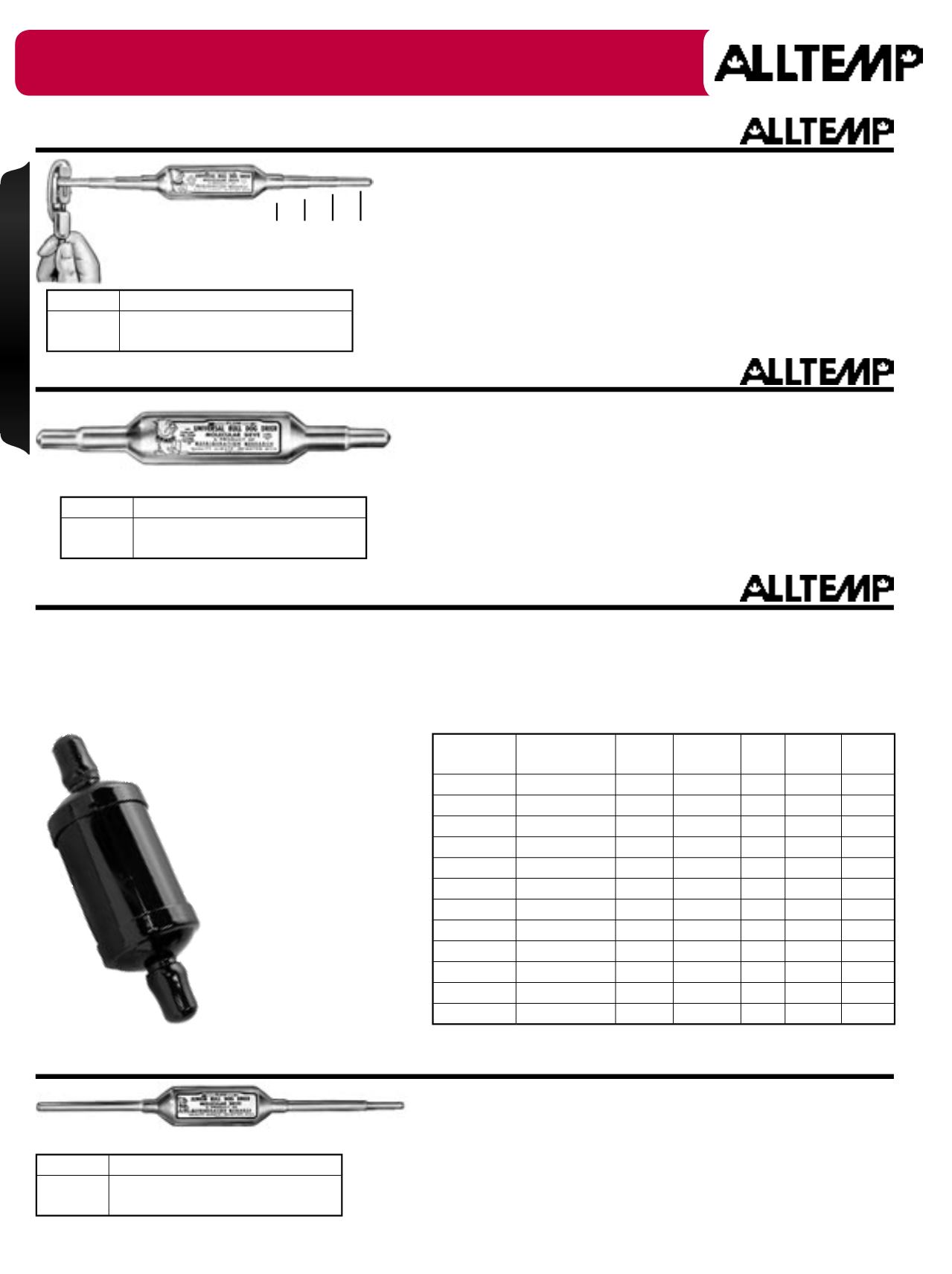

Universal Drier - Deluxe
Filter - Driers
Driers
• XH-9 desiccant - recommended by desiccant manufacturers for all
refrigerants and lubricants.
• Hermetically sealed to stay dry indefinitely - No plastic caps.
• For 5/16", 1/4" or 3/16" OD tubing cut the connector attached to the
drier at the correct place as indicated.
• For 3/8" ID simply unsolder & remove the adapter from the drier.
• For capillary sizes cut the 3/16 ID tube where indicated, then pinch
tube down to fit the particular size of capillary.
• For sizes up through 1 HP - Drier is 1" OD and has overall length of 9".
Driers
A large cylindrical inlet screen held by a strong spring keeps the desiccant securely in place. The inlet screens
design allows some dirt particles through to become trapped in the maze of tightly held desiccant. This enables the
drier to collect considerably more dirt than one which collects dirt only on a surface. All of the volume of desiccant
in this drier is used efficiently to dry and clean the system since no binder is used as in the case of a molded block
drier. These driers are exceptionally high in acid removal capacity.
Part #
Description
47-2933
• For systems through 1 Hp.
• 3/16", 1/4", 5/16", 3/8" connections.
Universal Drier - Exclusive
Driers
• XH-9 desiccant - recommended by desiccant manufacturers for all
refrigerants and lubricants.
• Contains high capacity molecular sieve desiccant.
• Economic drier solution.
• Hermetically sealed to stay dry indefinitely - No plastic caps.
• One piece copper design.
• Cut tube for 3/8" or 1/4" diameter, form capillary sizes with pliers.
• Basket outlet provides large area resulting in smaller pressure drop.
Part #
Description
47-3068
• For systems through 1 Hp.
• 3/8", 1/4" & capillary connections.
Part #
Std Fittings
Part #
Sweat Fittings
Flare
Fittings
Nominal
Tons
Shell
O.D.
Overall
Length
Weight
(lbs.)
47-T-032 47-T-032S
1/4"
1/4 to 1 2" 4 7/16"
0.8
47-T-033 47-T-033S
3/8"
1/4 to 1 2"
4 5/8"
0.8
47-T-052 47-T-052S
1/4"
1/3 to 2 2"
5"
1.0
47-T-053 47-T-053S
3/8"
1/3 to 2 2"
5 1/8"
1.0
47-T-083 47-T-083S
3/8"
1 to 4 2"
5 7/ 8"
1.2
47-T-084 47-T-084S
1/2"
1 to 4 2"
6 1/4"
1.21
47-T-163 47-T-163S
3/8"
2 to 5 2 1⁄2" 6 1/2"
1.57
47-T-164 47-T-164S
1/2"
2 to 5 2 1⁄2" 6 7/8"
1.58
47-T-304 47-T-304S
1/2"
3 to 7 1⁄2 2 1⁄2" 9 7/8"
2.3
47-T-305 47-T-305S
5/8"
3 to 7 1⁄2 2 1⁄2"
10"
2.31
47-T-414 47-T-414S
1/2"
5 to 10 3"
10"
3.2
47-T-415 47-T-415S
5/8"
5 to 10 3" 10 1/8"
3.2
Note
: For driers with sweat fitting connections simply add "S" to the standard catalogue part
number. • UL & cUL listed (File # 2401)
• The advantages of
a mixed desiccant
drier without the usual
disadvantages of either
a molded block drier or a
loose desiccant drier.
• In-depth filtration.
• XH-9 desiccant -
recommended by
desiccantmanufacturers
for all refrigerants and
lubricants.
• Provide interchange
ability with other driers for
convenience.
Filter - "Junior" Driers
Driers
• XH-9 desiccant - recommended by desiccantmanufacturers for all
refrigerants and lubricants.
• Permanently sealed against moisture for storage.
• Diameter is one inch and over length is nine inches.
• 1/4" tube at each end may be cut off, formed or sized as required.
• Large basket type outlet strainer is provided.
Part #
Description
47-2948
• For systems through 3⁄4 Hp.
• 1/4" - cut & form to fit design.
47-T-083
Illustrated
3/16"
1/4"
5/16"
3/8"
47-2948
Illustrated
47-3068
Illustrated
47-2933
Illustrated
Driers
