Butt’s Pumps and Motors - page 1030

25 Refrigeration www.alltemp.ca
Performance Capacity
High & Low Temperature Units 120 & 208/230V / 60Hz / 1 Ph
Condensing Unit
Part # HP Volt Appl. BTU / Hour
-20°F -10°F 0°F +5°F +10°F +20°F +30°F +45°F +50°F
59-UP016MASA 1/8 120 L/HBP 260 402 550 635 693 912 1147 1575 1699
59-UP020MASA 1/6 120 L/HBP 361 539 689 810 896 1160 1457 2004 2163
59-UF031MASA 1/4 120 L/HBP 630 915 1115 1267 1395 1756 2190 2978 3206
59-UF031MAMB 1/4 120 L/HBP 630 915 1115 1267 1427 1795 2260 3271 3524
59-UF042MAMA 1/3 120 L/HBP 1010 1350 1604 1787 2040 2410 2970 3981 4237
59-UF042MAMB 1/3 120 L/HBP 1010 1350 1604 1787 2040 2410 2970 3981 4237
59-UT6213A 1/2 120 M/HBP - - - - 3000 3600 4275 5400 5675
59-UT6215A 1/2+ 120 M/HBP - - - - 3050 3750 4700 5800 6258
59-UJ6220A1 3/4 120 M/HBP - - - - 4750 5900 7100 10177 10019
59-UJ6220A 3/4 208/230 M/HBP - - - - 4750 5900 7100 10177 10019
59-UJ6226A 1 208/230 M/HBP - - - - 6000 7250 8800 11500 13812
Technical Specifications
High & Low Temperature Units 120 & 208/230V / 60Hz / 1 Ph
Condensing Unit
Part # HP Volt Appl.
LBP
Amps
(-10°F)
HBP
Amps
(+45°F)
LRA
Connections Dimensions
Weight
Liq. Suct. L W H
59-UP016MASA 1/8 120 L/HBP 2.20 2.93 20 3/8" 3/8" 13.24" 10.88" 9.70" 31.0 lbs.
59-UP020MASA 1/6 120 L/HBP 2.25 4.13 35 3/8" 3/8" 12.59" 10.49" 9.41" 32.0 lbs.
59-UF031MASA 1/4 120 L/HBP 4.10 5.70 32 3/8" 3/8" 12.75" 10.49" 9.49" 36.0 lbs.
59-UF031MAMB 1/4 120 L/HBP 4.10 5.70 32 1/4" 3/8" 17.10" 10.75" 9.43" 40.0 lbs.
59-UF042MAMA 1/3 120 L/HBP 4.60 6.90 48 1/4" 3/8" 17.10" 10.75" 9.43" 40.0 lbs.
59-UF042MAMB 1/3 120 L/HBP 4.60 6.90 48 1/4" 3/8" 17.10" 10.75" 9.43" 41.0 lbs.
59-UT6213A 1/2 120 M/HBP - 9.05 36 1/4" 3/8" 19.10" 14.06" 12.37" 55.1 lbs.
59-UT6215A 1/2+ 120 M/HBP - 9.05 45 1/4" 1/2" 19.10" 14.06" 12.37" 56.2 lbs.
59-UJ6220A1 3/4 120 M/HBP - 13.67 72 1/4" 1/2" 18.78 16.30 12.76 73.6 lbs.
59-UJ6220A 3/4 208/230 M/HBP - 13.67 72 3/8" 1/2" 19.47" 16.90" 13.22" 73.8 lbs.
59-UJ6226A 1 208/230 M/HBP - 17.13 40 3/8" 5/8" 19.47" 16.90" 13.22" 78.2 lbs.
R12 & R414b Air Cooled Condensing Units

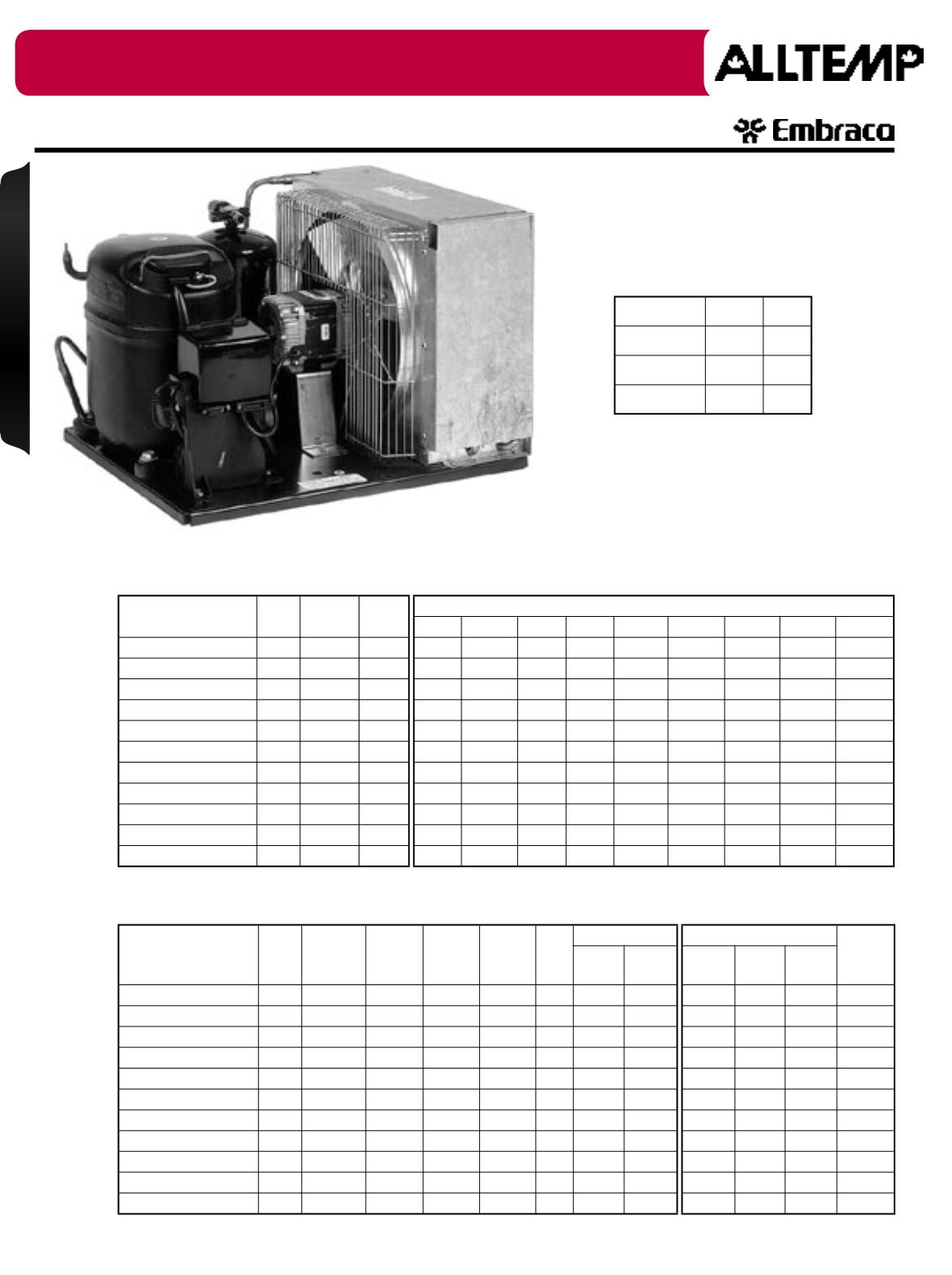

59-UJ6226A
Illustrated
BTU Rating Conditions
Temperature LBP HBP
Ambient 90°F 90°F
Sub Cooling 5°F 5°F
Return Gas 40°F 65°F
Condensing Units
