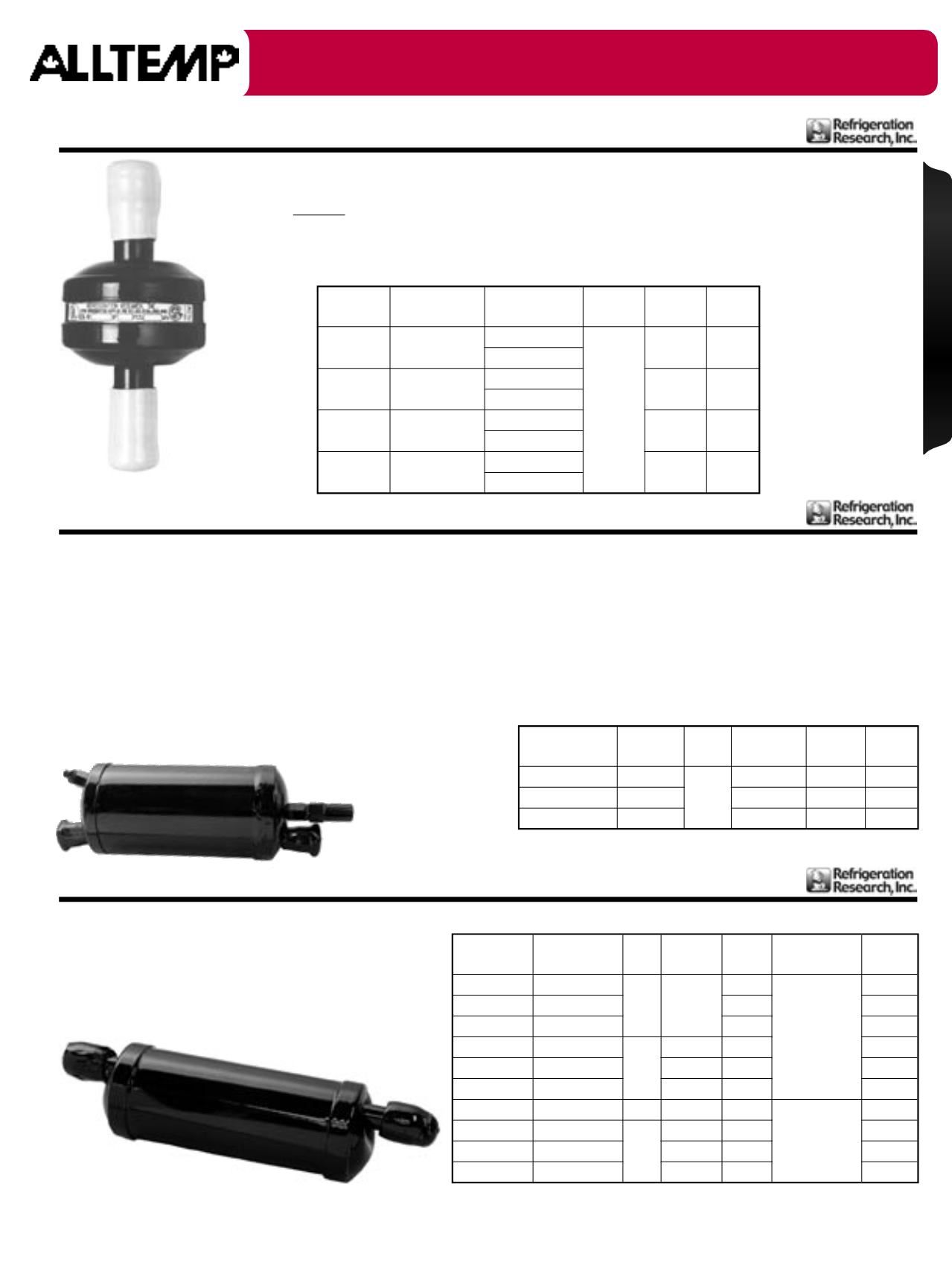

44
Refrigeration
Discharge Muffler
• Reduces noise due to vibration & pulsation
of gas through the discharge line.
• Made from hydrogen copper brazed steel
ensuring maximum strength & complete
cleanliness
• Horizontal or vertical mounting.
Adjustable Mufflers
Features
• Popular and exclusive technology.
• Allows the changing of muffler
characteristics without installing a different
muffler or breaking into the system.
• Muffler is adjustable without losing charge
and while the system is in operation.
• Provides a variable range of muffler
characteristics so that the best performance
with a particular system can be attained.
• Horizontal or vertical mounting.
Permits "Tuning" Muffler To The system.
The adjustable muffler is provided with a stem which may be
turned to "tune" the muffler to the system. It is a well known
fact that two systems made up of the same components
do not always sound the same when installed in different
locations. One may be noisy while the other is relatively quiet.
Individual compressor characteristics, length and diameters of
lines and other factors may make the difference.
Suction Mufflers
Reduce System Noise!
• Reduces system noise by smoothing out suction pulsations when installed at the compressor
on the suction side.
• Made from hydrogen copper brazed steel ensuring maximum strength & complete cleanliness.
• Copper nipples for ease of installation.
Suction Mufflers
Part #
Tons
Fitting Size
Overall
Length
Fitting
Size
Weight
(lbs.)
48-1677
4 1⁄2 to 5
7/8" ID (in)
6 1/8"
7/8"
1.0
7/8" OD(out)
48-1678
6 to 10
1 1/8" ID (in)
1 1/8"
1.0
1 1/8" OD (out)
48-1679
7 1⁄2 to 12 1⁄2
1 3/8" ID (in)
1 3/8"
1.0
1 3/8" OD (out)
48-1676
7 1⁄2 to 10
1 1/8" ID (in)
1 1/8"
1.0
1 3/8" OD (out)
All mufflers are in accordance with UL & cUL requirements.
Adjustable Mufflers
Part #
Tons O.D.
Overall
Length
Fitting
Size
Weight
(lbs.)
48-AM5
2 to 5
4"
10"
5/8"
5.5
48-AM10
5 to 10
11"
7/8"
6.0
48-AM25
10 to 25
14 1/4"
1 1/8"
7.5
Notes:
All mufflers above 3" are furnished with "Leak Pruf" fusible plugs installed.
• UL & cUL requirements (File # SA3089)
Discharge Muffler
Part #
Tons O.D.
Overall
Length
Fitting
Size
Removable
Fusible Plug
Weight
(lbs.)
48-M2
2
2" 7 7/16"
3/8"
Not required
1.0
48-M3
3
1/2"
1.0
48-M5
5
5/8"
1.0
48-M10
7 1/2 to 10
3"
9"
7/8"
2.6
48-M15
10 to 15
9 1/4" 1 1/8"
2.8
48-M20
15 to 25
13 3/4" 1 3/8"
3.3
48-M30
25 to 50 4"
16"
1 5/8"
Installed
6.5
48-M60
50 to 75
6"
26 1/2" 2 1/8"
26
48-M80
75 to 100
28"
2 5/8"
27
48-M110
100 to 125
36"
3 1/8"
32.5
Notes:
All mufflers above 3" are furnished with "Leak Pruf" fusible plugs installed.
• UL & cUL requirements
48-AM10
Illustrated
48-M3
Illustrated
Mufflers
