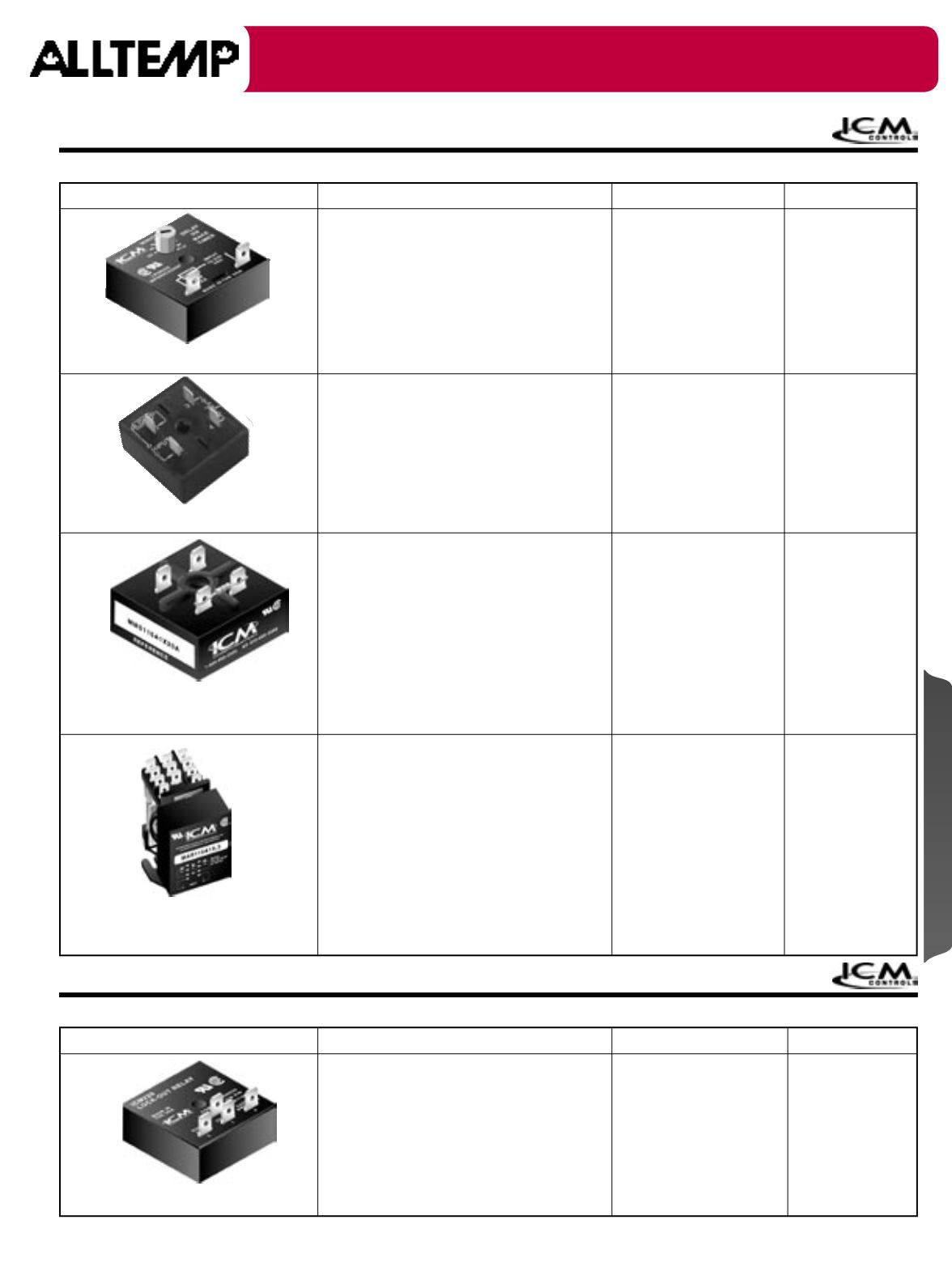

Lockout Relay
Part #
Features & Applications
Specifications
Cross Reference
24-ICM220
• UL 873 recognition as compressor controller.
• Low cost lockout relay.
• Helps eliminate nuisance lockouts typical of
series 84 & 93 impedance relays.
• Ideal for use with safety/ interlock switches.
• Replaces impedance relays Series 84 & 93.
• Control: 18-30 VAC.
• Frequency: 50/ 60 Hz.
• Power Consumption: 2
watts max @ lockout.
• Relay: 1 form C.
• Contacts: 2 amps @ 30
VAC resistive.
Essex
• Impedance Relays
Series 84 & 93
Ideal For Compressor Staging
Part #
Features & Applications
Specifications
Cross Reference
24-ICM105
• Low holding current.
• Low cost version of the 24-ICM102 without
the cooling anticipator circuitry.
• Ideal for compressor staging.
• Universal voltage operation.
• Knob-adjustable time delays.
• Simple 2-wire hook-up.
• Compact 2" × 2" package.
• Control: 18-240 VAC.
• 1.5 amp.
• 15 amp inrush.
• 10 mA holding current.
• Adjustable delays 0.03 to
10 min. (1.8 to 600 sec.)
• Voltage drop: 2.5V @ 1
amp.
Diversified • AC-800
• ASC-600, 601
Gemline • 1C310,
IC213
Mars • 32391, 32367
Robertshaw
• 3310-068
Supco • TD-68,TD-69
Watsco • 706
24-ATMVF
• Complete with resistors for 5, 15, 20, 45, 60,
180, 300 & 420 sec.
• One model replaces many in field.
• Works with anticipator-type thermostats.
• Universal voltage operation.
• Compact 2" × 2" design.
• Epoxy-encapsulated
• Control: 18-30VAC/ VDC.
• 1 amp.
• 10 amp inrush.
• SPST, N.O.
• Adjustable time delays 5
to 420 sec.
Mars
• 32360
24-MMS
Series
• Low holding current.
• Operates resistive or inductive loads such as
relays, contactors, solenoids, thermostats, etc.
• Factory selectable time delay ranges fixed or
adjustable from 0.1 to 600 seconds.
• Factory selectable input voltage: 24, 115, 230
VAC, 12, 24, 28, 32, 110 VDC.
• Factory selectable time delay tolerance: fixed
or adjustable + / - 5%, 10%, or 20%.
• Consult Alltemp for ordering information.
• 24-240 Volts.
• Frequency: 50/ 60 Hz.
• 1 amp.
• 10 amp inrush.
• 20 mA holding current.
• Fixed delays: 0.1 to 600
seconds.
• Voltage drop: 2.5V @ 1
amp.
Trane
• X13270263-04
24-MAR
Series
• High power delay on make timer.
• Ideal to help prevent rapid short cycling of
compressors in HVAC/R equipment.
• Heavy duty 10 amp DPDT switching.
• Exposed terminal base for easy, direct wiring
to relay.
• Factory selectable input voltage: 24, 115, 230
VAC, 24, 28, 110 VDC.
• Factory selectable time delay tolerance: 5%,
10%, or 20%.
• Consult Alltemp for ordering information.
• Nominal Voltage: 24-240
volts
• Frequency 50/ 60 Hz
• Output: relay, DPDT 10
amps resistive @ 120
VAC.
1/6 Hp @ 120 VAC
1/3 Hp @ 240 VAC
• Fixed or adjustable
delays.
Trane
• X13270036-01
• X13270036-09
Delay On Make Timers
