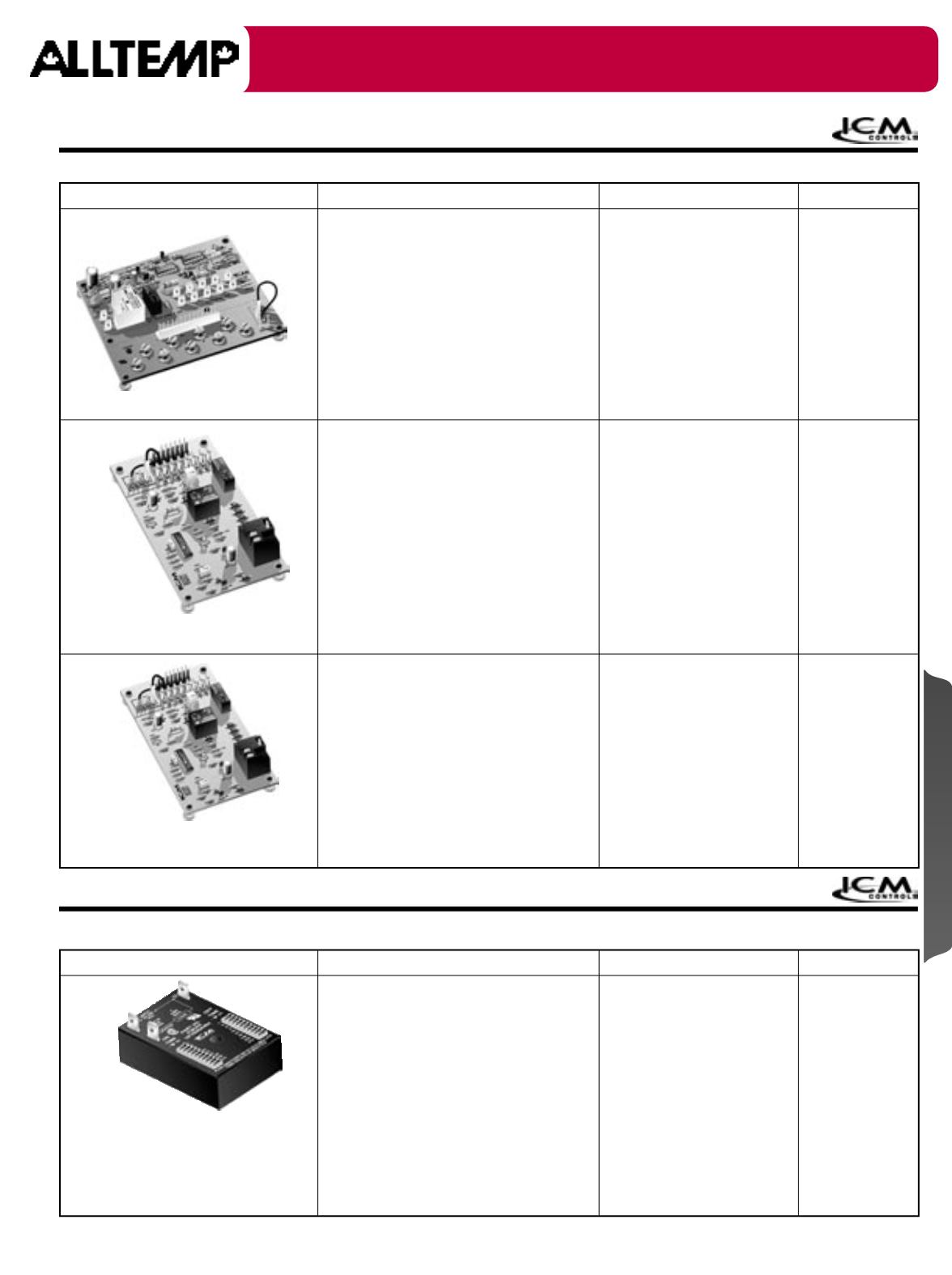

Butt’s Pumps and Motors - page 1193

188 Electrical www.alltemp.ca
Ideal For Defrost Applications
Part # Features & Applications Specifications Cross Reference
24-ICM305
(Minutes)
24-ICM306
(Seconds)
• Reliable duty cycle timer ideally suited for
defrost applications.
• Suitable for process equipment or applica-
tions requiring intermittent delays.
• Switch-settable time delays.
• Digital timing accuracy.
• Reliable solid state output.
• Epoxy-encapsulated for greater reliability.
• 24-ICM305: time delay in minutes.
• 24-ICM306: time delay in seconds.
• On time starts at power-up.
• 2" × 3" package.
• Control: 18-240 VAC.
• 1 amp.
• 10 amp inrush.
• Time delay: 24-ICM305 switch
settable from 1 to 1,023 min.
in 1 min. intervals.
• Time delay: 24-ICM306 switch
settable from 1 to 1,023 sec.
in 1 second intervals.
N/A
OEM & Replacement Parts
Part # Features & Applications Specifications Cross Reference
24-ICM320
• Direct replacement for Carrier HK32FA006.
• High performance, low cost, time/ tempera-
ture defrost.
• Integral short cycle protection.
• Time & temperature terminate.
• 10 minute fixed defrost time.
• Pin-selectable interval: 30/ 50/ 90 min.
• Test pins reduce test time by 256x.
• Recycle function melts frost on coils.
• Stable pin post construction.
• Control: 18-30 VAC.
• Outdoor Fan relay outputs;
- 10 amps @ 240 VAC.
- Form: SPST, N.O., 2 amps.
• Defrost time: 10 min. fixed.
• Interval times: pin-selectable
30/ 50/ 90 min.
Carrier
• HK32FA006
24-ICM321
• Low cost, time/ temperature defrost.
• Integral short cycle protection.
• Time & temperature terminate.
• 10 minute fixed defrost time.
• Pin-selectable interval: 30/ 50/ 90 min.
• Test pins reduce test time by 256x.
• High power output, outdoor fan (1/2 horse-
power fan @ 240 VAC)
• Strip heat, reversing valve outputs 24 VAC,
1 amp.
• Control: 18-30 VAC.
• Output: relay SPST.
• Outdoor Fan relay outputs;
N.C.:10 amps.
N.O. : 20 amps.
• Defrost time: 10 min. fixed.
• Interval times: pin-selectable
30/ 50/ 90 min.
Carrier
• CES01130063-00
• CES01130063-01
24-ICM322
• Low cost, time/ temperature defrost.
• Time & temperature terminate.
• 10 minute fixed defrost time.
• Pin-selectable interval: 30/ 50/ 90 min.
• Test pins reduce test time by 256x.
• Defrost terminate output.
• High power output, outdoor fan (1/2 horse-
power fan @ 240 VAC)
• Strip heat, reversing valve outputs 24 VAC,
1 amp.
• Control: 18-30 VAC.
• Output: relay SPDT.
N.O. 1 amp.
• Defrost time: 10 min. fixed.
• Interval times: pin-selectable
30/ 50/ 90 min.
Carrier
• CES0130024-00
Defrost Controls
Duty Cycle Timers
Solid State Components
