Butt’s Pumps and Motors - page 1194

189 Electrical www.alltemp.ca
Ideal For Compressor Staging
Part # Features & Applications Specifications Cross Reference
24-ICM100 24-ICM101
24-ICM100F 24-ICM101F
• Higher 1.5 amp power rating.
• Ideal for compressor staging/ delaying the start-
up of motors and other devices.
• Works with anticipator-type thermostats.
• Simple 2-wire hook-up.
• 24-ICM100, 100F: 3 minute delay.
• 24-ICM101, 101F: 5 minute delay.
• "F" suffix denotes 6" wire leads.
• Compact 2" × 2" cube.
• Control: 18-30 VAC.
• 1.5 amps.
• 15 amp inrush.
• 40 mA holding current.
• 3 or 5 min. fixed time
delays.
• Voltage drop: 2.5V @1.5
amps.
Diversified
• ACS-600-3
• ACS-601-3
Watsco
• EAC-700-A
• EAC-701-180-W
• EAC-701-300-W
• EAC-710-180
• EAC-710-300
24-ICM102
24-ICM102F
• Universal voltage operation.
• Higher 1.5 amp power rating.
• Knob-adjustable time delays.
• Works with anticipator-type thermostats.
• One model replaces many in field.
• Ideal for compressor staging.
• Simple 2-wire hook-up.
• "F" suffix denotes 6" wire leads.
• Compact 2" × 2" cube.
• Control: 18-240 VAC.
• 1.5 amps.
• 15 amp inrush.
• 40 mA holding current.
• Adjustable delays 0.03 to
10 min. (1.8-600 sec.).
• Voltage drop: 2.5V @1.5
amps.
Diversified
• AC-800
• ASC-600, 601
Gemline
• 1C310, 1C213
Mars
• 32391, 32367
Robertshaw
• 3310-068
Supco
• TD-68, TD-69
Watsco
• EAC-701-ADJ
• EAC-700-A
24-ICM103
• Highly precise digital timing.
• Switch-settable time delays.
• Ideal for ice machine application.
• Universal voltage operation.
• Repeat accuracy 0.5% over voltage and tem-
perature range.
• Precise digital timing.
• Compact 2" × 2" package.
• Control: 18-240 VAC
• 1 amp
• 10 amp inrush
• 40 mA holding current
• Switch-settable delays
range 1 to 1,023 sec.
• Voltage drop: 2.5V @1
amp
Gemline
• 1C213
Mars
• 32394
• 32396
Robertshaw
• 3310-068
Supco
• TMF-19
• TMF-80
Watsco
• 7061
24-ICM104
• Highly precise digital circuitry.
• High power, SPDT relay output.
• Input to output isolation.
• Works with anticipator-type thermostats.
• Repeat accuracy 0.5% over voltage and tem-
perature range.
• Rugged, compact package.
• 115 and 230 VAC models available.
• Compact 2" × 3" package.
• Control: 18-30 VAC.
• Output:
N.O. 20 amps @ 240 VAC.
N.C. 10 amps @ 240 VAC.
• SPDT, 1 form C.
• Knob-adjustable time
delays 10 to 1,000 sec.
• 40 mA holding current.
Mars
• 32394
• 32398

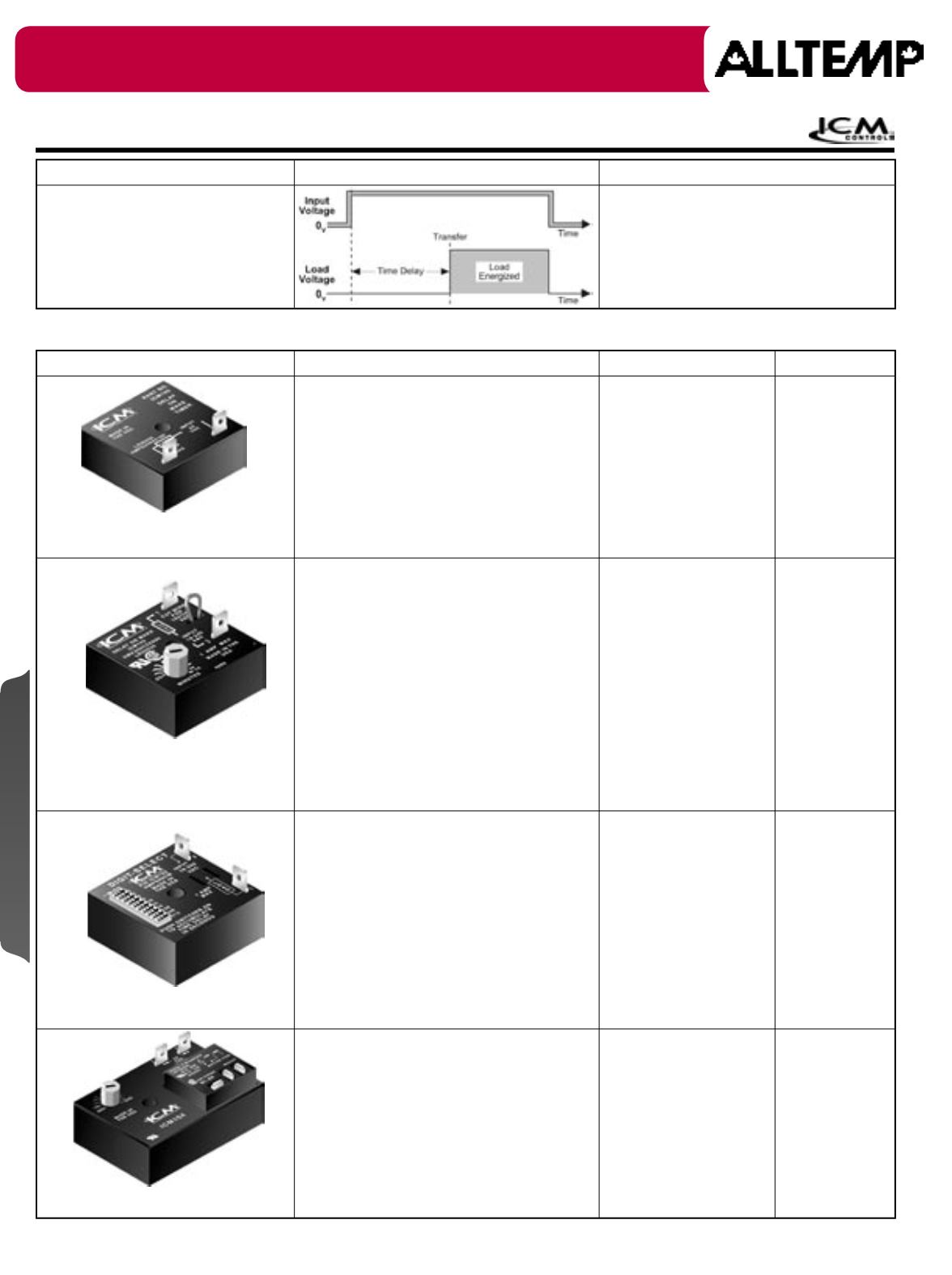

Applications Timing Diagram Mode Of Operation
• Ideal for compressor staging and
stagger starting of multiple motor
equipment. Helps reduce power surges.
• When power is applied to the input, the
time delay begins. After the time delay is
complete, the load energizes, remaining
energized as long as power is applied. The
control is reset by removing power during or
after the time delay period.
Delay On Make Timers
Solid State Components
