Part # Features & Applications Specifications Cross Reference

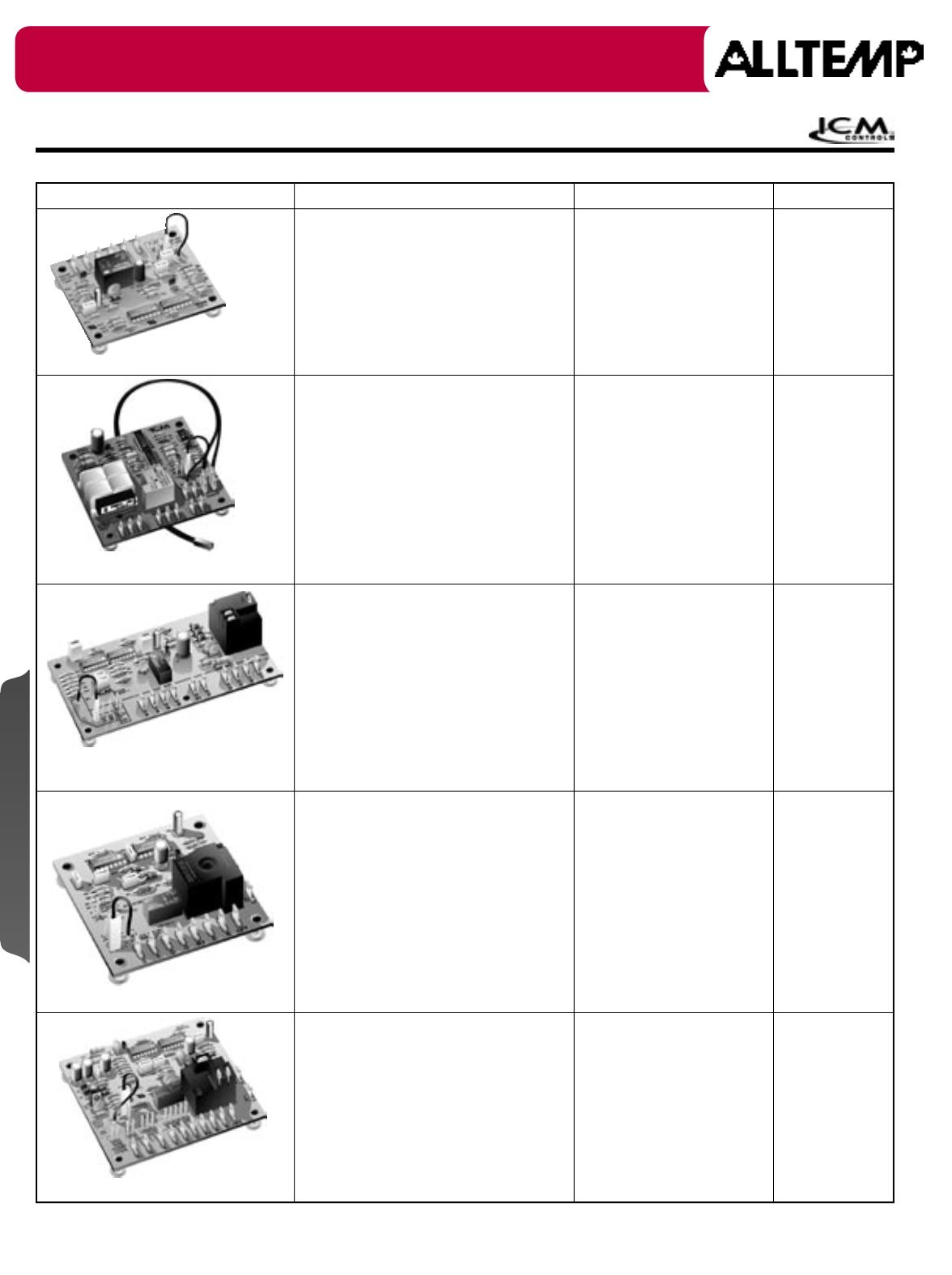

24-ICM307
• 3 minute anti-short cycle protection.
• Low cost, time/ temperature defrost.
• Time & temperature terminate.
• 10 minute fixed defrost time.
• HOLD input tracks compressor run times.
• Pin-selectable intervals: 30/ 60/ 90 min.
• Test pins reduce test time by 256x.
• Integral short cycle protection.
• Control: 18-30 VAC.
• Frequency: 50/ 60 Hz.
• Output: relay SPST
N.O. 1 amp.
• Defrost time: 10 min. fixed.
• Interval times: pin-selectable
30/ 60/ 90 min.
Lennox
• 86G16
Ranco
• DT-2
Fast
• 1093410
24-ICM315
• Solid state replacement for Ranco E-15.
• Reliable thermistor-type sensor is less
susceptible to breakage & easier to mount.
• Replaces faulty bulb-type sensors.
• 10 minute fixed defrost time.
• Pin-selectable intervals: 30/ 45/ 90 min.
• Test pins reduce test time by 256x.
• Stable pin post construction.
• Recycle function melts frost on coils.
• Control: 24, 120, 240 VAC.
• Output: SPST.
N.O. 20 amps.
N.C. 10 amps.
• Defrost time: 10 min. fixed.
• Interval times: pin-selectable
30/ 45/ 90 min.
Ranco
• E-15
Avion
• DFT100
24-ICM316
• Direct replacement for Trane
21C142827G01.
• Low cost time/ temperature defrost.
• Time & temperature terminate
• Pin-selectable intervals: 50/ 70/ 90 min.
• Test pins reduce test time by 256x.
• High power output (1/2 horsepower fan @
240 VAC)
• Strip heat, reversing valve outputs (24 VAC,
1 amps)
• Control: 18-30 VAC.
• Output: relay 1/2 hp fan @
240 VAC.
• Strip heat, reversing valve
outputs 24 VAC, 1 amp.
• Defrost time: 10 min. fixed.
• Interval times: pin-selectable
50/ 70/ 90 min.
Trane
• CNT1642
• CNT1152
• 21C142827G01
24-ICM318
• Direct replacement for Goodman
B1226008.
• Low cost time/ temperature defrost.
• Time & temperature terminate
• HOLD input tracks compressor run times.
• Pin-selectable intervals: 30/ 60/ 80 min.
• Test pins reduce test time by 256x.
• High power output (1/2 horsepower fan @
240 VAC)
• Strip heat, reversing valve outputs (24 VAC,
1 amps)
• Control: 18-30 VAC.
• Outdoor Fan.
relay outputs 1/2 hp fan @ 240
VAC.
• Strip heat, reversing valve
output: 24 VAC, 1 amp.
• Defrost time: 10 min. fixed.
• Interval times: pin-selectable
30/ 60/ 80 min.
Goodman
• B1226008
ICM
• W1001-4
24-ICM319
• Direct replacement for Nordyne 624519A.
• Low cost time/ temperature defrost.
• Time & temperature terminate
• 10 minute fixed defrost time.
• Pin-selectable intervals: 30/ 60/ 90 min.
• Test pins reduce test time by 256x.
• Recycle function melts frost on coils.
• Integral short cycle protection.
• Control: 18-30 VAC.
• Outdoor Fan.
relay outputs 1/2 hp fan @ 240
VAC.
• Strip heat, reversing valve
output: 24 VAC, 1 amp.
• Defrost time: 10 min. fixed.
• Interval times: pin-selectable
30/ 60/ 90 min.
Nordyne
• 624519A
ICM
• DFORB24A2I300
