Anti-Short Cycle Protection
Part #
Features & Applications
Specifications
Cross Reference

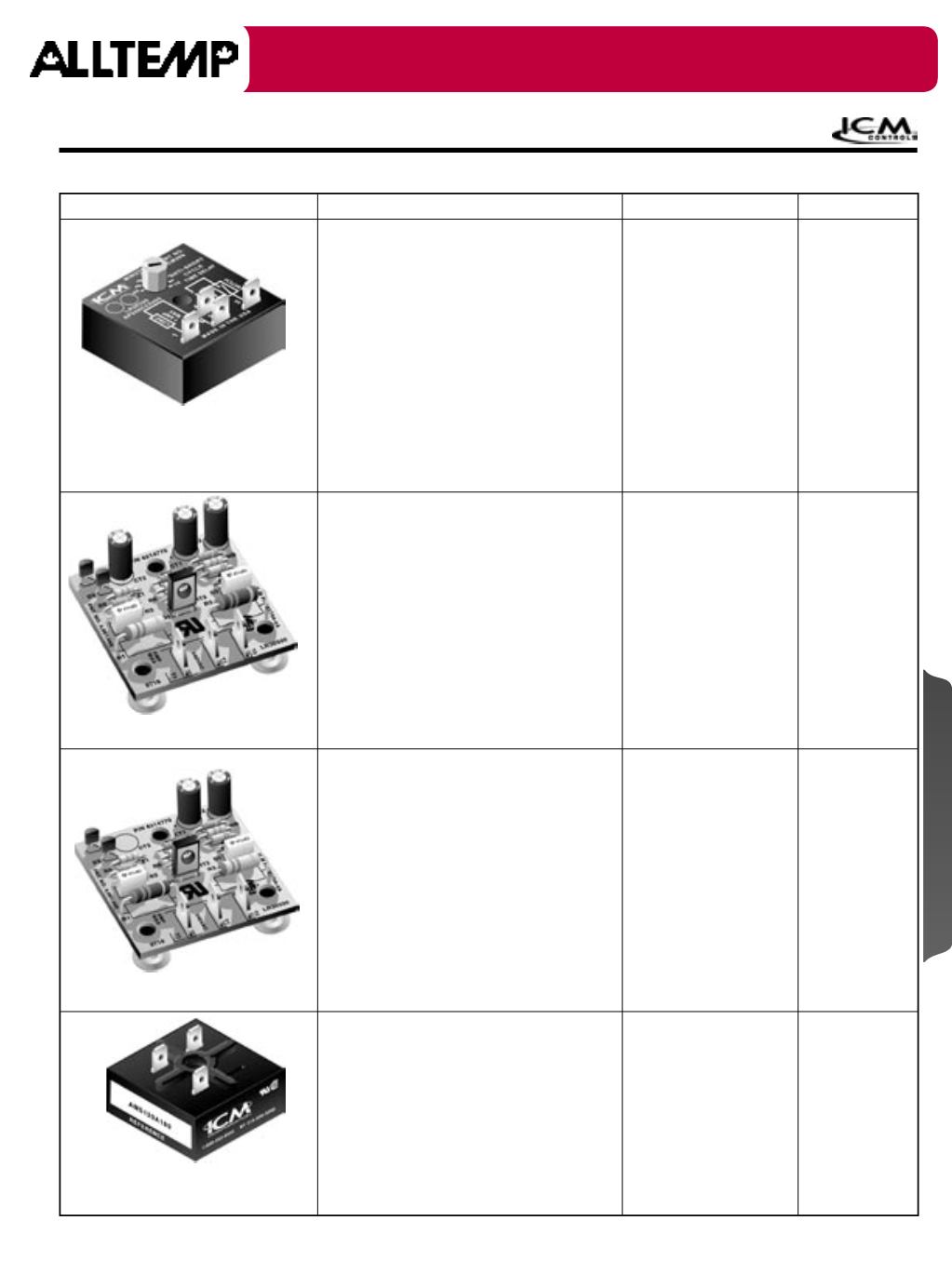

24-ICM207
24-ICM208
24-ICM209
• Universal voltage operation.
• Helps prevent scroll compressor reversal.
• Fast response time: 16 ms.
• Compressor lockout/ anti-short cycle timer.
• Eliminates relay chatter due to thermostat
bounce or tampering.
• Works with anticipator-type thermostats.
• Compact, epoxy-encapsulated package.
• 24-ICM207: 3 minute delay.
• 24-ICM208: 5 minute delay.
• 24-ICM209: 3 - 10 minute delay.
• Control: 18-240 VAC.
• 1 amp.
• 10 amp inrush.
• 3 or 5 min. fixed or 10
min. adjustable time
delays.
• 40 mA holding current.
N/A
24-ICM210
• UL 873 recognition as compressor controller.
• Compressor lockout/ anti short-cycle timer plus
random start function.
• Dual function delay on make/ break.
• Random start delay is ideal for stagger-starting
multiple units.
• Low cost, open board package.
• Conformally coated for added protection.
• Control: 18-30 VAC.
• 1 amp.
• 10 amp inrush.
• Random start time: up to
3 sec.
• ASC time delay: 5 min.
fixed.
• Voltage drop: 2.5V @ 1
amp.
Watsco
• EAC-650
24-ICM211
• UL 873 recognition as compressor controller.
• Compressor lockout/ anti short-cycle timer plus
random start function.
• Low cost, open board package.
• Conformally coated for added protection.
• Control: 18-30 VAC.
• 1 amp.
• 10 amp inrush.
• ASC time delay: 5 min.
fixed.
• Voltage drop: 2.5V @ 1
amp.
N/A
24-AMS
Series
• Reliable anti-short cycle protection.
• Lockout delay is ideal to help prevent the rapid
short cycling of compressors in HVAC/R equip-
ment.
• Fixed time delays from 0.1 to 600 seconds.
• Built-in transient protection.
• Factory selectable voltage range: 24, 115 and
240 VAC.
• 18-240 Volts factory fixed.
• Frequency: 50/ 60 Hz.
• 1 amp.
• 10 amp inrush.
• Fixed delays from: 0.1 to
600 seconds.
• Voltage drop: 2.5V @ 1
amp.
• 20 mA holding current.
Trane
• X13270061-01
Delay On Break Timers
Solid State Components
