200
Electrical
Versatile, Simple, Accurate
Part #
Features & Applications
Specifications
Cross Reference
24-ICM500
24-ICM501
24-ICM502
24-ICM503
24-ICM504
24-ICM505
• Multi-mode, selectable time delay ranges.
• Crystal timing accuracy.
• Microprocessor controlled.
• 4 single and two dual timing modes.
DOM, DOB, interval, single shot.
DOM/ DOB and repeat cycle.
• Easy to select, switch-settable delays.
• Bright LED’s indicate input and output.
• Switch-settable time delays: 1 to 1,023 seconds
or minutes in multiple of 0.1, 1, 10, 100.
• 75 millisecond reset time during and after tim-
ing. May be reset during the time delay period
without false output.
• 8-pin base standard models. Add suffix "D" for
11-pin models.
• 8-pin is for single pole, 11-pin is for double pole.
• Base sold separately.
• Voltage:
24, 115 or 230 VAC.
12, 24 or 110 VDC.
• Frequency: 50/ 60 Hz.
• Power consumption: 2
watts maximum.
• Output:
8-pin = SPDT.
11-pin = DPDT.
• Relay: 10 amps resistive
at 240 VAC.
1/6 Hp @ 115 VAC.
1/3 Hp @ 240 VAC.
• Plug-in base.
N/A
Relay socket
Part #
Features & Applications
Specifications
Cross Reference
24-ACS-8
24-ACS-11
• 8-pin octal plug-in base.
• 8-pin male connectors as terminals.
• Locating key ensures proper orientation.
• Order ACS-11 for 11-pin base.
• For use with 24-ICM410 to ICM427, 24-ICM500
to ICM505.
• 10 amps up to 480 VAC.
Diversified
• RB-08

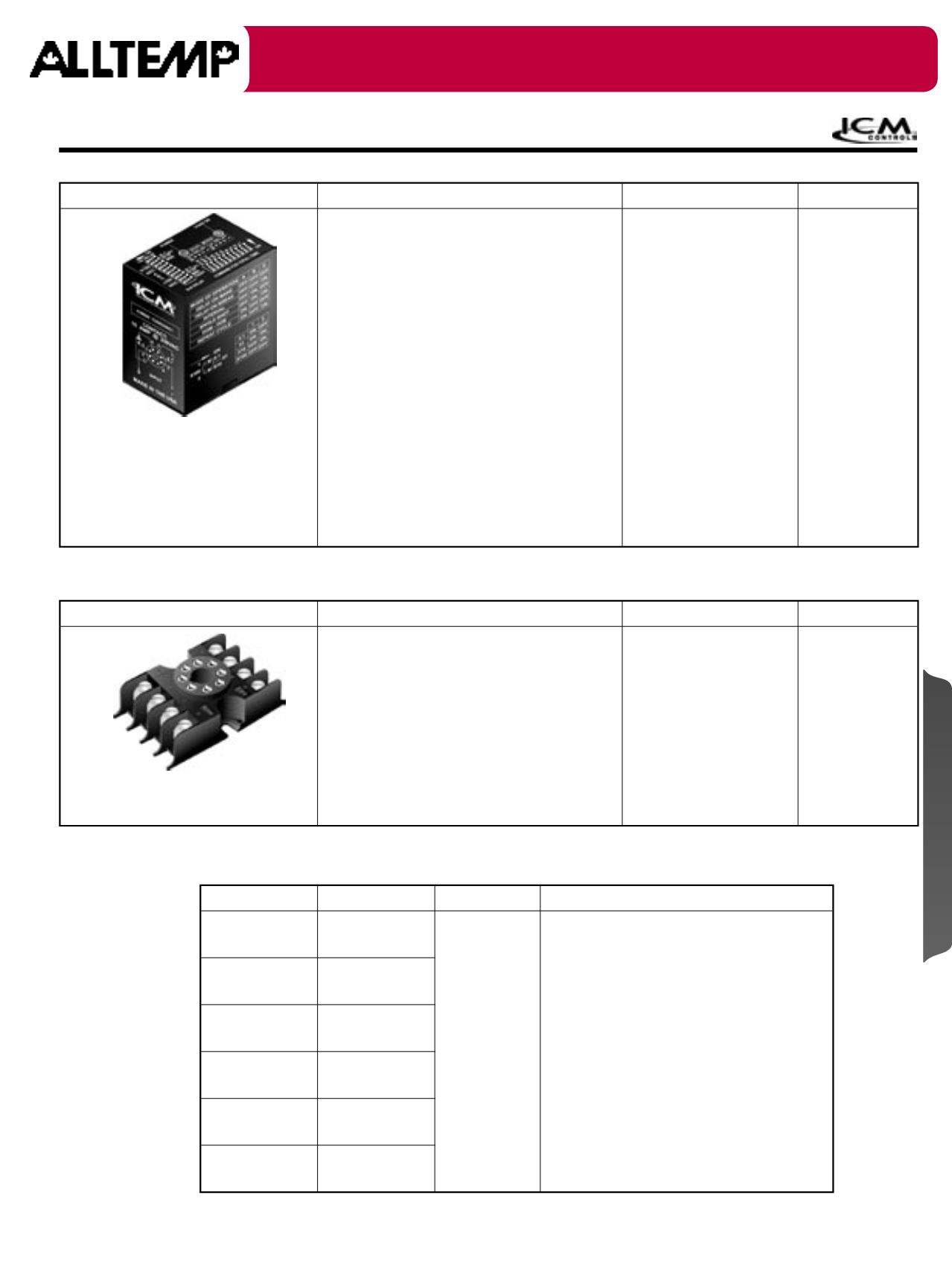

Multi-Mode Digital Timer - 24-ICM500 to 24-ICM505 Specifications
Part #
Input Voltage Output Type
Description
24-ICM500
24 VAC
Single Pole,
1 FORM C
8-Pin.
Timing Modes Of Operation:
• Delay on Make.
• Delay on Break.
• Bypass.
Control Operation Models
• DOM, DOB, Interval, Single Shot.
• DOM, DOB & Repeat Cycle.
Time Delay Adjustment:
• Switch-settable delays from 1 to 1,023 sec.
min. multiples of 0.1, 1, 10 & 100.
• Plug-in bases are to be ordered separately.
Specify 8-pin or 11-pin.*
8-pin = ACS-8 • 11-pin = ACS-11.
24-ICM501
115 VAC
24-ICM502
240 VAC
24-ICM503
12 VDC
24-ICM504
24 VDC
24-ICM505
110 VDC
*Note: Add suffix D when ordering 11-pin base model, Double Pole, 2 FORM.
Multi-Mode Digital Timer
Solid State Components
