Part #
Features & Applications
Specifications
Cross Reference
24-ICM150
• UL 873 recognition as compressor controller.
• Compressor lockout/ anti-short cycle timer.
• Integral random start capability.
• Adjustable initiation delay is ideal for stagger-
starting multiple units.
• Reduces nuisance lockouts/ service calls.
• Compact 2" × 2" package.
• Control: 18-30 VAC.
• 1 amp.
• 10 amp inrush.
• Time delay 6 to 600 sec.
knob adjustable.
• Voltage drop 1.5 volts @
1 amp.
Diversified
• ASC-200
24-ICM151
• UL 873 recognition as compressor controller.
• Compressor lockout/ anti-short cycle timer with
random start feature plus:
- Safety switch lockout.
- Remote thermostat reset.
- LED fault indication.
• Reduces nuisance lockouts/ service calls.
*Safety switch: upon interruption of power to the
compressor via the pressure limit switch(es), the
compressor will be locked out until the lockout delay
expires and the control is reset by cycling the thermo-
stat OFF then ON.
• Control: 18-30 VAC.
• 1 amp.
• 10 amp inrush.
• Time delay 0.1 to 600 sec.
knob adjustable.
N/A
Applications

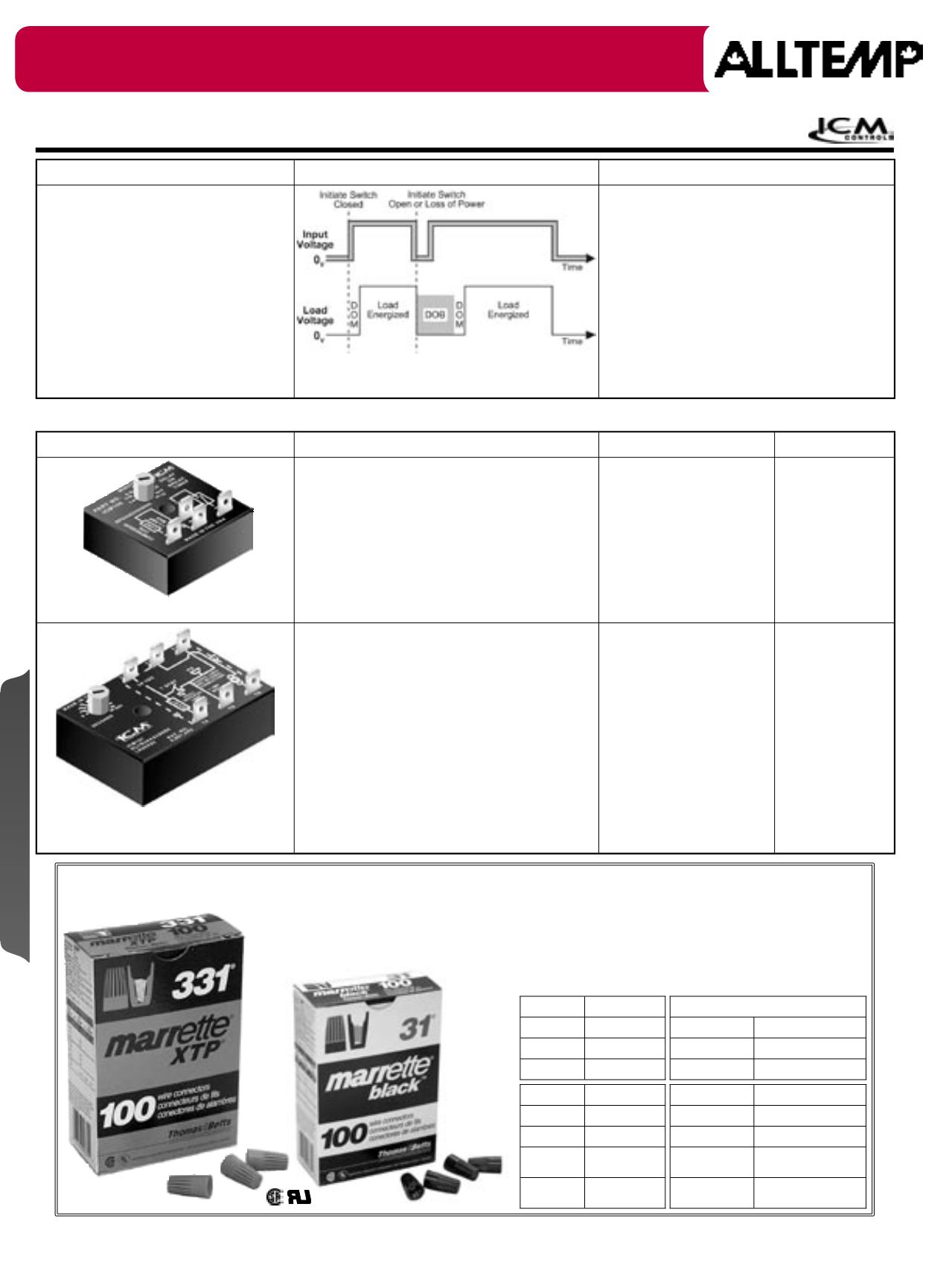

Timing Diagram
Mode Of Operation
• "Delay on make / Delay on break"
• Ideal for use in compressor staging
and to stagger-start multiple rooftop
units. Helps to reduce power surges.
No need to wait for the 5 minute delay
typical with delay on make timers.
* Delay on make time is proportional to selected delay on
break time.
• Upon application of power, the delay on make
period begins. Once the delay is complete,
the unit energizes.
• Lockout Timer: upon application of power, the
load is energized. Upon opening thermostat
or loss of power the load is de-energized and
the delay period begins. The compressor will
not start again during the delay period.
Random Start Timers
*
*
Solid State Components
Marr Electrical Connectors
Marr Connectors XTP
The Marrette® XTP® is a high quality, twist-on wire
connector with a unique spring and cap grip design that sets
it apart from the competition.
• Standard Temperature: 105°C (221°F) rated.
• High temperature: 150°C (302°F) rated.
Part # Description Wire Min
Wire Max
29-331
Orange
(2) #18
(3) #14
29-333
Yellow
(1) #14 w/ (2) #18 (1) #10 w/ (2) #14
29-335
Red
(2) #16 w/ (2) #18 (3) #10
29-29
Black
(1) #20 w/ (1) #22 (2) #16
29-30
Black
(3) #20
(3) #16
29-31
Black
(2) #18
(4) #16
29-33
Black
(6) #18
(1) #16 w/ (1) #18
(4) #14 w/ (1) #18 (300V)
(4) #14 (600V)
29-35
Black
(1) #12 w/ (7) #18
(2) #14
(3) #10 (300V)
(3# #12 w/ (1) #18 (600V)
29-31
Illustrated
29-331
Illustrated
100 pcs. per box.
