Service Tools

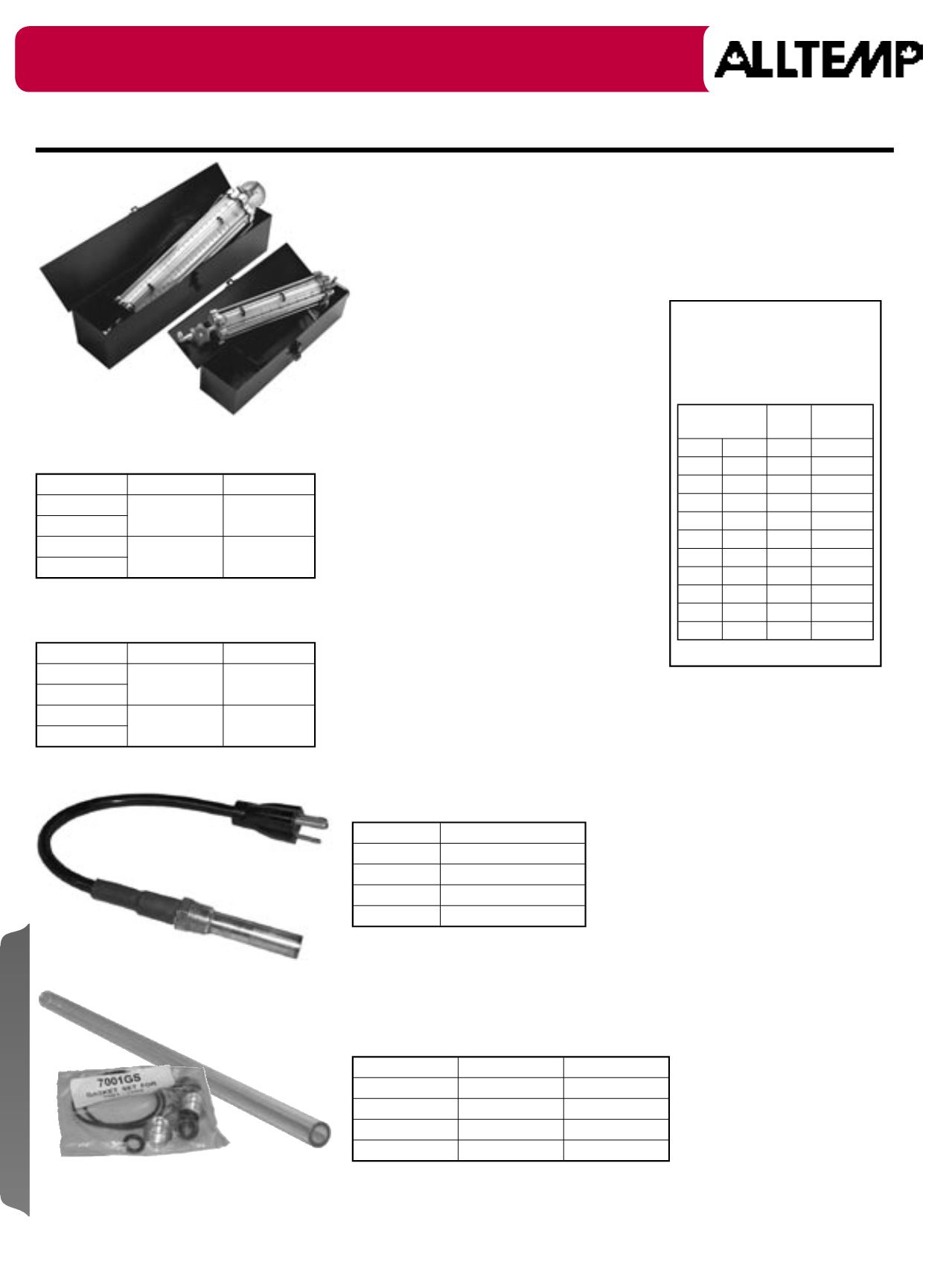

Thermal Charge-Check Refrigerant Charging Cylinders
• Available in light domestic to heavy-duty commercial applications.
• Allows measuring precise quantities of refrigerant.
• Helps speed up the charging process by letting you charge with heat.
All cylinders except the 16 oz models will hold a model 55-7020 heater
assembly.
• Allows you to carry small quantities
of refrigerant to the job, yet buy
refrigerant in large quantities and
keep the drum back at your shop.
• Available in a steel carrying case to
completely protect from tough use.
Cylinder need not be removed from
the case as all connections and
valves are accessible from front.
Case forms a stand to set on the floor
or bench.
• Easily used in the field. Unit can hang
from system being charged by means
of a top-mounted bail.
• Can be calibrated for ambient
temperature variations by means of
temperature correction chart on the
side of the scale. This is required only
if better than 2% accuracy is required.
• Safety relief valve for protection
• Plastic liquid level indicators
R12, R22 & R502 Charging Cylinders
Part #
Capacity Graduation
55-7001
16 oz (454g) 1/2 oz (14g)
55-7002*
55-7005
80 oz (2,268g) 1 oz (28g)
55-7006*
R134a HFC Charging Cylinders
• 1/4" SAE fittings.
Part #
Capacity Graduation
55-U7001
16 oz (454g)
1/8 oz (3g)
55-U7002*
55-U7005
80 oz (2,268g) 1 oz (28g)
55-U7006*
* Carrying case included.
For refrigerants other than
R12, R22 & R-502
1. Correct for refrigerant temperature
2. "Using the proper scale", multiply by
the quantity of refrigerant required by
the correction from the table below.
Refrigerant
Scale
Correction
Factor
R134a -
R22
0.99
R401A MP39 R22
1.00
R401B MP66 R22
1.00
R401C MP52 R22
0.99
R402A HP90 R22
1.05
R402B HP81 R22
1.04
R404 HP62 R22
1.14
R406A -
R12
1.00
R410A AZ20 R22
1.15
R414B -
R12
1.00
R507 AZ50 R22
1.14
Charge-Check Gasket Sets & Repair Kits
Charg-Check repair kits contain a complete
gasket set and replacement gauge glass.
Gasket Sets Repair Kits
Size
55-7001GS 55-7001K
16 oz (454g)
55-7003GS 55-7003K
2.5 lb (1.1kg)
55-7005GS 55-7005K
5 lb (2.3kg)
-
55-7009K
10 lb (4.5kg)
Charge-Check Accessories
Gasket Sets
Size
55-7007
55-7001 carrying case.
55-7008
55-7005 carrying case.
55-7020
120V heater assembly.
55-7024
240V heater assembly.
Charging Cylinders
55-7000
Series Illustrated
55-7020
Illustrated
55-7001K
Illustrated
THERMAL
Charging Cylinders
