Service Tools

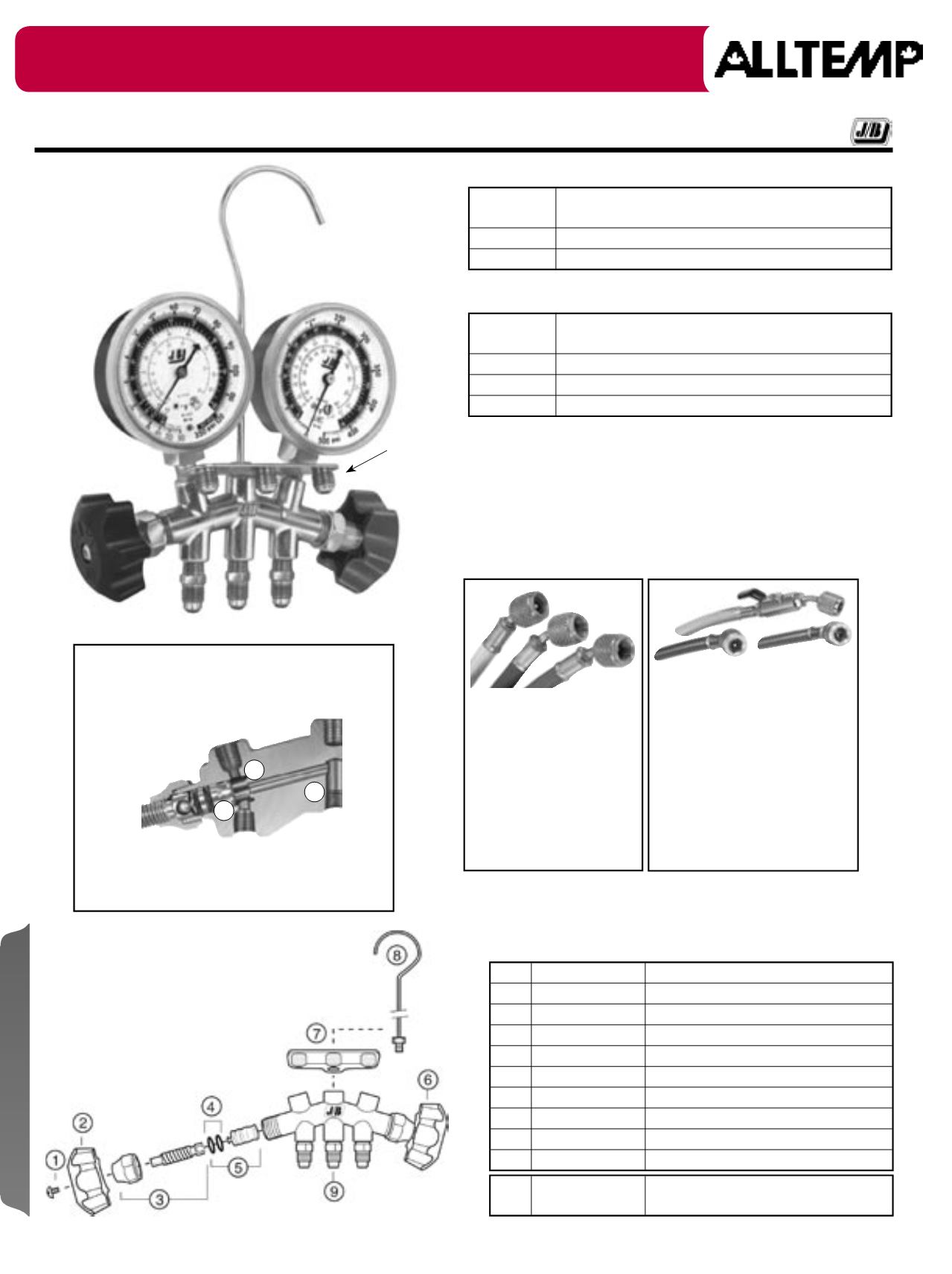

1/4" Standard Bar - Charging & Testing Manifolds
Manifold & No Hose Sets
R12, R22 &
R502
Description
04-M2-8
Manifold
04-M2-12
Bar Only - no gauges.
Manifold & Standard Hose Sets
R12, R22 &
R502
Description
04-M2-36
Manifold & 3' standard hose set.
04-M2-6
Manifold with 3' standard red, 3' blue & 5' yellow hose.
04-M2-5
Manifold & 5' standard hose set.
• Pull-out proof
hanging hook.
• Hose holder
mounts to
front or back
of bar.
• Refrigerant colour-coded
dials (red & blue).
• Surge
dampened
gauges.
• Reduced
pointer
movement.
• Knuckle clearance
- angled bar design.
• Colour-coded (red &
blue) durable nylon
hand-wheels.
• Replaceable
intake fittings.
Features
• First introduced in 1967, the "heart" of the J/B manifold has
never been back to the drawing board. The original free
floating o-ring sealing system has been the standard world
over for deep vacuum, charging and testing.
1. Stem seats retract completely to provide full flow.
2. Zero leakage high pressure raised seat for positive sealing.
3. Double size flow path throughout length of centre port.
LIFETIMEWARRANTY ON MANIFOLD BAR
1
2
3
Manifold Replacement Parts
• 04-M2 Series
No.
Part #
Description
1
04-MR503
Hand-wheel screws (2).
2
04-MR501B
Blue hand-wheel.
3
04-MR516
Stem assembly & nut.
4
04-MR509
O-rings (2).
5
04-MR505
Piston w/seat & o-rings.
6
04-MR501R
Red hand-wheel.
7
04-M2-300
Hose holder.
8
04-M2-102N
Hanging hook.
9
02-U1-4B
Intake fitting.
-
04-MR519K
Valve Repair Kit
- Includes: 04-MR516,
04-MR505, o-rings & screws.
Enviro-Safe 1/4" Hose Sets
• 800 psi working pressure; 4000
psi burst.
• High pressure colour coded
hose sets for all refrigerants.
• Three fitting styles available
in 02-M3, M4, M5, M7, M8
& M9 series manifolds.
Environmentalhose is less
permeating than standard.
CLS - Secure
Seal Fitting
CLE - Standard Fitting
CLBV - Ball
Valve Shut-Off
Standard 1/4" Hose Sets
• 750 psi working pressure;
3000 psi burst.
• Blowout resistant
depressor and barrel
gasket.
• Depressor set to ARI
access valve core
standards.
Standard
Fittings
Available Hose Sets
Come with J/B manifolds where specified.
Manifolds
