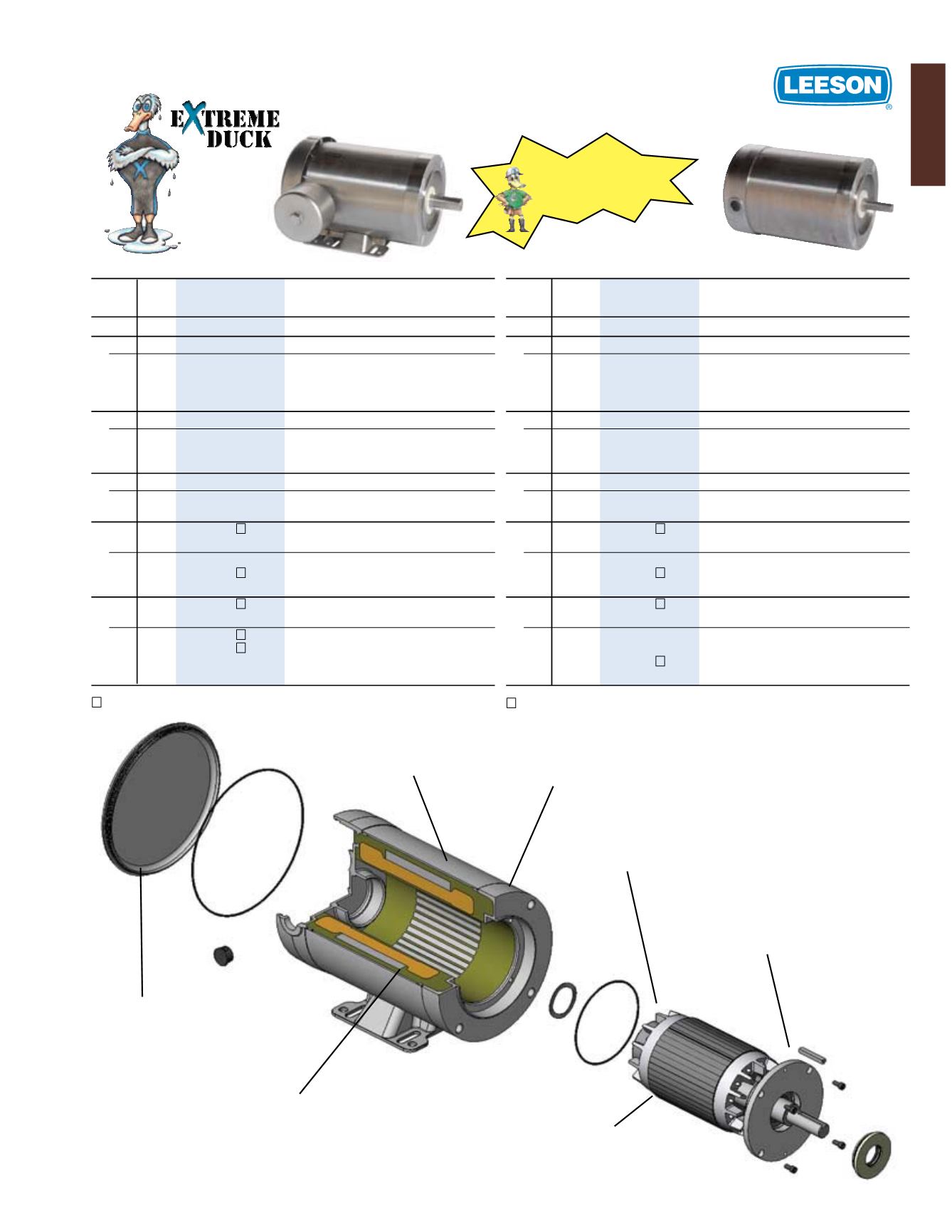

Butt’s Pumps and Motors - page 453

47
Specifications are subject to change without notice
AC Motors
7!3('5!2$ !,, 34!).,%33 -/4/23
!,, 34!).,%33 s 4(2%% 0(!3% s 34!.$!2$ .%-! 02%-)5- 2!4).'3
4(2%% 0(!3% s 4%.6 4%&# s # &!#% 7)4( "!3%
SYN App. F.L. “C”
RPM NEMA Catalog Wgt. Amps Dim.
HP 60 Hz Frame Number (lbs.) Voltage 230V (Inches)
1/3 … … … … … … …
1/2 3600 56C 117118 l 39 208-230/460 1.6 10.47
… … … … … … …
1800 S56C 103411 l 33 208-230/460 1.6 11.49
1800 56C 117119 l 40 208-230/460 1.6 10.72
1800 56C 117527 l 40 575 0.64 10.72
3/4 3600 56C 117120 l 46 208-230/460 2.4 10.47
1800 S56C 103412 39 208-230/460 2.3 12.50
1800 56C 117121 l 47 208-230/460 2.3 11.22
1800 56C 117525 l 47 575 0.92 11.22
1 3600 56C 117122 l 48 208-230/460 2.6 10.97
1800 56C 117123 l 50 208-230/460 3.0 11.97
1800 56C 117526 l 50 575 1.2 11.97
11⁄2 3600 143TC 121879 W 54 208-230/460 4.0 11.75
3600 143TC G121748 54 208-230/460 4.0 11.00
1800 56C 117296 56 208-230/460 4.4 11.69
1800 145TC 121880 W 56 208-230/460 4.4 12.75
1800 145TC G121749 56 208-230/460 4.4 11.25
2 3600 145TC 121881 W 56 208-230/460 5.2 12.75
3600 145TC G121739 56 208-230/460 5.2 12.50
1800 56C 117299 W 57 208-230/460 5.6 12.69
1800 145TC 121955 W 57 575 5.6 13.25
1800 145TC 121882 57 208-230/460 5.6 13.25
1800 145TC G121740 57 208-230/460 5.6 12.50
4(2%% 0(!3% s 4%.6 4%&# s # &!#% ,%33 "!3%
SYN App. F.L. “C”
RPM NEMA Catalog Wgt. Amps Dim.
HP 60 Hz Frame Number (lbs.) Voltage 230V (Inches)
1/3 1800 48C 103417 l 30 208-230/460 1.3 9.58
1/2 3600 56C 117126 l 38 208-230/460 1.6 10.47
1800 48C 103418 l 32 208-230/460 1.6 11.33
1800 S56C 103413 l 32 208-230/460 1.6 11.49
1800 56C 117127 l 39 208-230/460 1.6 10.72
… … … … … … …
3/4 3600 56C 117128 l 45 208-230/460 2.4 10.47
1800 S56C 103414 38 208-230/460 2.3 12.50
1800 56C 117129 l 46 208-230/460 2.3 11.22
… … … … … … …
1 3600 56C 117130 l 47 208-230/460 2.6 10.97
1800 56C 117131 l 50 208-230/460 3.0 11.69
… … … … … … …
11 ⁄2 3600 143TC 121908 W 53 208-230/460 4.0 11.75
3600 143TC 121750 53 208-230/460 4.0 11.00
1800 56C 117297 55 208-230/460 4.4 11.69
1800 145TC 121909 W 55 208-230/460 4.4 12.75
1800 145TC 121751 55 208-230/460 4.4 11.25
2 3600 145TC 121910 W 55 208-230/460 5.2 12.75
3600 145TC 121742 55 208-230/460 5.2 12.50
1800 145TC 121743 56 208-230/460 5.6 12.50
… … … … … … …
1800 145TC 121911 W 56 208-230/460 5.6 13.25
1800 56C 117298 56 208-230/460 5.6 12.69
Laser etched full-fact
nameplate on motor frame.
Treated rotor to protect
against corrosion.
Maximum internal encapsulation reduces
interior air volume, thus reducing the points of
entry by contaminants and eliminates the need
for drain plugs and breathers.
300 Series stainless steel exterior components frame
base include frame, base, conduit box cover endshields
and bearing carrier cover for extreme
washdown conditions.
Double sealed bearings with moisture resistant
high-temperature grease.
Bearing carrier cover WITH O RING FOR EASE OF
assembly and maximum sealing protection
(patent pending).
Screw on conduit box cover
BICB compartment on TENV designs with
o-ring for maximum sealing plus reduces
exterior hardware, which may trap
contaminants (patent pending).
l These motors are totally enclosed, non-ventilated—Others are fan cooled.
W Premium efficiency WATTSAVERe® Motors. See page 24 for details.
l These motors are totally enclosed, non-ventilated—Others are fan cooled.
W Premium efficiency WATTSAVERe® Motors. See page 24 for details.
Premium Efficiency
Washguard Motors -
Now Available!
