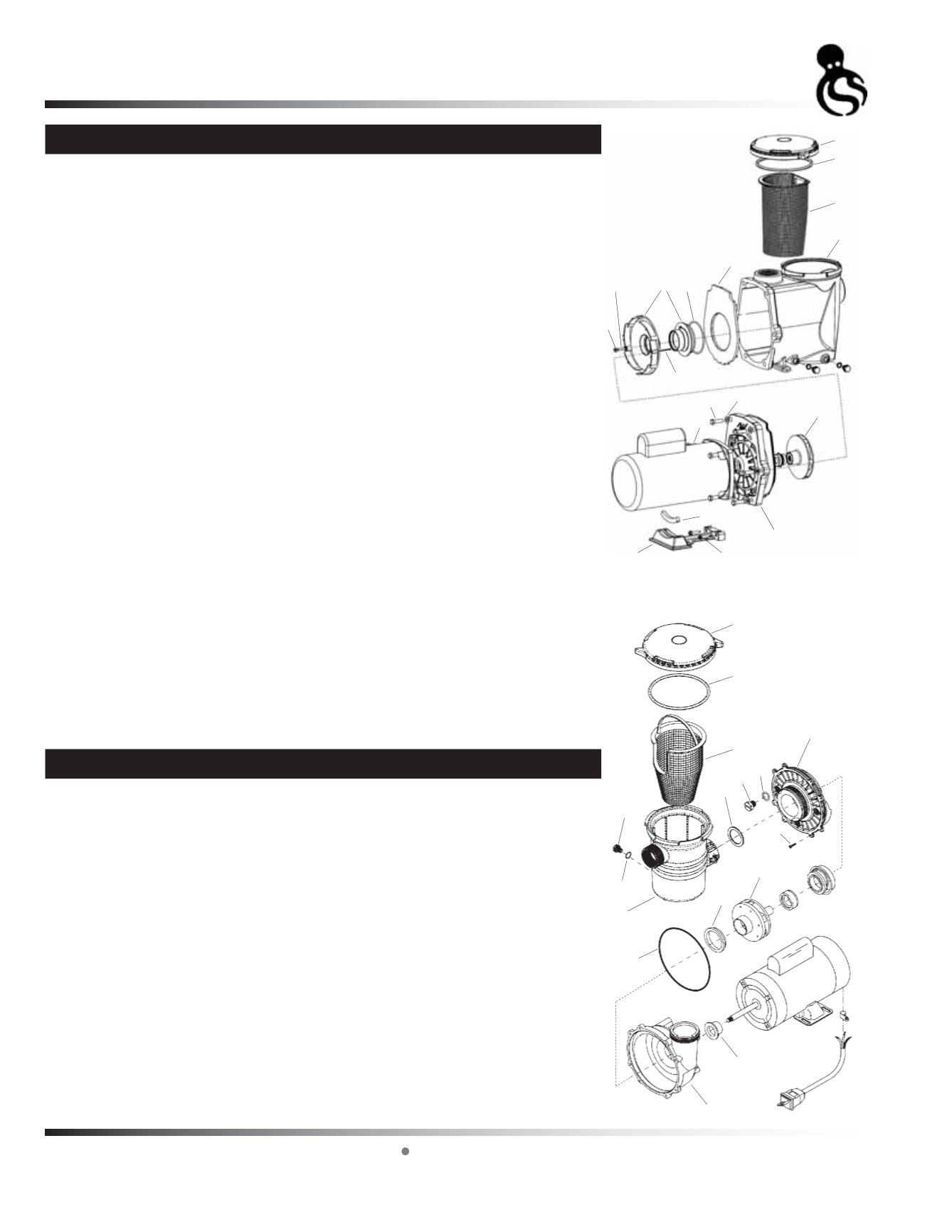

POOL PARTS WATERWAY
CHAMPION REPLACEMENT PARTS
SKU Number Description List Price Code
1 319-3260 ................ Trap Lid.......................................................................$ 49.48 B
2 805-0436 ................ Trap O-Ring Lid...........................................................$ 4.04 B
3 319-1400 ................ Basket .........................................................................$ 19.00 B
319-1430B.............. Basket with Extension (not pictured)...........................$ 19.16 B
4 315-1400 ................ Pump Housing ............................................................$ 322.72 B
5 319-1420 ................ Diffuser Plate...............................................................$ 59.64 B
6 805-0238 ................ O-Ring, Diffuser ..........................................................$ 4.08 B
7 310-7460 ................ Diffuser Assembly (CHAMP E-130 only).....................$ 88.98 B
7 310-7470 ................ Diffuser Assembly (Except CHAMP E-130) ................$ 88.98 B
8 819-0018 ................ Bolt #4-40....................................................................$ 2.68 B
9 819-4360 ................ Screw, 20 x 1” Left Hand Thread ................................$ 5.20 B
10 711-4300 ................ Gasket, Left Hand Screw ............................................$ 10.32 B
11 IMPELLER ASSEMBLY
310-7430 ................ Champ E-115, S-120, S-220.......................................$ 73.00 B
310-7400 ................ Champ S-107, E-120, S-125, S-130, S-225 ...............$ 73.00 B
310-7410 ................ Champ E-107, S-110...................................................$ 73.00 B
310-7420 ................ Champ E-110, S-115, S-215 .......................................$ 73.00 B
310-7440 ................ Champ E-120, S-125, S-130, S-225 ...........................$ 73.00 B
310-7450 ................ Champ E-130..............................................................$ 73.00 B
13 311-1450 ................ Face Plate...................................................................$ 108.82 B
14 820-0017 ................Washer Plate (6 required)...........................................$ 1.00 B
15 819-0020 ................ Hex Bolt 3/8 - 16 x 1¼” (6 required)............................$ 4.42 B
16 819-0035 ................ Hex Bolt 3/8 - 16 x ⅞” (4 required)..............................$ 4.26 B
18 672-1310 ................Motor Support .............................................................$ 14.26 B
19 319-1500 ................Motor Base..................................................................$ 66.12 B
20 819-0013 ................ Hex Screw Slotted, ¼” x 1¼” (2 required)...................$ 1.70 B
Part #’s 1-15 make up Wet End
310-3010 ................ 1 HP Wet End .............................................................$ 516.06 B
310-3020 ................ 1.5 HP Wet End ..........................................................$ 516.06 B
310-3030 ................ 2 HP Wet End .............................................................$ 516.06 B
310-3050 ................ 3 HP Wet End .............................................................$ 516.06 B
HI-FLO SIDE DISCHARGE REPLACEMENT PARTS
SKU Number Description List Price Code
1 319-3260 ................ Lid - 6” Trap - Easy Lock.............................................$ 49.48 B
2 805-0436 ................ O-Ring - 6” Trap ..........................................................$ 4.04 B
3 319-3230 ................ 6” Trap Basket Assembly ............................................$ 20.38 B
4 715-1201 ................ Drain Plug ...................................................................$ 2.94 A
5 805-0112 ................ O-Ring Drain Plug.......................................................$ 0.72 B
6 319-2170 ................ 6” Trap Body 1½” FPT/1½” Buttress ..........................$ 56.20 B
x 2” Union Flange
7 711-4010 ................ Gasket 2” ....................................................................$ 1.00 A
8 819-1110 ................. Screw (8 required) ......................................................$ 1.78 B
9 311-2140 ................ Face Volute .................................................................$ 32.38 A
10 805-0256 ................ Face Flange O-Ring....................................................$ 7.32 A
11 319-1390 ................ Seal Ring 1 - 1.5 HP ...................................................$ 8.88 A
12 310-3990 ................ Impeller, High Flow, 3/4 HP.........................................$ 32.58 A
310-4000 ................ Impeller, High Flow, 1 HP............................................$ 32.58 A
310-4010 ................ Impeller, High Flow, 1.5 HP.........................................$ 32.58 A
310-4020 ................ Impeller, High Flow, 3 HP............................................$ 32.58 A
310-4030 ................ Impeller, High Flow, 2 HP............................................$ 32.58 A
13 315-2500 ................ Volute Housing............................................................$ 53.86 A
14 313-1400 ................ Slinger.........................................................................$ 1.42 A
