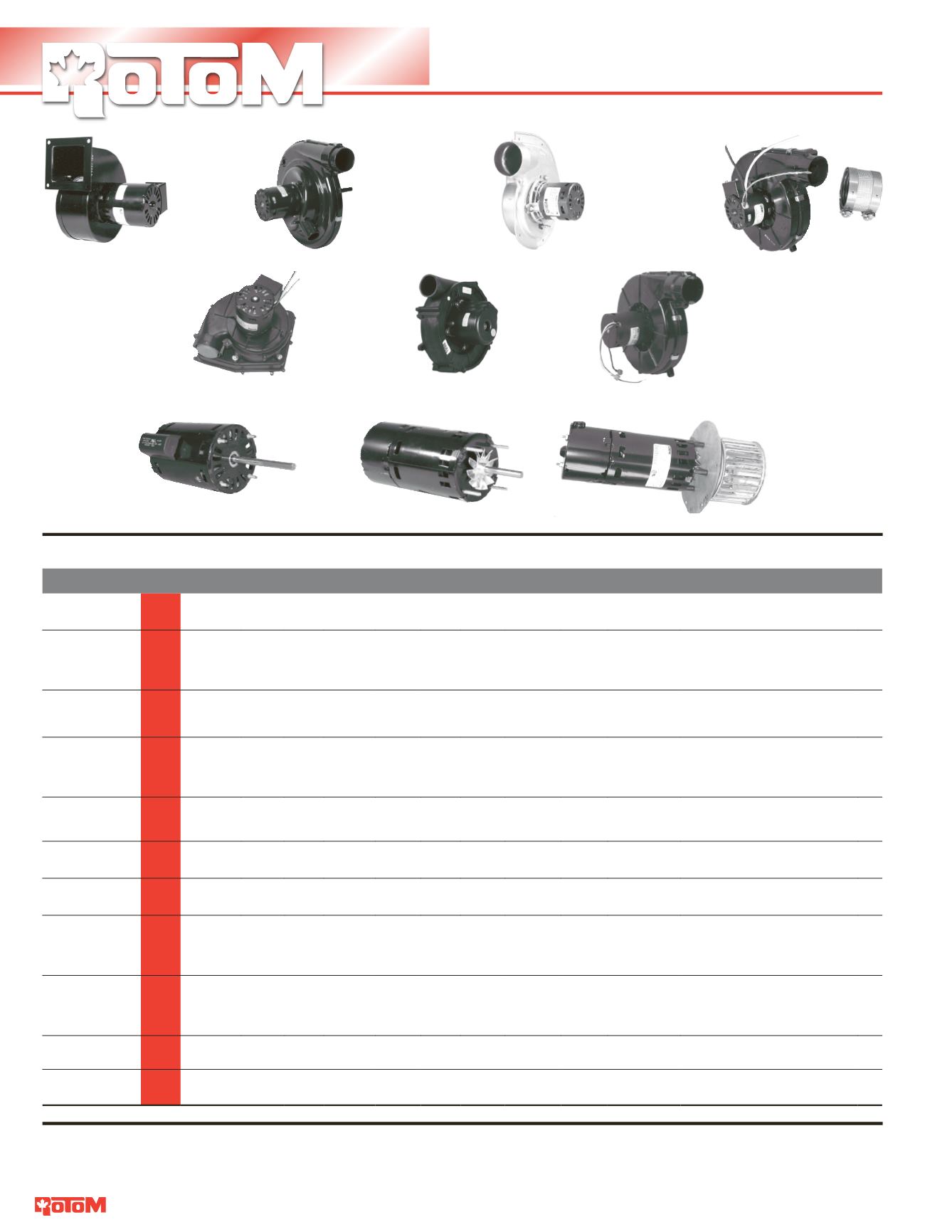

30
Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)
Coupling
Included
ICP
(cont. from previous page...)
Fig. 3
Fig. 4
Fig. 1
Fig. 2
*Notes:
1 - Vent Restrictor Orifice Plates: 92-1008696 ICP 50 & 75, 92-1008699 ICP 100, 92-1160415 ICP 125, Comes with coupling, pins, O-rings and gaskets
2 - The rear magnetic centrifugal switch found on most replacements has been built into these Rotom models
3 - Built-in centrifugal switch
Fig. 6
Fig. 7
Fig. 5
Part #
HP Volts Amps Type RPM Rot. Body Frame Bearing Cap Shaft
Cross
Fig
FB-RFB242
1/25
115 1.3 SP 1/3200 CCW 7.0" 3.3" Sleeve -
-
Keeprite, 702111099, B24220, CRC
1
FB-RFB350
1/25
115 0.8 PSC 1/3450 CW 7.10" 3.3" Ball
5/370 -
Keeprite CGJ, CGK High Eff. 50,
75, 100, 125 Res: 1011350
Hardware Connection Kit -
FB-RFB350-1
2
FB-RFB134
1/25
120 1.5 SP 1/3000 CCW 6.0" 3.3" Sleeve -
-
Keeprite, Heil, Comfortmaker NTC
Mid Eff. Res: 1010324, 1708607,
1010975, Airco, Tempstar
3
FB-RFB145
-1
1/25
120 0.7 PSC 1/3450 CW 5.3" 3.3" Ball
4/250 -
Keeprite, Heil, Comfortmaker NTGM
High Effi. Res: 1009924, 1009518,
1010527, 1011404, 1011412,
1164280, Airco, Tempstar
4
FB-RFB114
1/24
115 0.7 PSC 1/3450 CW 7.75" 3.3" Sleeve 4/250 -
Res: 7062-5165, 7062-3794,
7062-5922 Intercity 1149097,
1008416P A307
5
FB-RFB330
1/20
115 2.4 SP 3000 CCW 5.54" Skel
Ball
-
-
330701-701, 329148-701,
1013915
6
FB-RFB170
1/25
115 2.3 SP 1/2800 CW 5.75" 3.3" Ball
-
-
Res: 7021-10048,
7021-10580
7
FM-RFM232
-2
1/16
208/230 0.55 PSC 1/3450 CW 5.0" 3.3" Ball
4/370 2.8"×5/16"
HC30GB232, JF1H092N, 48TJE
90/120/150 Com. Roof Top,
ICP 1171348, JF1H092N Blw. Whl. -
66-A8660(4x1") 66-A8665(4x2")
8
FM-RFM462
-2
1/16
460 0.3 PSC 1/3450 CW 4.7" 3.3" Ball
4/370 3.3"×5/16"
HC30GB460, 48TJE 90/120/150
Com. Roof Top ICP 1171347
Blw. Whl. -
66-A8660(4x1")
66-A8665(4x2")
8
FM-RFM9
-3
1/15
208/230 1.1 SP 1/3000 CCW 6.4" 3.3" Ball
-
-
Keeprite Roof Top,
Blw. Whl. -
66-A8610
9
FB-RFB9
1/12
208/230 1.1 SP 1/3000 CCW 10.0" 3.3" Ball
-
-
Keeprite, Heil, Comfortmaker RGB
Series Roof Top
Com: 501493
10
OEM Replacement Motors
Fig. 9
Fig. 10
Fig. 8
