Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)
OEM Replacement Motors
Bradford White
Part # HP Volts Amps Type RPM Rot.
Body Frame Bearing Cap Shaft
Cross
Fig
FB-RFB149
1/25
115 1.80 SP 1/3300 CCW 6.87" 3.3" Sleeve -
-
Fasco A149, 7021-7761, AO
Smith 9458
1
Carrier
(cont. next page...)
Part # HP Volts Amps Type RPM Rot. Body FrameBearing Cap Shaft
Cross
Fig
FB-RFB212
-1
1/30
115 1.60 SP 1/3000 CCW 6.3" Skel
Ball
-
-
Bryant, Payne Mid Eff., Res.
HC21ZE117-13, 318984-753,
818984753, 58SSE08Q-BC
Series 130
Blw. Whl. -
66-A8664
2
FM-RFM580
1/20
115 1.9 SP 1/3000 CCW 3.5" 3.3" Sleeve -
1.9"×5/16"
Hi Eff.Res. Carrier
HC680001, HC27VE12,
V579, V580, UE580,
JA1P053N, Bryant P251-
2307
3
FM-RFM4
-2
1/20
115/230 2.2/1.1 SP 1/3000 CW 6.5" 3.3" Ball
-
2.3"×1/4"
Comm. Magnetek 571,
Carrier HC24AU700, UE571
Blw. Whl. -
66-A8655
4
FM-RFM5
-2
1/20
115/230 2.1/1.1 SP 1/3000 CCW 6.5" 3.3" Ball
-
2.3"×1/4"
Comm. Magnetek
570,UE570, Fedders
S1900047003
Blw. Whl. -
66-A8655
4
UE-433
-2
1/20
115/230 .71/.38 PSC 1/1550 Rev. 6.4" 3.3" Ball 7.5/370 4.2"×1/4"
Comm. Magnetek 433,
FM-RFM433
4
FM-RFM680
-2
1/16
115/230 1.0/0.5 PSC 1/3450 Rev. 7.0" 3.3" Ball 7.5/370 1.2"×1/4"
Comm. Rooftop, HC680001B,
York 024-24115-001, 701
Blw. Whl. -
66-A8660(4x1")
66-A8665(4x2")
5
*Notes:
1 - Comes with two (2) wiring harnesses
2 - Comes with 5/16" shaft adapter & Built-in centrifugal switch

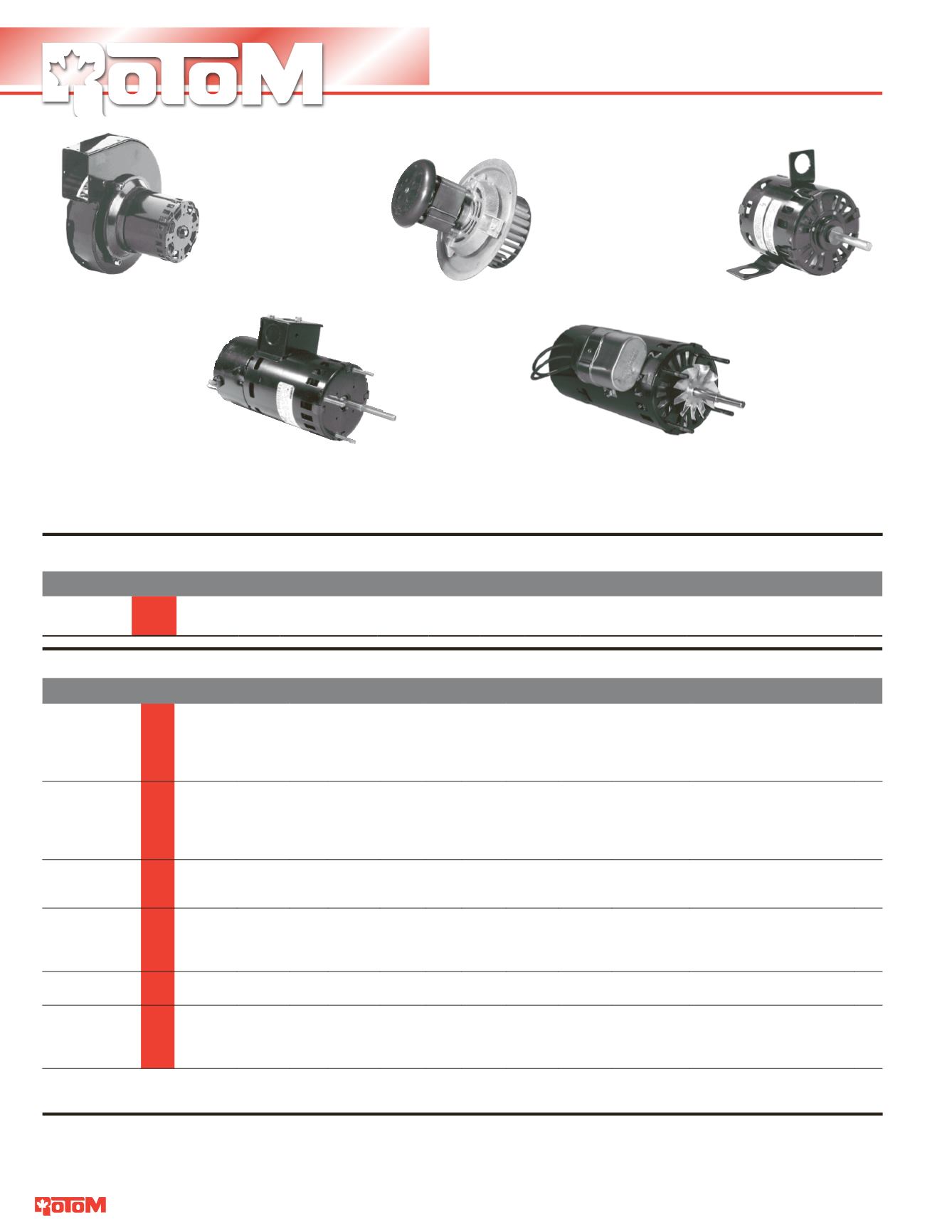

Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 1
