25
Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)
OEM Replacement Motors
Carrier
(cont. from previous page...)
Consolidated Industries

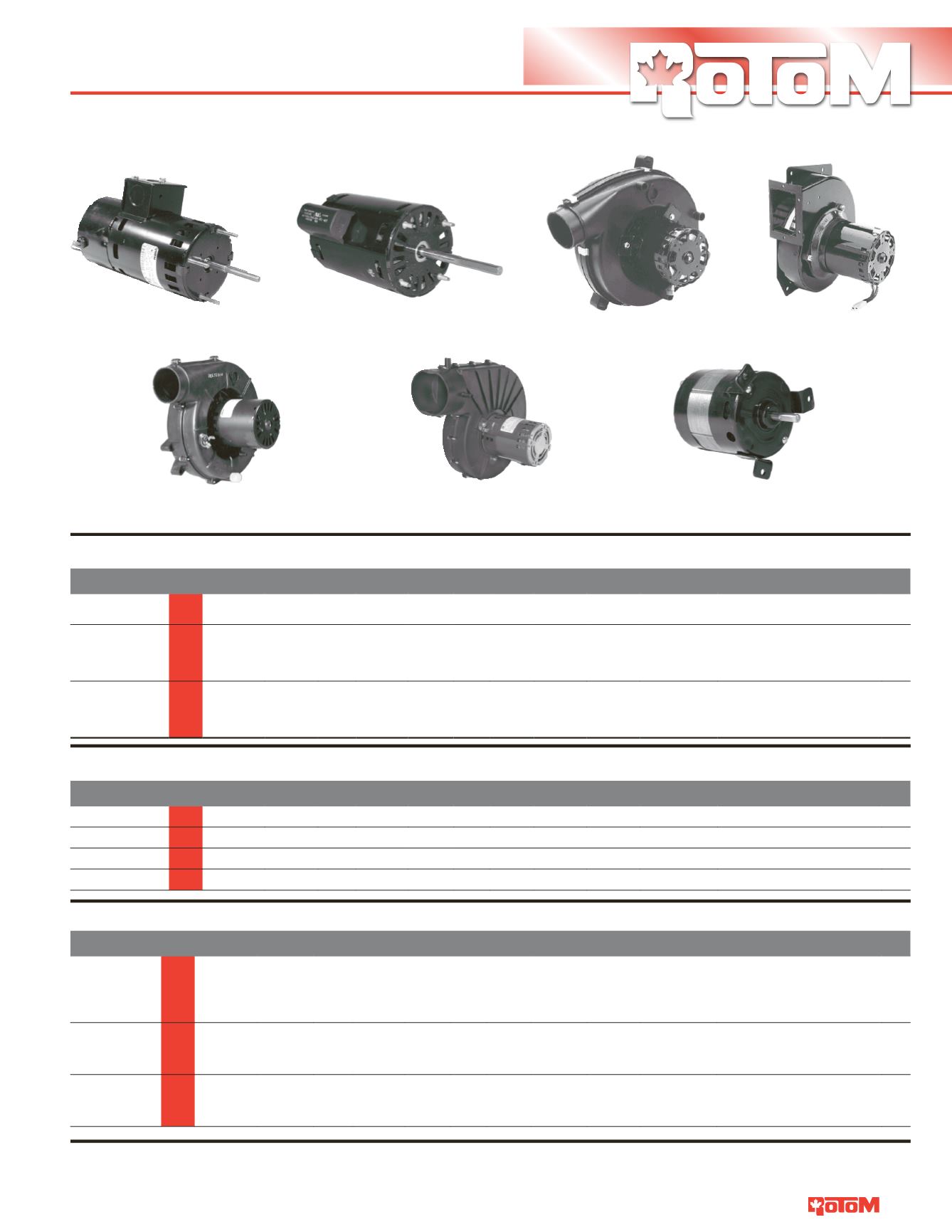

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Clare
(cont. next page...)
Part # HP Volts Amps Type RPM Rot. Body Frame Bearing Cap Shaft
Cross
Fig
FB-RFB140
1/49
115 1.4 SP 1/3400 CCW 5.6" 3.3" Sleeve -
-
Consolidated CHU 54-3,
73-3 High Eff. Res: 4246100,
420950 Fasco 7021-9087,
JAIN107NS
5
FB-RFB52
1/20
115 0.85 SP 1/3000 CCW 6.9" 3.3" Sleeve -
-
High Eff Universal Fit,
Res: Clare V52 M053, HEG &
HEHB 80A Series
6
FM-RFM11
1/20
115 1.80 SP 1/3100 CCW 3.6" 3.3" Sleeve -
1.5"×5/16"
Residential: Clare V15,
Internal Fan, M045,
2862511004
7
Fig. 5
Fig. 6
Fig. 7
Part # HP Volts Amps Type RPM Rot. Body FrameBearing Cap Shaft
Cross
Fig
FM-RFM653
-1
1/16
230/460 1.2/.6 SP 1/3000 CCW 6.6" 3.3" Ball
-
2.3"×1/4"
Comm. Magnetek 653
Blw. Whl. -
66-A8655
1
FM-RFM232
-2
1/16
208/230 0.55 PSC 1/3450 CW 5.0" 3.3" Ball
Inc 2.8"×5/16"
HC30GB232, JF1H092N, 48TJE
90/120/150 Comm. Roof Top
Blw. Whl. -
66-A8660(4x1")
66-A8665(4x2")
2
FM-RFM462
-2
1/16
460 0.30 PSC 1/3450 CW 4.7" 3.3" Ball
Inc 3.3"×5/16"
HC30GB460, 48TJE 90/120/150
Comm. Roof Top
Blw. Whl. -
66-A8660(4x1")
66-A8665(4x2")
2
Part # CFM Volts Amps Type RPM Rot. Body FrameBearing Cap Shaft
Cross
Fig
FB-RFB580
90
115 1.35 SP 1/3200 CCW 5.98" 3.3" Sleeve -
-
JAIN107, 490950, 4246100
3
FB-RFB431
90
115 1.73 SP 1/3200 CCW 5.98" 3.3" Sleeve -
-
JAIN118, 430590, 4311201
3
FB-RFB570
95
115 0.90 SP 1/3300 CCW 6.20" 3.3" Sleeve -
-
UE JA1P082, 401570
4
FB-RFB450
105
115 1.41 SP 1/3300 CCW 6.33" 3.3" Sleeve -
-
UE JA1P090, 401450
4
*Notes:
1 - Comes with 5/16" shaft adapter & Built-in centrifugal switch
2 - The rear magnetic centrifugal switch found on most replacements has been built into these Rotom models
