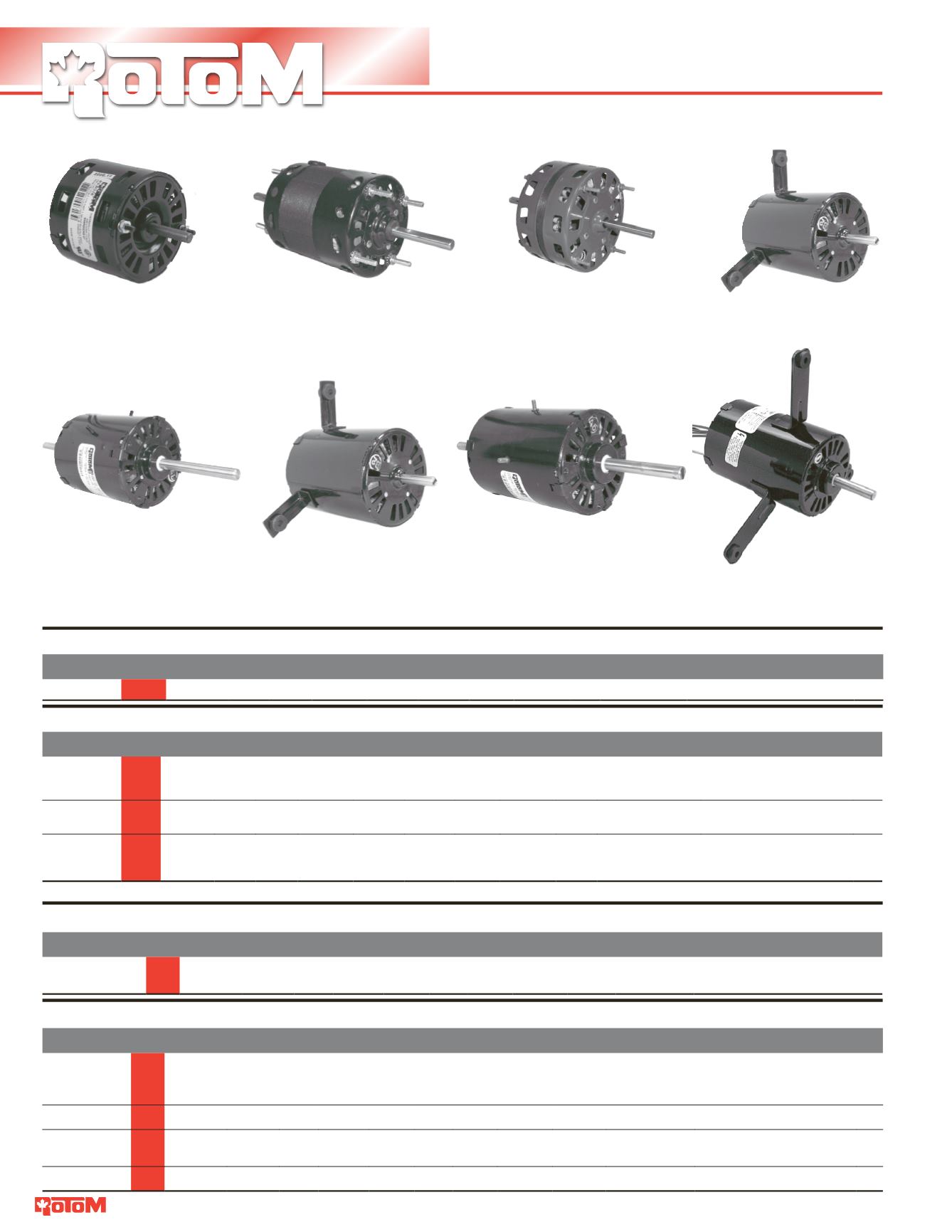

22
Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)
HRV Motors
Part # HP Volts Amps Type RPM Rot.
Body Frame Bearing Cap Shaft
Cross
Fig
R3-R316
1/20
115 1.4 SP 1550 CCW 2.7" 3.3" Ball
-
1.6" × 1/4"
80093
1
Part # HP Volts Amps Type RPM Rot.
Body Frame Bearing Cap Shaft
Cross
Fig
O1-R465
1/15
115 2.3 SP 3/1550 CCW 4.0" 3.3" Sleeve -
2.3"×5/16"×2.1"
Electrohome
2868-513-133, 152,
Nutech Lifebreath 23202
2
M4-R2655
1/12
115 1.10 PSC 1/1550 CCW 3.0" 5.0" Sleeve 5/370 2.5"×3/8"×2.4"
AO812B2355, Fasco 7184-
0254
3
M4-R2324
1/12
115 1.80 PSC 1/1550 CCW 3.6" 5.0" Ball 3/370 2.7"×3/8"×2.6"
Nubreath 23-204,
GE5KCP298G8560BS,
Fasco 7185-0242
3
Vanee
Air 2000
Nutech
Venmar
Part #
HP Volts Amps Type RPM Rot. Body Frame Bearing Cap Shaft
Cross
Fig
R3-R348
1/15
110/115 1.12 PSC 2/1550 CCW 4.1" 3.3" Sleeve 4/370 3.35"×3/8"
Heat Recovery Motor
M1703, Fasco 7190-0369
4
Part # HP Volts Amps Type RPM Rot. Body Frame Bearing Cap Shaft
Cross
Fig
R2-R462
1/17
115 0.90 PSC 3/1660 CW 4.13" 3.3" Sleeve 7.5/370 3.5"×3/8"×3.5"
02101, Fasco 7190-2271, Kit
12027, 12029, 12109
5
R2-R438
1/14
115 1.03 PSC 2/1600 CW 4.31" 3.3" Sleeve 4/370 1.55"×5/16"
01038, Fasco 7190-2008
6
R3-R366
1/7
115 1.68 PSC 3/1630 CW 4.78 3.3" Sleeve 7.5/370 2.97"×3/8"×3"
02100, Fasco 7190-1523, Kit
1206, 12151
7
R2-R422
1/6
115 2.89 PSC 3/1690 CW 4.93" 3.3" Sleeve 7.5/370 2.06" × 3/8"
02209, Fasco 7190-1522
8
Fig. 7
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 8
Fig. 5
Fig. 6
