MAGNETIC PICK-UP KITS
Magnetic pick-ups (digital velocity transducers) are used to provide shaft speed information for digital rate indicators (VT8 Series)
AND DIGITAL VELOCITY SERVOS $,#
Magnetic pick-ups are generally used in high speed shaft applications where the pick-up is directly monitoring motor shaft speed.
Ê
/Ê* Ê1*ÊUÊ*1 Ê- , -
MODEL PK1
This versatile kit includes a magnetic pick-up, 30 tooth pick-up wheel, and four different
hubs. The hubs have 5/16”, 3/8”, 1/2” and 5/8” bore sizes to quickly accommodate
various sized shafts.
The PK1 can be used to directly monitor shaft speed or to monitor another shaft that has
a direct relationship to the prime mover.
Minimum RPM is 40.
DISCOUNT SYMBOL A
MODELS PK15 / PK 16
These kits are provided with a magnetic pick-up mounted in a convenient NEMA C face adapter
ring and a 60 tooth pick-up wheel.
The PK15 has a 5/8” diameter hub for use with 56C face motors, while the PK16 has a 7/8”
diameter hub for use with 143TC or 145TC frame motors.
The PK15 and PK16 are for mounting directly to C face motors between the motor and the load.
Minimum RPM is 40.
MODEL
PK-15
and
PK-16
PICK-UP
KITS

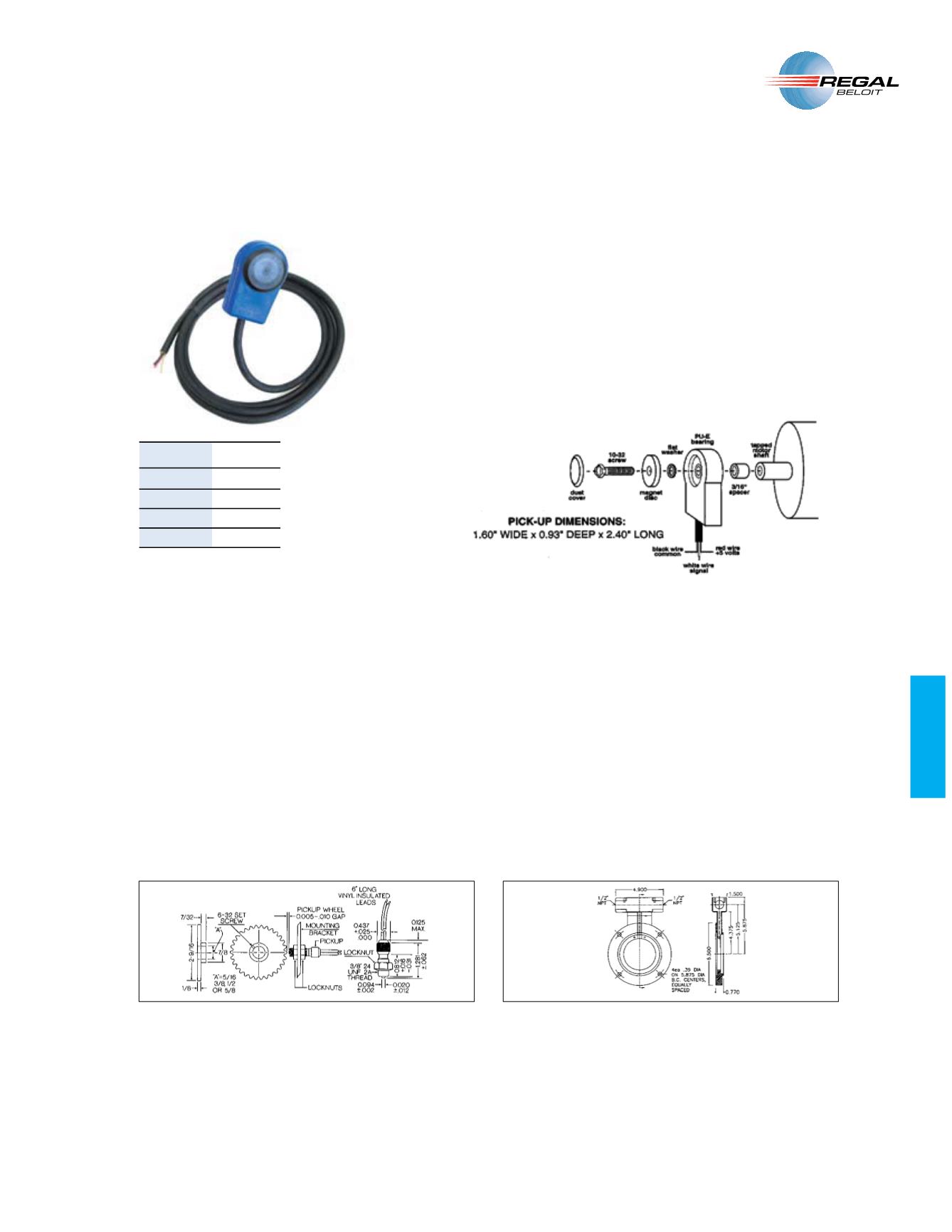

The PU-E Series pick-up is an economical and reliable way to monitor motor speed. Its patented
design provides ease of installation in otherwise difficult to reach areas.
The PU-E pick-up operates at a 5 to 24 volt level producing a sharp square wave output, which
may be fed into Dart’s field programmable tachometer, closed-loop control, counter, or most other
digital devices.
The PU-E pick-up series also includes a quadrature model to monitor both motor speed and direction
by providing two square wave output signals approximately 90° out-of-phase.
Model
Pulses/Rev
PU-2E
1
PU-4E
2
PU-20E
20
PU-20EQUAD
20
Mounting Procedure
1. Tap motor shaft 10-32 x 1/2” deep
2. Remove red cap on pick-up screw
3. Remove back dust cover from P/U
4. See illustration
