Drives
DC ADJUSTABLE SPEED DRIVES
ALSO AVAILABLE

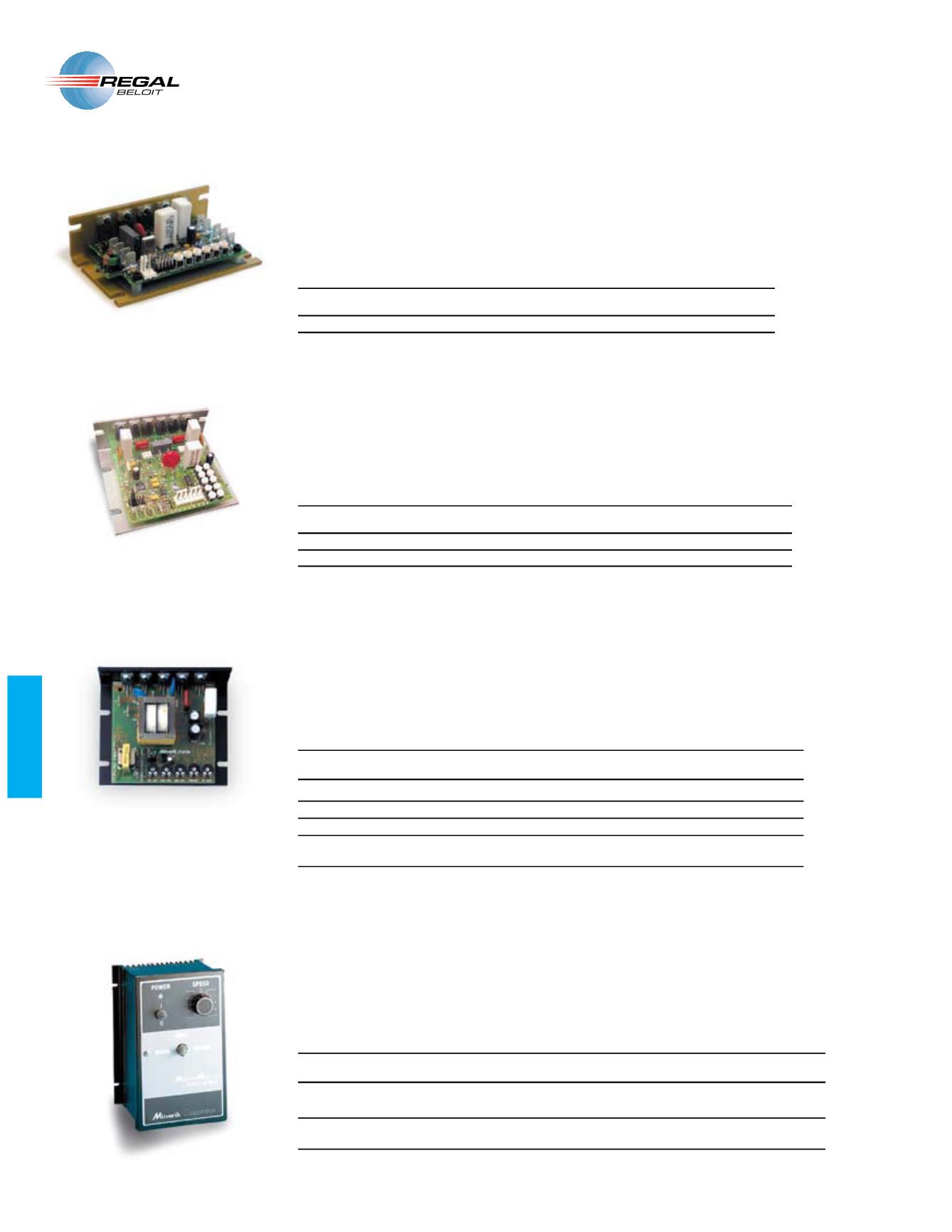

M1 SERIES
The M1 series is a very compact drive rated
up to 1/2hp (1hp with heatsink). The M1 has
a chip that can be factory pre-programmed
for customer trimmer pot ranges. The M1
includes the inhibit function, a jumper to
calibrate for smaller motors 1/15 to 1/8HP),
six trimmer pots and a wide IR compensation
range. Extremely compact size and program-
mability make the M1 perfect for both OEM’s
and users.
The M2 series provides the power of two
drives in one. Independently control two
different DC motors in speed or torque
control. In the speed control mode, you can
run the two motors independently or in ratio
to each other. In ratio mode, the drive
replaces two drives and a master/follower
card too. The M2 drive is micro processor
based and can be customized without
hardware changes.
The PCM20000A series are SCR isolated
open chassis drives for 1/20 to 2Hp brushed
motors. The drives integrate isolation
allowing them to accept external analog
process control signals. Users can operate
the drives in manual mode using normal
potentiometer operation or in signal mode
where drive output is proportional to an
external signal output.
The PCM23400A series are SCR isolated
NEMA 4X closed drives for 1/20 to 2HP DC
brushed motors. These full-waved rectified
drives are a cost effective solution for
variable speed, process control applications
requiring protection from washdown, dirt
and other corrosive elements. For added
versatility, these drives have integrated
isolation.
ÓÊ- , -ÊUÊ, / " Ê , 6 ÊUÊ/7"Ê , 6 -Ê Ê"
* Ê- , -ÊUÊ
-- -Ê7ÉÊ -" / "
* Ê- , -ÊUÊ "- Ê7ÉÊ -" / "
Model
Input Voltage
Output Voltage Max Output
Form
HP
(VAC)
(VDC)
Current
Factor
Rating
M1
115
0-90VDC
10*
1.37
1/15-1@90VDC
* Needs heatsink model #223-0159 above 5 amps maximum Hp without heat sink is 1/2 Hp.
Model
Input Voltage Output Voltage Max Output
Form
HP
Total Hp rating
(VAC)
(VDC)
Current
Factor
Rating
on both sides
M2
115
0-90VDC
5*
1.37
1/15-1/2
5/8
M2 W/heatsink
115
0-90VDC
10*
1.37
1/15-1
1
1
⁄
8
* Needs heatsink model #223-0159 above 5 amps.
Model
Input Voltage Output Voltage Max Output
Field
HP
Signal
(VAC)
(VDC)
Current
Supply
Rating
Input
PCM21010A
115
0-90
2
None
1/20-1/8 @ 90VDC 0-10VDC
PCM21000A
115
0-90
10.0*
None
1/4-1* @90VDC
0-10VDC
PCM22000A
230
0-180
10.0*
None
1/2-2* @180VDC
0-10VDC
PCM23001A
115/230
0-90 or 0-180
10
50/100/200
1/8-1 @ 90VDC 0-10VDC or
(1 amp)
1/4-2 @180VDC
4-20 mA
* Needs heatsink model #223-0159 above 5 amps.
Model
Input Voltage Output Voltage Max Output
Field
HP
Signal
(VAC)
(VDC)
Current
Supply
Rating
Input
PCM23411A
115/230
0-90 or 0-180
3
50/100/200 1/20-1/8 @ 90VDC
0-10VDC or
(1 amp)
1/8-1/4 @180VDC
4-20 mA
PCM23401A
115/230
0-90 or 0-180
10
50/100/200
1/8-1 @ 90VDC
0-10VDC or
(1 amp)
1/4-2 @180VDC
4-20 mA
