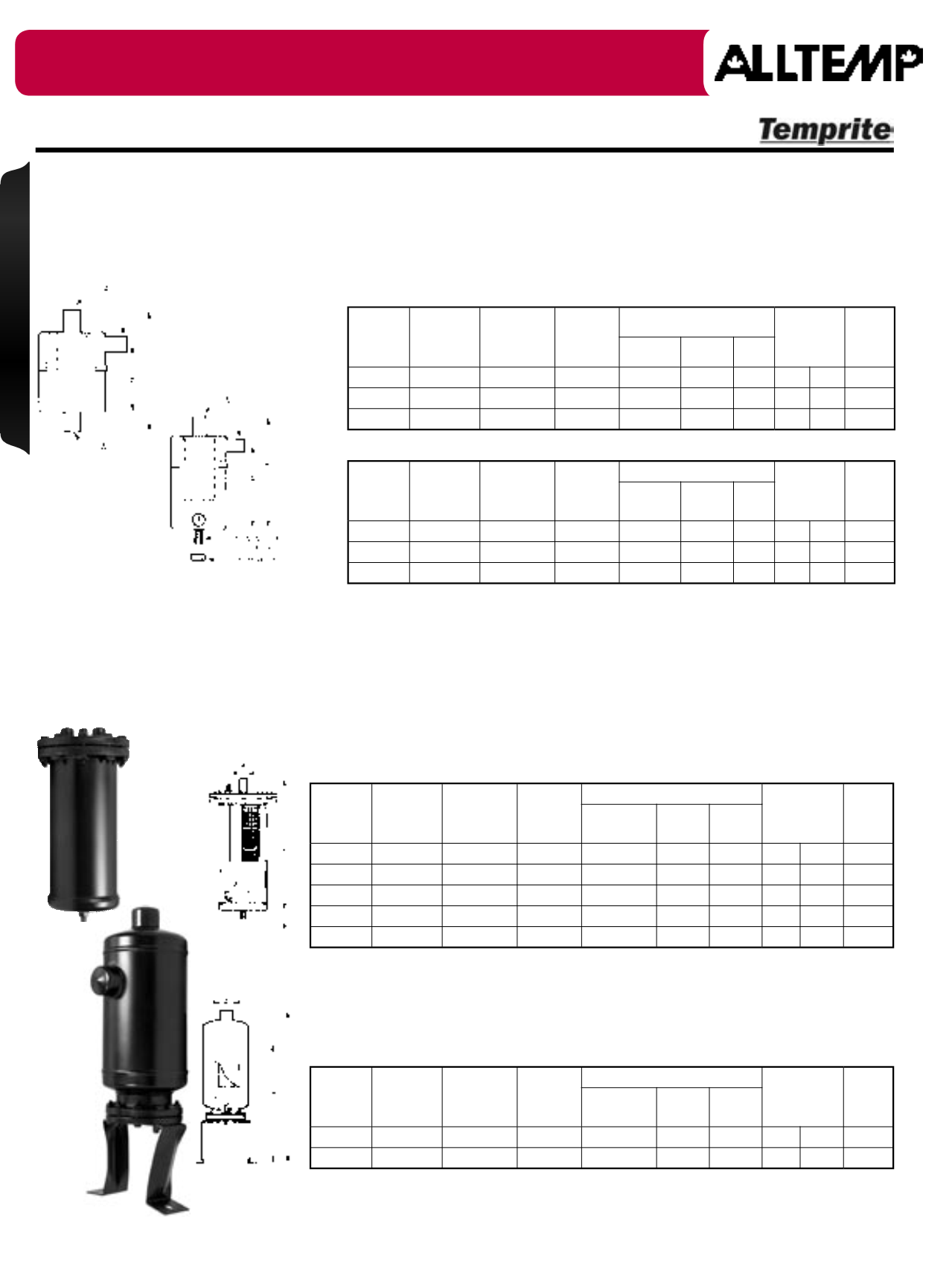

Refrigeration
Oil Separator - Hermetic Coalescent
Part #
Maximum
Working
Pressure
Oil
Connector
Size
Diameter
Dimensions
Oil
Change
Amount
Weight
"A "B"
"C"
58-320
500 PSIG 3/8" ODS 2 1/2" 3/8" ODS 2 1/16" 4 1/4" -
-
1lbs.
58-321
500 PSIG 1/8" FPT 2 1/2" 1/8" FPT 2 1/16" 3 1/2" -
-
1lbs.
58-322
500 PSIG 1/4" SAE 2 1/2" 1/4" SAE 2 1/16" 4"
-
-
1lbs.
Oil Separator - Hermetic Coalescent
Part #
Maximum
Working
Pressure
Oil
Connector
Size
Diameter
Dimensions
Oil
Change
Amount
Weight
"A"
"B"
"C"
58-340
500 PSIG 3/8" ODS 2 1/2" 3/8" ODS 3 9/16" 4 7/8" -
-
2lbs.
58-341
500 PSIG 1/8" FPT 2 1/2" 1/8" FPT 3 9/16" 4 1/2" -
-
2lbs.
58-342
500 PSIG 1/4" SAE 2 1/2" 1/4" SAE 3 9/16" 4 3/4" -
-
2lbs.
Oil Separators - Hermetic Coalescent
The Temprite 58-320 & 58-340 Series
These are the first oil separators specifically designed for refrigerant recovery/reclaim systems and are 99.9999%
effective in removing oil from the mass flow. The elimination of the float ball and internal oil reservoir maximizes
efficiency by minimizing oil carryover. It also has the advantage of being one of the smallest oil separators available
for its capacity. Metering the oil return back to the compressor may be done by a variety of methods including a
capillary tube, a metered orifice or a timed solenoid.
Oil Separator - Accessible Impingement
Part #
Maximum
Working
Pressure
Oil
Connector
Size
Diameter
Dimensions
Oil Change
Amount
Weight
"A"
"B"
"C"
58-501
450 PSIG 1/4" SAE 4"
1/2" ODS 10 1/4" 3/4" 16oz 475ml 10lbs.
58-502
450 PSIG 1/4" SAE 4"
5/8" ODS 12 7/8" 3/4" 16oz 475ml 11lbs.
58-503
450 PSIG 1/4" SAE 4"
7/8" ODS 14 5/8" 3/4" 16oz 475ml 12lbs.
58-504
450 PSIG 1/4" SAE 4"
1 1/8" ODS 15 1/2" 3/4" 16oz 475ml 12lbs.
58-505
450 PSIG 1/4" SAE 4"
1 3/8" ODS 18 7/8" 3/4" 16oz 475ml 13lbs.
Oil Separator - Accessible Impingement
Part #
Maximum
Working
Pressure
Oil
Connector
Size
Diameter
Dimensions
Oil Change
Amount
Weight
"A"
"B"
"C"
58-506
450 PSIG 1/4" SAE 6"
1 5/8" ODS 15 1/4" 20 1/4" 20oz 590ml 21lbs.
58-507
450 PSIG 1/4" SAE 6"
2 1/8" ODS 16 1/4" 21 1/2" 20oz 590ml 24lbs.
The Temprite 58-500 & 58-600 Series
These are impingement screen type oil separators. They work by having the compressed mass flow enter into a
larger separator chamber which lowers the velocity and then the atomized oil droplets collect on the impingement
screen surfaces. As the oil droplets agglomerate into large particles, they fall to the bottom of the separator
oil reservoir. The 58-600 Series is designed for the OEM who needs oil separation, but does not require the
accessibility of the 58-500 Series. Models 58-508, 509 and 510 are built to ASME Certified Pressure Vessels
codes. See your local HVAC/R Wholesaler for replacement parts for the 58-500 Series.
58-320
Series
58-340
Series
58-501
to
58-505
Series
58-506
to
58-507
Series
58-501
Illustrated
58-506
Illustrated
Oil Separators
