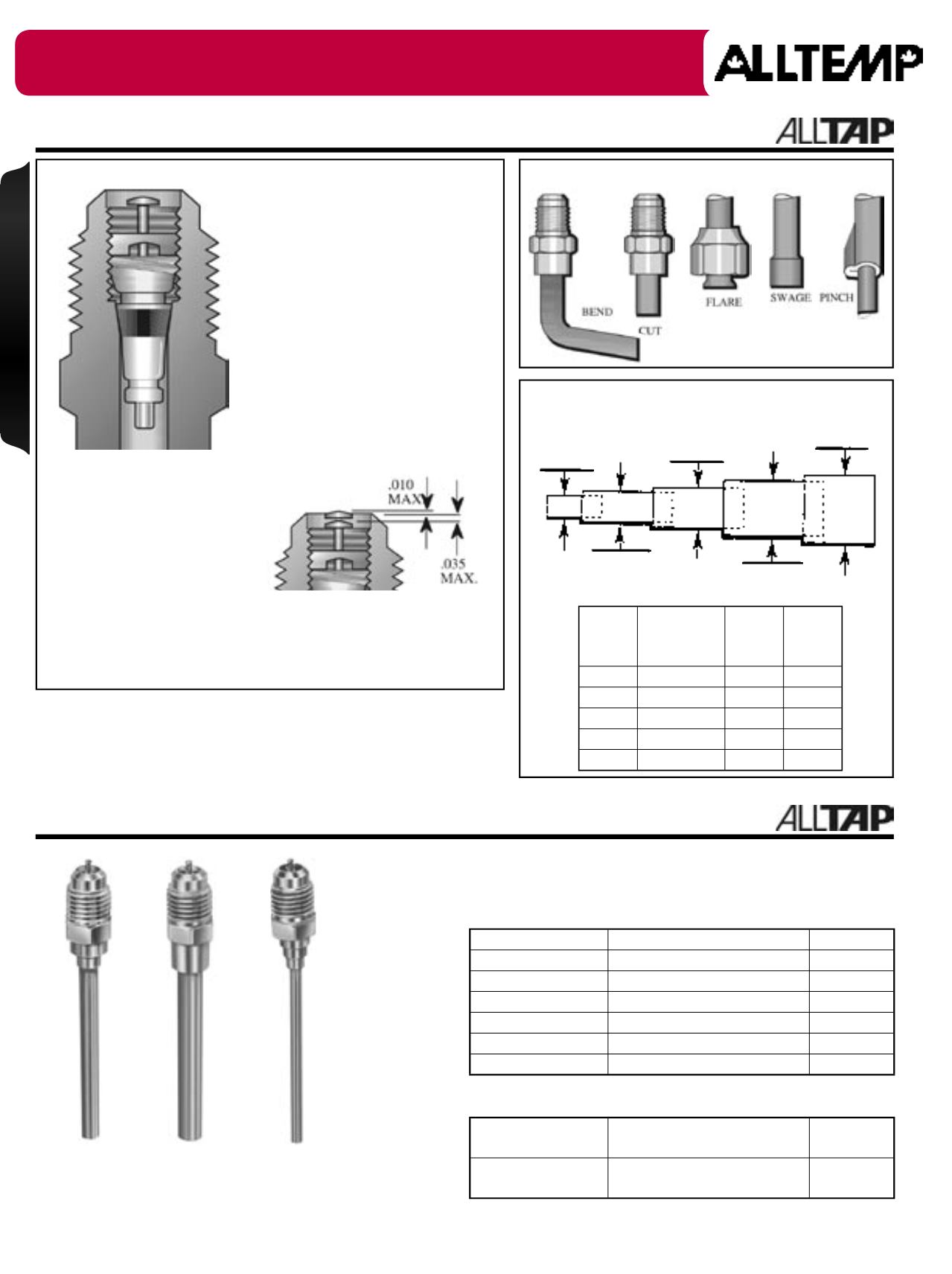

Access & Service Valve Features
1/4" Access
Copper Tube Extensions
• Extension length approximately 2".
• Use with copper fitting.
• Install through side of larger line.
Part #
Description
Package
02-C31002
1/8" OD
5/pk
02-C31003
3/16" OD x 1/8" ID
5/pk
02-C31004
1/4" OD x 3/16" ID
5/pk
02-C31005
5/16" OD x 1/4" ID
5/pk
02-C31006
3/8" OD x 5/16" ID
5/pk
02-C31008
1/2" OD
3/pk
Multi-Step
02-C31009
1/8" Ext.; 3/16", 1/4" and 5/16"
Body Steps
5/pk
02-C31011
3/16" Ext.; 1/4" and 3/8" Body
Steps
5/pk
Use flux free phos-copper solder. • Note: OD x ID sizes are for copper tube extensions.
02-C31002
to
02-C31008
Illustrated
02-C31009
Illustrated
02-C31011
Illustrated
Connecting Line Size
OD
Tube
Size
ODF
International
Tub Fit
ODF
External
Tube Fit
Swage
Fit
1/8"
-
3/16"
-
3/16"
1/8"
1/4"
3/16"
1/4"
3/16"
5/16"
1/4"
5/16"
1/4"
3/8"
5/16"
3/8"
5/16"
-
3/8"
1/8" OD
3/16" OD
1/4" OD
3/8" OD
5/16" OD
Air Conditioning & Refrigeration
Copper Tube Fitting Guide
Features
• Valves are machined according to strict
specifications of the ARI - Your assur-
ance of proper sealing of valve and core
surfaces.
• Generous counter bore permits re-
moval of core if flare becomes damaged.
• All tees and crosses are tapped to
receive an access core in all 1/4" SAE
flare ends.
• All pipe connections have internal
braze cups for dip tube application.
• Furnished with cap and one valve core
(solder type loosely assembled).
Specifications
ARI Standard:
720 to 97
Temp. Range:
-40°F to 400°F.
Pressure:
800 psig.
Valve Bodies:
Brass.
Valve Core:
Stainless steel and
brass for use with all refrigerants
such as R12, R22, R134a and
R502. Resistant to oils, alkalies
and dilute mineral acids. ARI
torque 1.5 to 3.0 in/lb.
Valve Core Pin Location
After valve installation, replace
valve core with valve core re-
mover. Torque 2.8 in/lbs.
Access & Service Valves
Copper Tube Ends
Access Fittings
