Refrigeration

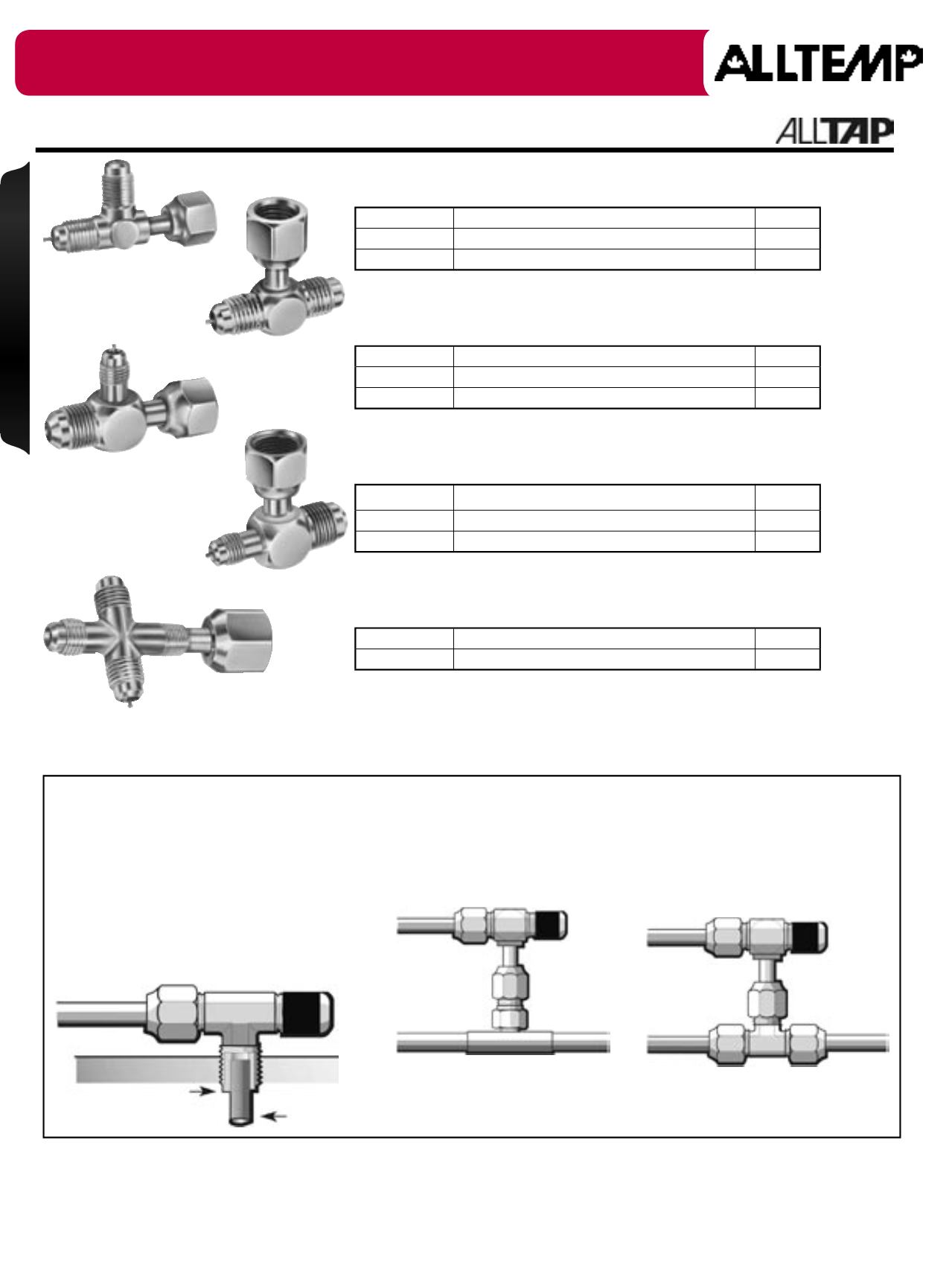

Swivel Flare Connections
Swivel Flare Connection
• Tee with depressor.
Part #
Description
Package
02-C31851
1/4" female SAE swivel nut on run.
3/pk
02-C31852
1/4" female SAE swivel nut on branch.
3/pk
Swivel Flare Connection
• Tee without depressor.
Part #
Description
Package
02-C31854
1/4" female SAE swivel nut on branch.
3/pk
02-C31864
1/4" female SAE swivel nut on run.
3/pk
Swivel Flare Connection - 3/8" SAE Tee
Part #
Description
Package
02-C31853
3/8" SAE x 3/8" female SAE swivel nut x access.
1/pk
02-C31856
3/8" SAE x access x 3/8" female SAE swivel nut.
1/pk
Swivel Flare Connection - Cross
• Cross with depressor.
Part #
Description
Package
02-C31520
1/4" female SAE swivel nut x access.
1/pk
Torque flare nuts 8 to 10'/lbs
*Core pre-torqued at 2.9 to 2.95 "/lbs
02-C31851
02-C31864
Illustrated
02-C31852
02-C31854
Illustrated
02-C31853
Illustrated
02-C31856
Illustrated
02-C31520
Illustrated
Note - All access valves are available in bulk packaging of 100 pieces. by adding suffix "-B" to part number.
Swivel Flare Connections
Add Multiple PortsWith Just One Fitting!
• All flare ends are tapped to receive access core.
• Various end configurations provide greater flexibility.
• One core and cap packaged with each valve.
• Safe, simple installation with no brazing.
Typical Swivel Flare Installation
After installation, rotate valve for best hook-up position.
Typical MPT Installation
All MPT connections have internal solder cup for dip
tube installation.
Swivel flare with core depressor installed on
existing access valve. Add a new line or control.
No refrigerant loss during installation on
charged system.
Valve without depressor installed on flare fitting.
Multiple ports provide additional line or controls
and access site.
Dip Tube
Pipe Tap
Access Fittings
