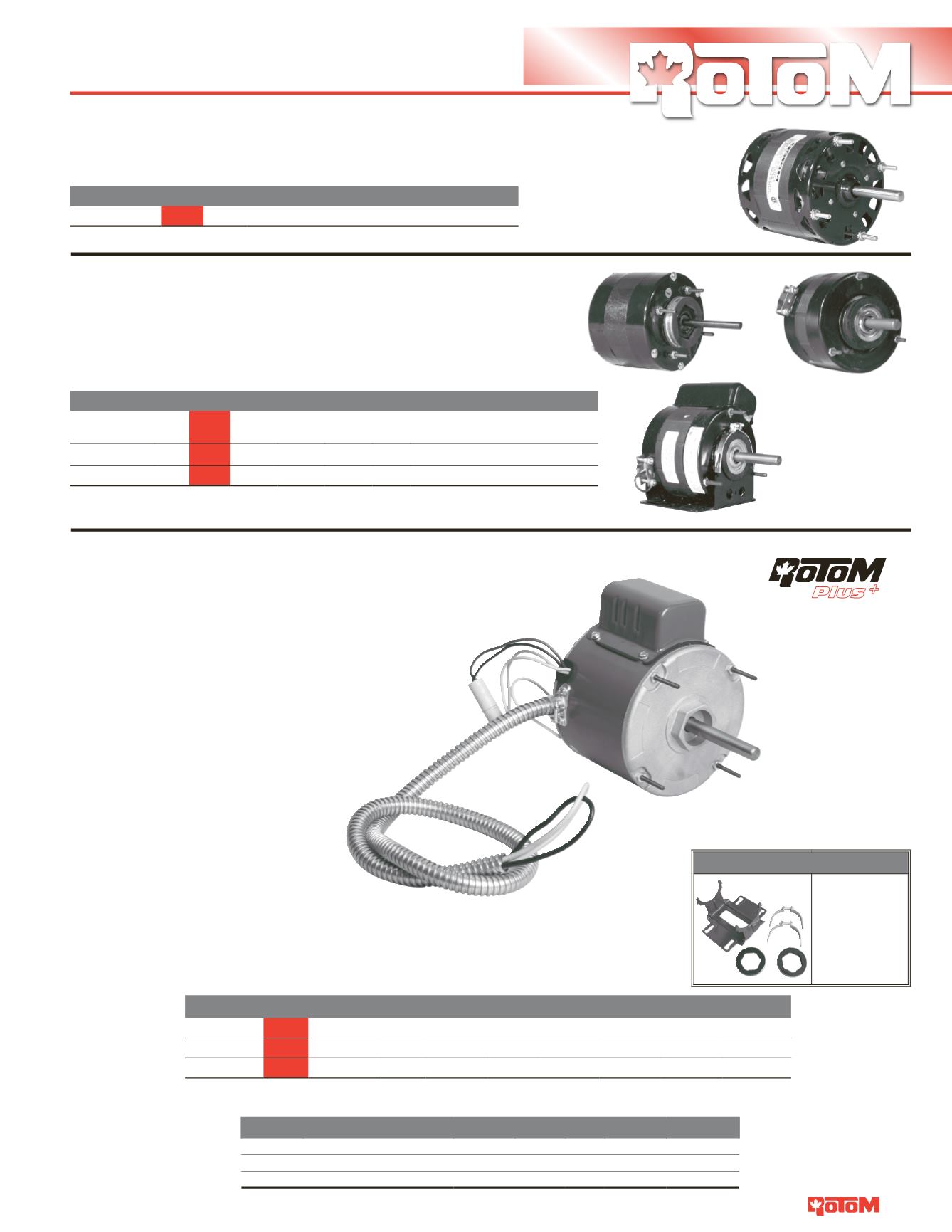

13
Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)
Optional Base
UH-UHK
Optional Mounting
Base For UH- Series
Unit Heaters.
Includes Base,
Brackets & Resilient
Rings.
Unit Heater
Part # HP Volts Amps Cap.
RPM Rotation A Dim. Bearing Shaft
UH-9034
1/6
115
2.4 5/370 1/1075 Revers.
4.52"
Ball
1/2"×3.4"
UH-9035
1/4
115
4.1 5/370 1/1075 Revers.
4.52"
Ball
1/2"×3.4"
UH-9036
1/3
115
5.0 7.5/370 1/1075 Revers.
4.52"
Ball
1/2"×3.4"
Capacitor Included
Features
• 48 Frame
• 5.5" Diameter
• Totally Enclosed
• Mounting: 4 Stud Pattern
• 60 Hz
• Ball Bearing
• Shaft: 1/2" × 3.4"
• Reversible
• Permanent Split Capacitor
• 60°C Ambient
• Insulation Class B
• Thermally Protected
Cross Reference
Rotom
AO Smith
Emerson Fasco GE Marathon UE
UH-9034
UH1016, US1016, US1016NB 9034
D834 3206 X302, X306 177, 749
UH-9035
UH1026, US1026, US1026NB 9035
D734 3208 X303, X307 566, 734, 750
UH-9036
UH1036, US1036, US1036NB 9036
D732 3212 X304, X308 183, 751
+
Unit Heater Motors
Part # Fig. HP RPM Amps Rot Type
Cross
M4-R6920
A
1/15
1/1050 3.40 CCW SP
P8-6920, 54028, A0516, A2160,
E62788, E62862, E62A15
T2-R2360
B
1/15
1/1050 3.30 CCW SP
45330,45331,45332,D143
T2-R2380
C
1/8
1/1075 2.60 CCW PSC
170-45888, 55681, 9775, 380, D260
Part #
HP Amps RPM Shaft
Cross
M3-R2614
1/12
2.25 1550 2.0" × 3/8"
C16230
Fig. A
Lennox
ICP
Keeprite
Fig. B
Reznor
Fig. C
Robbins & Myers
Reznor
5.5" Unit Heater Motors
5.0" Unit Heater Motors
4.0" Unit Heater Motor
Features
• 115 Volt • CCWLE
Features
• 115 Volt • Totally Enclosed
