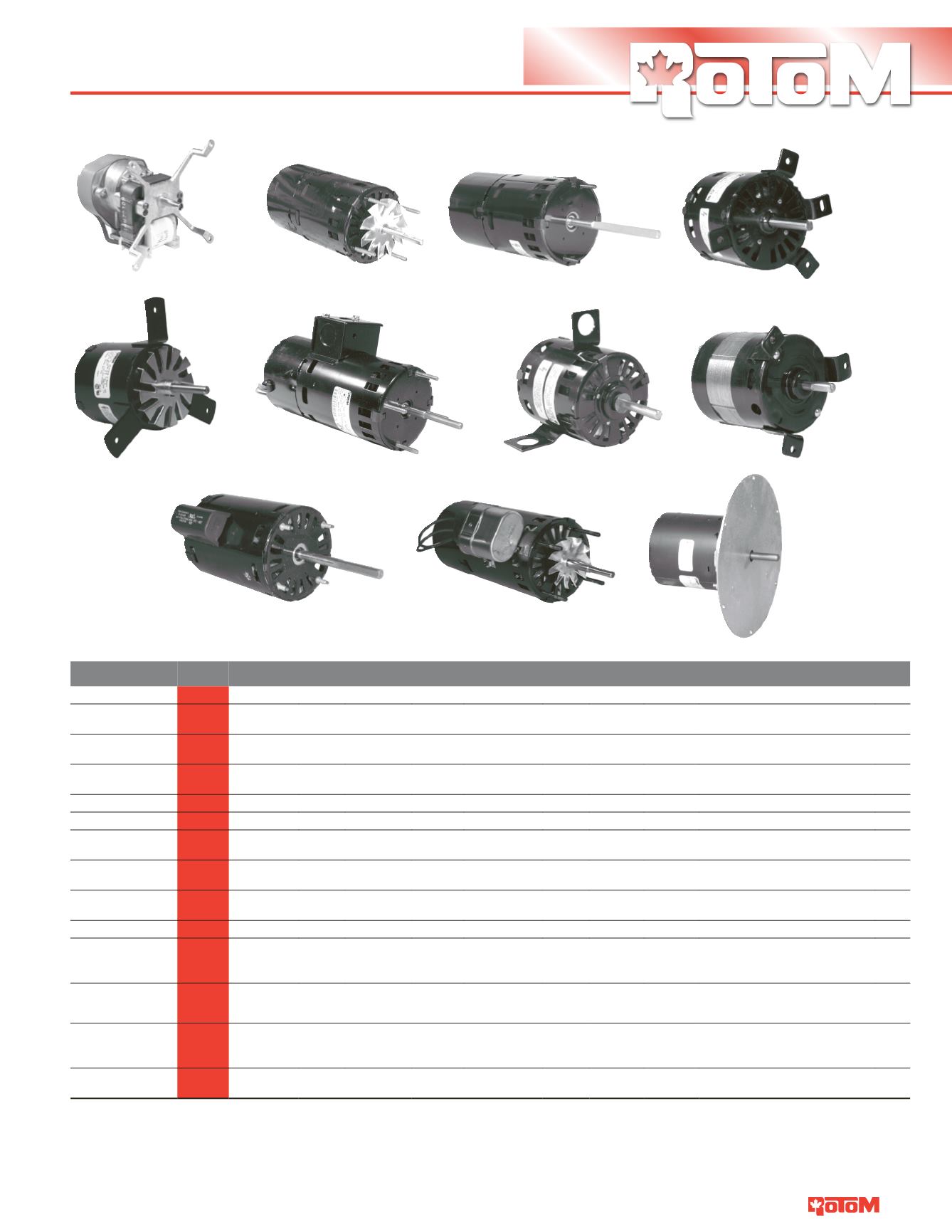

Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)
Fig. 1
Fig. 5
Fig. 6
Fig. 7
Fig. 2
Fig. 3
Fig. 4
Fig. 8
Part #
HP Spd/RPM Amps Volts Rot
Shaft
Body Type Mntg
Cross
Fig
FM-RFM504
1/200
1/3000 0.25 208/230 C.C.W. 0.8"x1/4" 4.90 S.P.
4 LEG
Keeprite 504015K
1
FM-RFM461
1/40
1/3200 0.37 460 C.C.W. 2.5"x1/4" 5.80 S.P.
4 STUD
York 024-24115-019B
56" leads
2
FM-RFM2
1/35
1/3000 1.30 115/230 C.C.W. 3.9"x5/16" 4.90 S.P.
2 STUD
Franklin 80137,
Fasco D406, D408
3
FM-RFM10
1/35
1/3000 1.30 115/230 C.W. 3.9"x5/16" 4.90 S.P.
2 STUD
E.J. Walsh 8211910172,
Fedders, w/ centrifugal switch
3
FM-RFM1198
1/30
1/3200 1.50 115 C.W. 2.3"x5/16" 3.40 S.P.
LUGS
Lennox 25J1201
4
FM-RFM890
1/25
1/3200 0.70 208/230 CCW 2.3"x5/16" 3.29 S.P.
STUD
Lennox 98G8901, 7121-7091
5
FM-RFM5
1/20
1/3000 1.80 115/230 C.C.W. 2.3"x1/4" 5.30 S.P.
4 STUD
Fedders S1900047003,
U.E. 570
6
FM-RFM4
1/20
1/3000 1.80 115/230 C.W. 2.3"x1/4" 5.30 S.P.
4 STUD
Carrier HC24AU700,
U.E. 571
6
FM-RFM580*
1/20
1/3300 1.90 115 C.C.W. 1.9"x5/16" 3.50 S.P.
LUGS
HC27VE120, Univ. JAP053N,
Bryant P251-2307, U.E. 580
7
FM-RFM11*
1/20
1/3200 1.80 115 C.C.W. 1.5"x5/16" 3.60 S.P.
3 LUGS
Clare Bros. M045
8
FM-RFM653
1/20
1/3430 1.00 230/460 C.W. 2.1"x1/4" 5.90 S.P.
4 STUD
Carrier, York, Keeprite U653
Fasco 7131-0506,
5/16 Bushing
6
FM-RFM462
1/16
1/3450 0.30 460 C.W. 3.3"x5/16" 4.80
PSC/
INC
4 STUD
ICP 1171347
Carrier HC30GB460
9
FM-RFM680
1/16
1/3450 1.00
115/208
/230
REV.
PLUG
1.2"x1/4" 7.00
PSC/
INC
4 STUD
York 024-24115-001, 701,
Carrier HC680001B,
w/switch
10
FM-RFM12*
1/15
1/3000 2.00 115 C.C.W. 1.3"x5/16" 4.40 S.P.
3 LUGS
M046 - Clare
High Efficiency
11
* Note: Without Centrifugal Switch
Fig. 9
Fig. 10
Fig. 11
Flue Exhaust Motors
