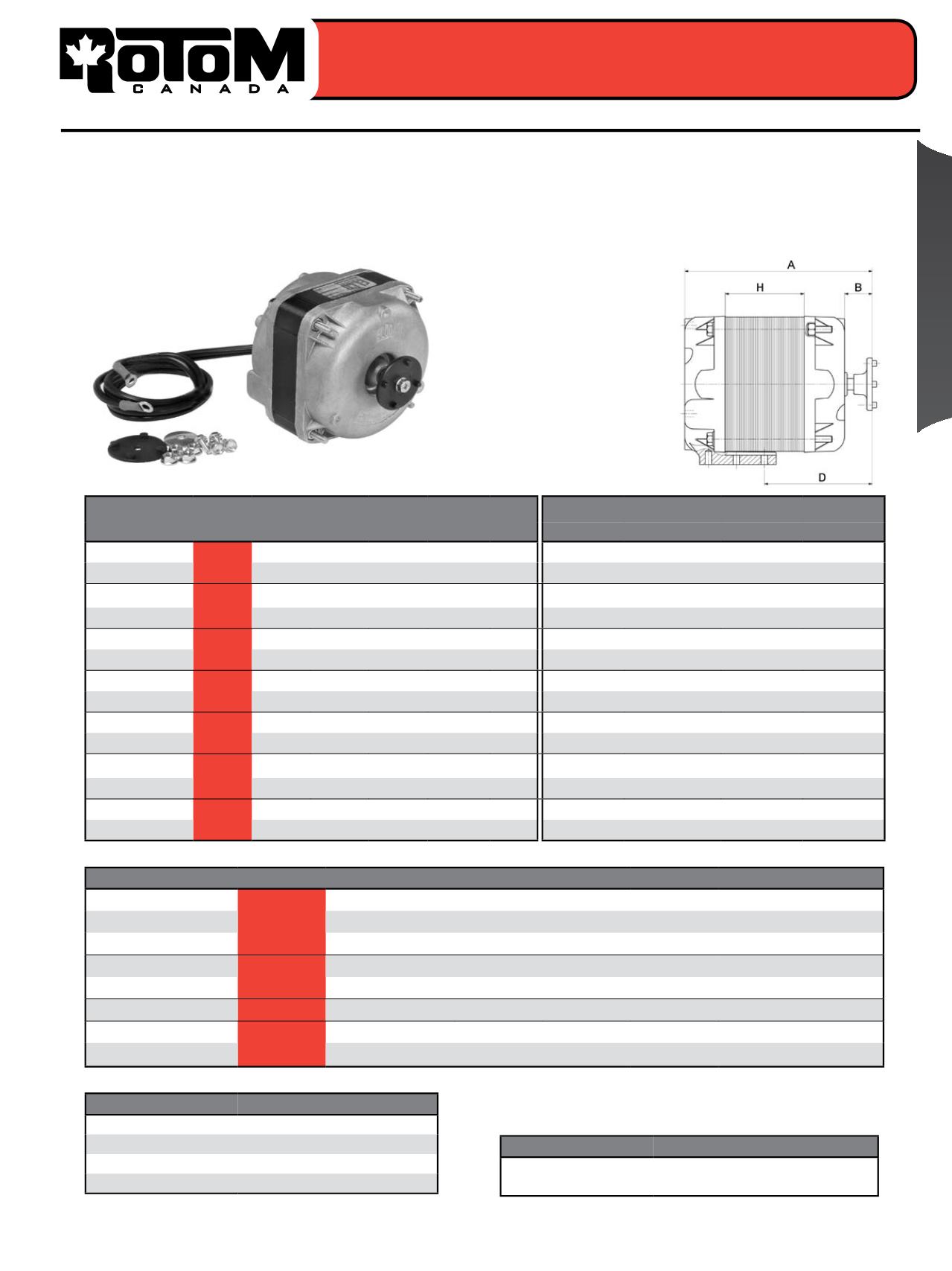

21
Rotation determined opposite shaft end
Double shaft determined at lead end
Shaft length measured from hub
face to shaft end
Motors
Elco Motors & Components
Elco Motors & Components
ELCO Fan Blades
Part #
Motor
Diameter: mm (")
Pitch
Blades Application Constuction
EC-4VEA012
4 & 5W
154 (6.06")
28°
5
Suction
Plastic
EC-4012309
154 (6.06")
19°
5
Suction
Aluminum
EC-4012543
172 (6.77")
28°
5
Blower
Aluminum
EC-4VEA009
6 & 9W
200 (7.87")
28°
5
Suction
Plastic
EC-4VEA010
200 (7.87")
34°
5
Suction
Plastic
EC-4VEA013
9W
230 (9.05")
25°
5
Suction
Plastic
EC-4VEA006
16W
230 (9.05")
31°
5
Suction
Plastic
EC-4VEA007
254 (10.0")
28°
5
Suction
Plastic
Notes: Imp. = Impedance. - TH. = Thermal Protection
ELCO Fan Guards
Part #
Description
EC-1055223
Plastic, 7.87" Dia.
EC-1055224
Plastic, 10" Dia.
EC-1055318
Metal, 9.05" Dia
EC-1055303
Metal, 10" Dia.
ELCO Brackets
Part #
Description
EC-EUBKT01
Bracket for US style Elco
Motors
ELCO Motors
Part #
Watts HP RPM Volts Amps Prot.
Dimensions: mm (")
H
A
B
D
EC-4W115
4
1/185 1550 115 0.36 Imp.
13 (.51") 71.5 (2.82") 12.5 (.49") 42 (1.65")
EC-4W230
1/185 1550 230 0.18 Imp.
13 (.51") 71.5 (2.82") 12.5 (.49") 42 (1.65")
EC-5W115
5
1/150 1550 115 0.40 TH.
13 (.51") 71.5 (2.82") 12.5 (.49") 42 (1.65")
EC-5W230
1/150 1550 230 0.20 TH.
13 (.51") 71.5 (2.82") 12.5 (.49") 42 (1.65")
EC-6W115
6
1/125 1550 115 0.41 Imp.
20 (.79") 77.5 (3.05") 12.5 (.49") 48 (1.89")
EC-6W230
1/125 1550 230 0.20 Imp.
20 (.79") 77.5 (3.05") 12.5 (.49") 48 (1.89")
EC-9W115
9
1/83 1550 115 0.58 TH.
20 (.79") 77.5 (3.05") 12.5 (.49") 48 (1.89")
EC-9W230
1/83 1550 230 0.35 TH.
20 (.79") 77.5 (3.05") 12.5 (.49") 48 (1.89")
EC-16W115
16
1/47 1550 115 1.0 TH.
30 (1.18") 91.5 (3.6")
16 (.63") 62 (2.44")
EC-16W230
1/47 1550 230 0.5 TH.
30 (1.18") 91.5 (3.6")
16 (.63") 62 (2.44")
EC-25W115
25
1/30 1550 115 1.5 TH.
45 (1.77") 106.5 (4.19") 15.5 (.61") 61 (2.4")
EC-25W230
1/30 1550 230 0.75 TH.
45 (1.77") 106.5 (4.19") 15.5 (.61") 61 (2.4")
EC-34W115
34
1/20 1550 115 1.6 TH.
45 (1.77") 106.5 (4.19") 15.5 (.61") 61 (2.4")
EC-34W230
1/20 1550 230 0.8 TH.
45 (1.77") 106.5 (4.19") 15.5 (.61") 61 (2.4")
Totally Enclosed - Shaded Pole - 115, 230 Volts
Features
• Shaded pole
• 4 Pole
• Totally Enclosed
• 50/60 Hz
• Long Life Lubricated Sintec Sleeve-Bearings
• Duty: Continuous Air-over. Operation: All Angle
• Rotation: CW Opposite Shaft End
• Cord: 21"/23" Lead Length With #10 Ring Studs
• Mounting: 1 Foot, Front Shroud, Tapped Rear 3-Hole
• Included: Nuts, Screws & Fan Blade Adapter
SLEEVE
BEARING
