Rotation determined opposite shaft end
Double shaft determined at lead end
Shaft length measured from hub
face to shaft end
Motors

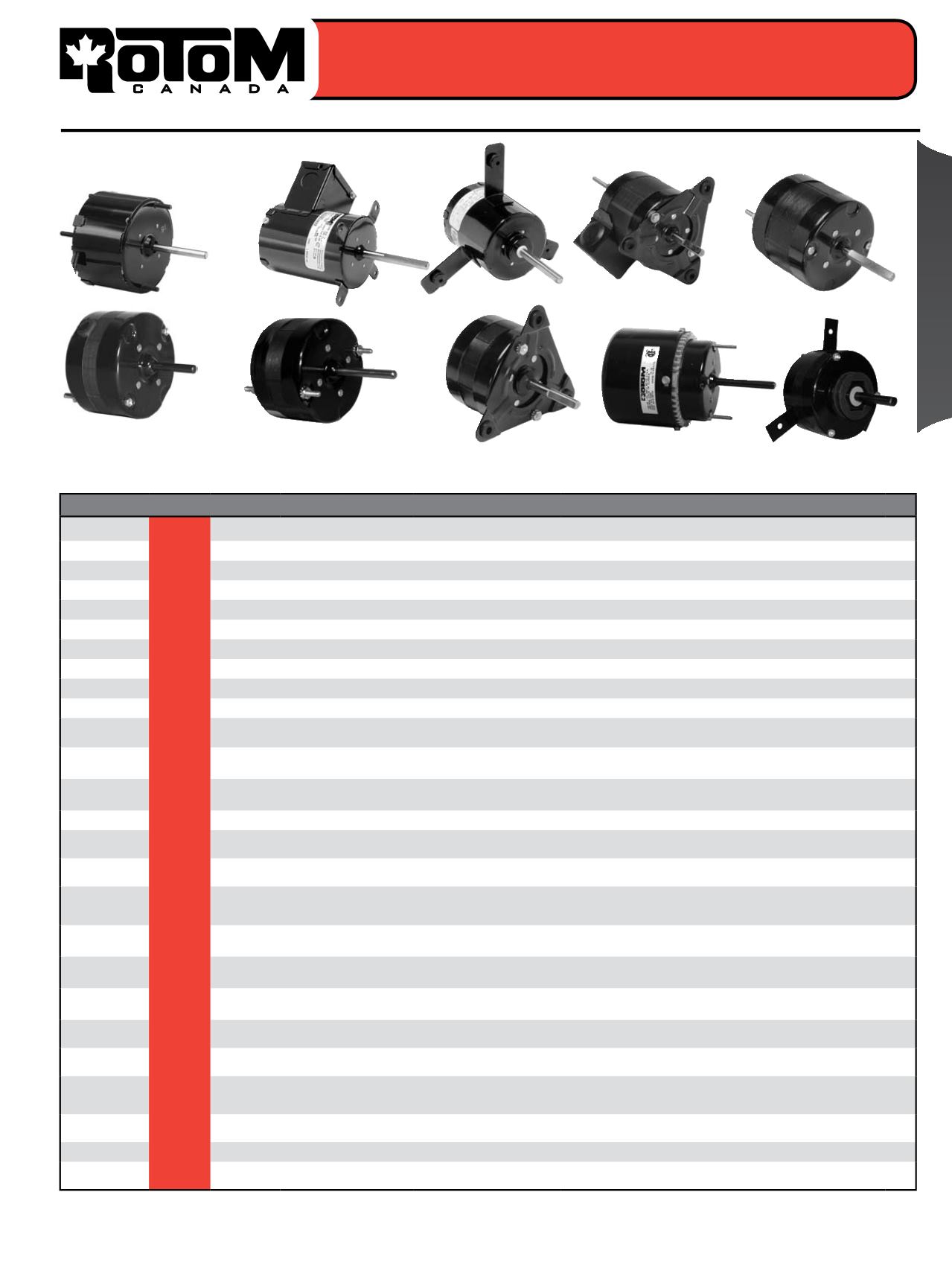

3.3" Motors
3.3" Motors
Fig. 1
R90016
R90017
R90020
R90021
Fig. 2
R373
Fig. 3
R348
Fig. 4
R213
Fig.5
R219
R220
R266
Fig.9
R450
R485
Fig.10
R91189
Totally Enclosed - Single Shaft
Sleeve Bearing - Shaded Pole & P.S.C.
1550 RPM-115, 208, 230 Volt
Part # Amps
Volts HP Rot
Shaft
Body
Features
Comment
Fig.
R90021
0.80
115 1/50 CW 2.24"x1/4" 2.44
4 studs front & rear
21, D125, 40125, 3M661
1
R90020
0.80
115 1/50 CCW 2.24"x1/4" 2.44
4 studs front & rear
20, D124, 40124, 3M554
1
R90017
0.60
115 1/80 CW 2.24"x1/4" 2.14
4 studs front & rear
17, D123, 40123
1
R90016
0.60
115 1/80 CCW 2.24"x1/4" 2.14
4 studs front & rear
16, D122, 40122
1
R207
0.80
115 1/70 C.W.
1.5"x1/4" 2.00
Cord & plug
Nutone
6
R203
0.80
115 1/70 C.C.W.
1.5"x1/4" 2.10
Cord & plug
Threaded shaft
6
R267
0.80
115 1/50 C.W.
1.5"x5/16" 2.25
Cord & plug
Reversomatic
6
R201
0.85
115 1/50 C.W.
2.3"x1/4" 2.20
1430 RPM
Camco/Nutone
7
R404
0.85
115 1/50 C.C.W. 1.8"x5/16" 2.48
Triangular Brk.
Clawsey Sohrt
8
R209
0.87
115 1/45 C.W.
1.5"x5/16" 2.30
Cord & plug
Nutone/Broan
7
R235
0.90
115 1/80 C.C.W.
1/4"x1.1" 2.35
C-ring groove, 1050 RPM
W.C.Woods
7
R373
0.90
115 1/15 C.C.W.
3.3"x3/8" 4.50
PSC/Cap. inc., 1400
RPM
Dayton greenhouse motor 2
R236
1.00
115 1/50 C.C.W.
1.1"x1/4" 2.25
C ring groove,Two speed,
1575 RPM
W.C.Woods
7
R218
1.00
115 1/40 C.C.W.
1.9"x1/4" 2.60
18" Leads
Gen. Replacement
7
R202
1.00
115 1/40 C.W.
1.3"x1/4" 2.50
Two speed plug
Nutone
6
R208
1.00
115 1/40 C.W.
1.9"x1/4" 2.60
2 studs front & rear
Gen. Replacement
6
R262
1.00
115 1/40 C.W.
1.5"x5/16" 2.40
Cord & plug
Reversomatic
7
R348
1.12
115 1/15 C.C.W.
3.4"x3/8" 4.10
PSC/inc., 3 ears, two
speed
Vanee HRV M1703
3
R485
1.27
230 1/15 C.W.
2.0"x5/16" 4.50
Mechanical Duty,
1280 RPM, two speed
Gen. Replacement
9
R1164
1.30
115/230 1/25 C.C.W. 2.4"×5/16" 2.75
4 studs front & rear
431, 432, D1164,
2868-513-419
7
R450
1.35
115 1/25 C.C.W. 2.5"x5/16" 4.25
Mechanical Duty
Gen. Replacement
9
R213
1.40
115 1/25 C.C.W. 1.7"x5/16" 3.10
Triangular Brk/Box
Trane/Lincoln/Chromalox 4
R91189
1.6/.8
115
208/230
1/20 CCW 1.65"x5/16" 3.15
3 ears
D1189, 41189
10
R219
1.60
115 1/20 C.W.
2.2"x5/16" 2.80
Cord & plug
Nutone
5
R220
1.60
115 1/20 C.C.W. 1.2"x5/16" 2.80
Cord & plug
Woods, Miami-Carey
5
R266
1.65
115 1/20 C.W.
1.4"x5/16" 2.80
Cord & plug
Reversomatic
5
3.3" Motors continued on next page.
Fig. 6
R202
R203
R207
R208
R267
Fig. 7
R201
R209
R218
R235
R236
R262
R1164
Fig. 8
R404
3.3" Motors continued from previous page
