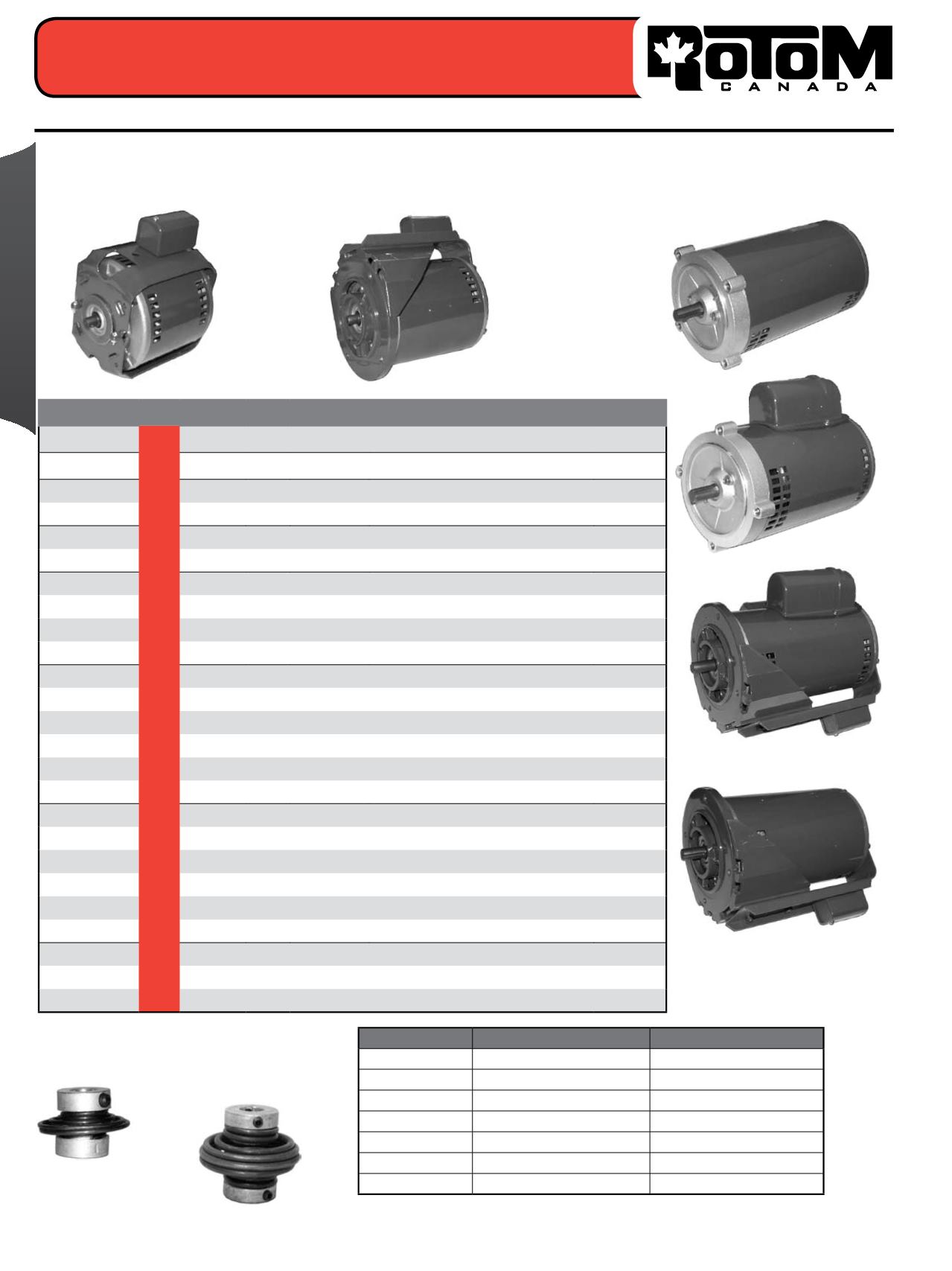

Butt’s Pumps and Motors - page 1543

52
Rotation determined opposite shaft end
Double shaft determined at lead end
Shaft length measured from hub
face to shaft end
Motors
Circulator Pump
Circulator Pump Motors
Circulator Pump
Single Shaft • Single Speed • Sleeve & Ball Bearing • 1725 RPM
115/230/460/575 Volts • Resilient Rings for Base Mount Models • Open Construction • Reversible
Typical Applications :
Hot Water Boiler & Booster Pumps
Part # HP Volts Fig.
Bearing
Armstrong
B & G
CP-R1350
1/12
115
1
Sleeve
805316-010, 831000-61
111034
CP-R1352
1/6
115
1
Sleeve
817025-001, 831001-061
111031
CP-R1354
1/4
115
1
Sleeve
817025-007, 831002-061
111040
CP-R1444
115
2
Sleeve
816141-001
CP-R1356
1/3
115
1
Sleeve
817025-013, 831003-061
111042
CP-R1446
115
2
Sleeve
816141-002
CP-R1359
1/2
115/230 4
Ball
831009-061
111044
CP-R1368
230/460 3
Ball
811757-003, 020, 023, 831011-083 111046
CP-R1369
575
3
Ball
811757-004
111046-5
CP-R1459
115/230 5
Ball
811757-001
111044
CP-R1362
3/4
115/230 4
Ball
831010-062
111047
CP-R1370
230/460 3
Ball
831012-083
111049
CP-R1372
575
3
Ball
811757-006
111049-5
CP-R1462
115/230 5
Ball
811757-002, 033
111047
CP-R1470
230/460 6
Ball
811575-005
111049
CP-R1472
575
6
Ball
811757-005, 024, 027
111049-5
CP-R1363
1
115/230 4
Ball
816676-062
111050
CP-R1371
230/460 3
Ball
816675-069
169090
CP-R1373
575
3
Ball
816676-068
169090-5
CP-R1463
115/230 5
Ball
811757-007, 028, 031
111050
CP-R1471
230/460 6
Ball
811757-008
169090
CP-R1473
575
6
Ball
811757-009, 028, 031
169090-5
CP-R1365
1 1/2
115/230 4
Ball
816678-062
169095
CP-R1374
230/460 3
Ball
816678-069
169092
CP-R1375
575
3
Ball
816685-068
196092-5
Part#
Specification
Description
T6-10010
1/2" × 1/2"
1/2 to 1/3 HP Easy Link
T6-10010SL
1/2" × 1/2"
Spirolink
T6-10023
1/2" × 1/2" or 1/2" × 5/8"
1/2 to 3/4 HP Easy Link
T6-10023SL
1/2" × 1/2" or 1/2" × 5/8"
Spirolink
T6-10034
1/2" × 5/8" or 5/8" × 5/8"
1 HP Easy Link
T6-10034SL
1/2" × 5/8" or 5/8" × 5/8"
Spirolink
T6-10045SL
1/2" × 5/8" or 5/8" × 5/8"
Taco
T6-10010
Illustrated
Easy Links - Spirolink
T6-10034
Illustrated
Sleeve Bearing
Models Feature
Easy Access
Oilers!
Pump Couplers
Fig.1
Fig.2
Fig.3
Fig.4
Fig.6
Fig.5
