49
Rotation determined opposite shaft end
Double shaft determined at lead end
Shaft length measured from hub
face to shaft end
Motors
Belted Fan

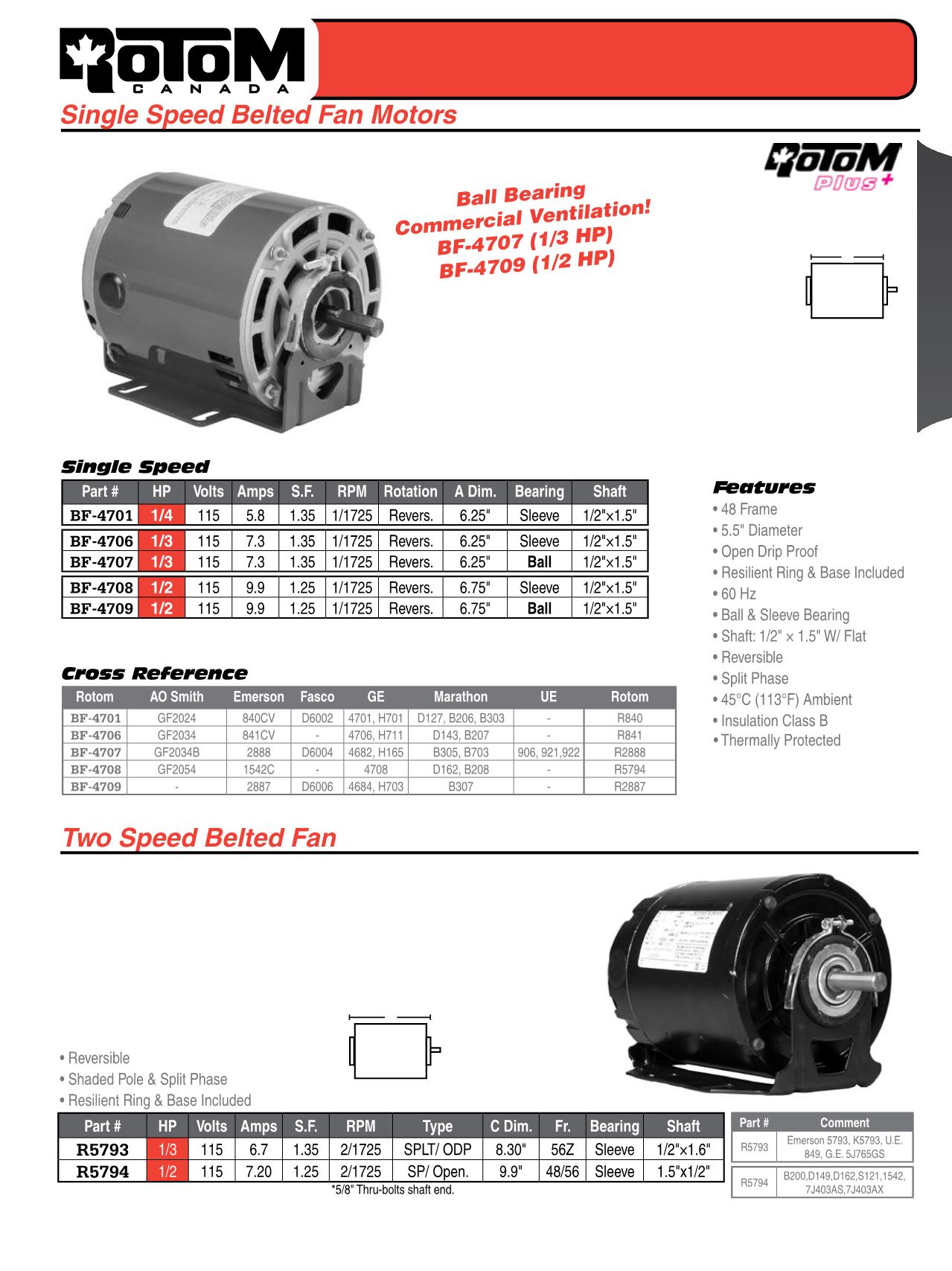

Belted Fan Motors
• Reversible
• Shaded Pole & Split Phase
• Resilient Ring & Base Included
Part #
HP Volts Amps S.F.
RPM Type
C Dim.
Fr.
Bearing Shaft
R5793
1/3
115 6.7 1.35 2/1725 SPLT/ ODP 8.30"
56Z Sleeve 1/2"×1.6"
R5794
1/2
115 7.20 1.25 2/1725 SP/ Open.
9.9" 48/56 Sleeve 1.5"x1/2"
*5/8" Thru-bolts shaft end.
Single Speed
Part # HP Volts Amps S.F.
RPM Rotation A Dim. Bearing Shaft
BF-4701
1/4
115 5.8 1.35 1/1725 Revers.
6.25"
Sleeve 1/2"×1.5"
BF-4706
1/3
115 7.3 1.35 1/1725 Revers.
6.25"
Sleeve 1/2"×1.5"
BF-4707
1/3
115 7.3 1.35 1/1725 Revers.
6.25"
Ball
1/2"×1.5"
BF-4708
1/2
115 9.9 1.25 1/1725 Revers.
6.75"
Sleeve 1/2"×1.5"
BF-4709
1/2
115 9.9 1.25 1/1725 Revers.
6.75"
Ball
1/2"×1.5"
Part #
Comment
R5793
Emerson 5793, K5793, U.E.
849, G.E. 5J765GS
R5794
B200,D149,D162,S121,1542,
7J403AS,7J403AX
Cross Reference
Rotom AO Smith Emerson Fasco GE
Marathon
UE
Rotom
BF-4701
GF2024
840CV D6002 4701, H701 D127, B206, B303
-
R840
BF-4706
GF2034
841CV
-
4706, H711 D143, B207
-
R841
BF-4707
GF2034B
2888
D6004 4682, H165 B305, B703 906, 921,922
R2888
BF-4708
GF2054
1542C
-
4708
D162, B208
-
R5794
BF-4709
-
2887
D6006 4684, H703
B307
-
R2887
C
A
