10
Rotation determined opposite shaft end
Double shaft determined at lead end
Shaft length measured from hub
face to shaft end
Motors
3.3" Motors
3.3" Motors
1550 RPM-115, 208, 230 volts
Part # Amps
Volts H.P.
Rot.
Shaft
Body
Feature
Comment
Fig.
R90189
0.90
230 1/20
CW 2.24"x5/16" 2.75
4 Studs front & rear
D189, 40189
1
R90188
0.90
230 1/20 CCW 2.24"x5/16" 2.75
4 Studs front & rear
D188, 40188
1
R319
0.90
115 1/50 C.C.W.
2.2"x1/4" 2.10
Cord & plug, 1430 RPM Camco/Nutone
2
R340
0.90
230 1/20 C.C.W.
2.0"x5/16" 3.15
2 studs front
G.E.
3
R362
0.90
115 1/45 C.C.W.
2.3"×5/6" 2.25"
4 Studs front & rear
U.E. 26,28, D126,
D130, 2868-507-150
2
R363
0.90
115 1/45
C.W.
2.3"×5/6" 2.25"
4 Studs front & rear
U.E. 27,29, D127,
D131 2868-507-151
2
R360
1.00
115 1/35
C.W.
1.6"x1/4" 2.50
3 studs front
Keeprite 504249
2
R359
1.00
230 1/20 C.C.W.
3.2"x5/16" 3.30
2 Pin plug
Blanchard E1059
1
R1053
1.00
230 1/20 C.C.W.
3.2"x5/16" 3.00
2 Pin plug
Blanchard E1053
1
R499
1.00
115 1/15 C.C.W.
2.3"x5/16" 4.55
PSC (4/370), 4 studs
front, 1625 RPM
Grainger 3M499B 1
R438
1.05
115 1/14
C.W.
1.5"x5/16" 4.25
PSC (4/370), 3 lugs,
1600 RPM, Two speed
Venmar HRV 01038 4
R90027
1.10
115 1/40
CW 2.24"x5/16" 2.44
4 Studs front & rear
27, D127, 40127,
3M544
1
R90026
1.10
115 1/40 CCW 2.24"x5/16" 2.44
4 Studs front & rear
26, D126, 40126,
3M543
1
R409
1.10
115 1/40 C.C.W.
1.5"x5/16" 2.20
20" leads, Ball Bearing Gen. Replacement
5
R291
1.10
115 1/30
C.W 1.6"x1/4" 2.80
3 studs front
Keeprite 1043291
2
R205
1.20
115 1/35
C.W.
1.8"x1/4" 2.50
Trinangular Brk. + cord
& plug.
Keeprite 11796-8
6
R350
1.20
115 1/55
C.W.
1.5"x5/16" 2.85
1050 RPM, Two Speed
Mark Hot
5
R90573
1.20
208/230 1/15 CCW 3.03"x5/16" 3.50
2 Pin plug
573A, D1126,
45008T
7
R90752
1.30
120 1/40
CW 1.3"x1/4" 2.15
1500 RPM
40752
7
R90514
1.30
115 1/30 CCW 2.38"x5/16" 2.69
4 Studs front & rear
D514, 40514
1
R303
1.40
115 1/25 C.C.W.
3.3"x5/16" 3.84
Triangular Brk, Int.Fan,
B/B
Trane Unit Htr.
8
3.3" Motors continued on next page.
3.3" Motors continued from previous page

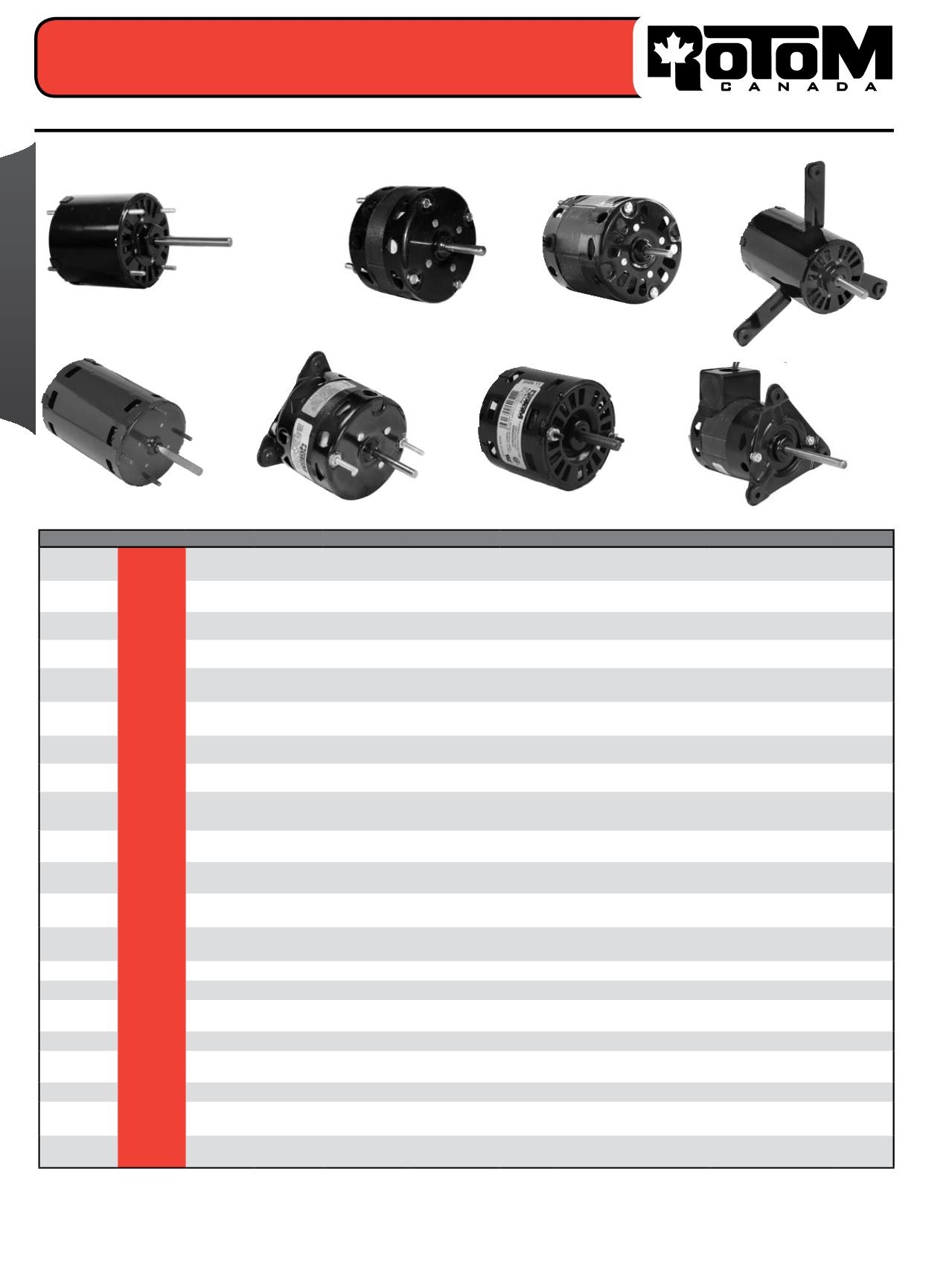

Fig.6
R205
Fig. 2
R291
R319
R360
R362
R363
Fig. 4
R438
Open Construction - Single Shaft
Sleeve & Ball Bearing - Shaded Pole & P.S.C.
Fig.8
R303
R350
R409
Fig. 5
Fig.7
R90573
R90752
Fig. 3
R340
R359
R499
R1053
R90189
R90188
R90026
R90027
R90514
Fig. 1
